Category 6A F/UTP Cable LSZH

Part Code: 10330

Description: High Speed 10G Ethernet F/UTP 500MHz Class EA, LSZH Cable, C6A

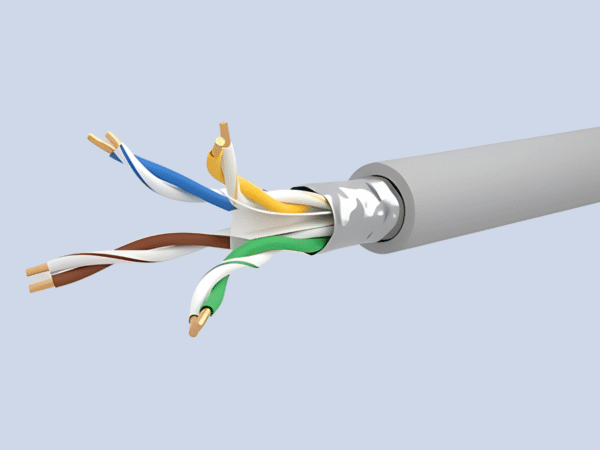

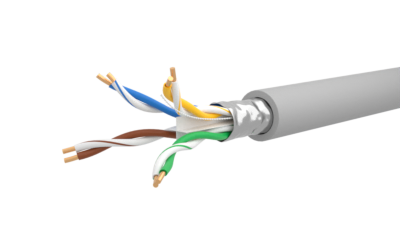

High Speed 10Gigabit Ethernet F-UTP 500 MHz Class EA / Category 6A cable Consists of HDPE Insulated 8 X 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Aluminum/Polyester Tape shielding and LSZH Outer Jacket. It supports 10/100/1000Base-T, 155Mbps ATM, IEEE 802.3an (10GBase-T) Standard.

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.2-D Category 6A & ISO/IEC 11801 Class EA
  • Fire Rating as per IEC 60332-1
  • Full Power Sum Performance
  • Supports 10Gigabit Ethernet to a full 100m up to 500 MHz
  • Excellent Shielding prevents Alien Crosstalk
  • Channel Performance Verified by ETL & UL Listed
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23
Conductor Material: Solid bare Copper
Outer Sheath: LSZH
Overall cable diameter: 7.3±0.3mm
Operating Temperature: −20ºC to +75ºC
Storage Temperature: −20ºC to +75ºC
