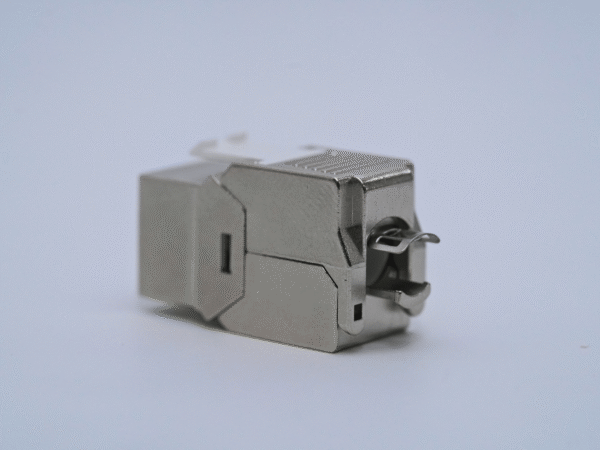

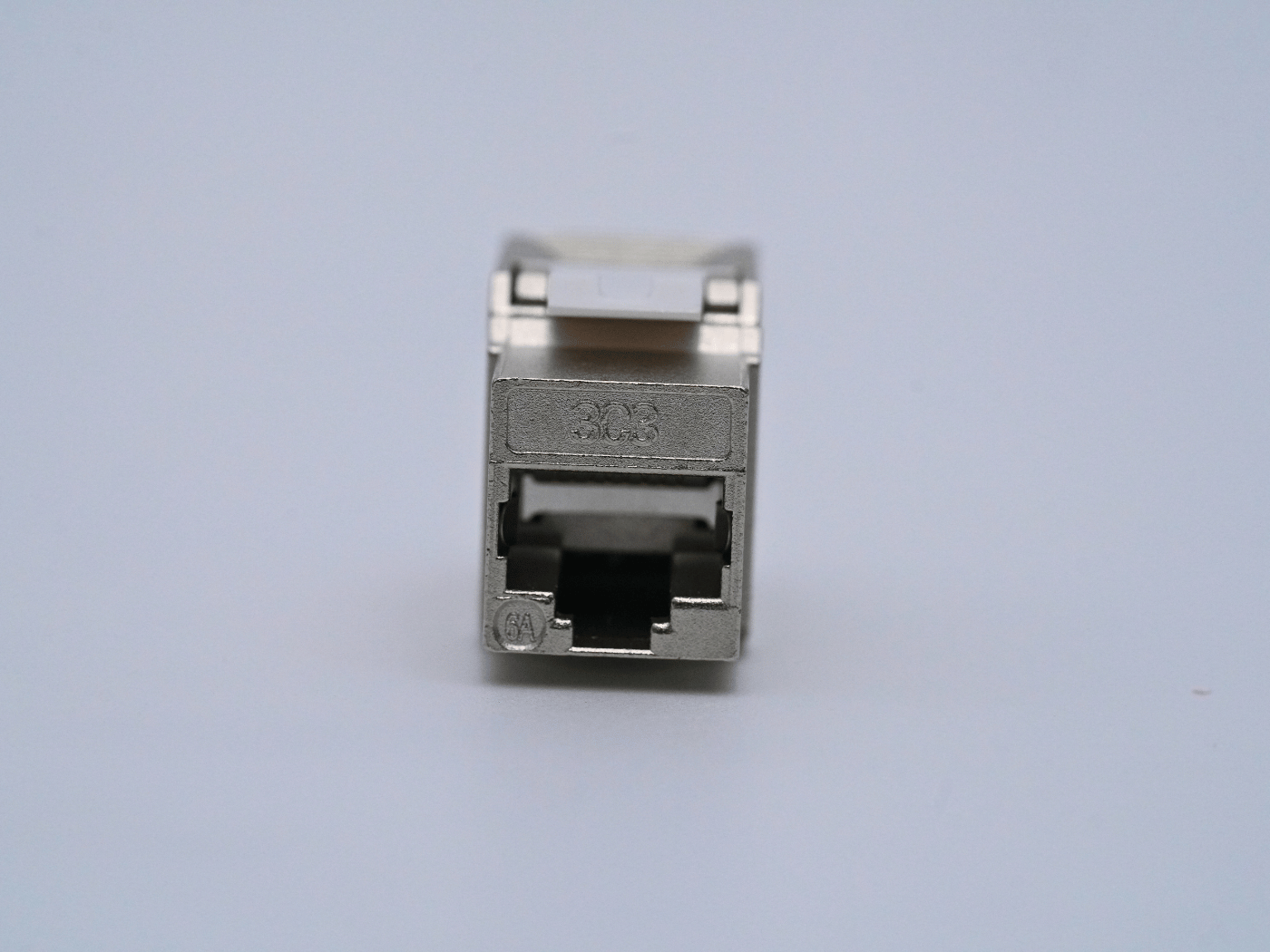

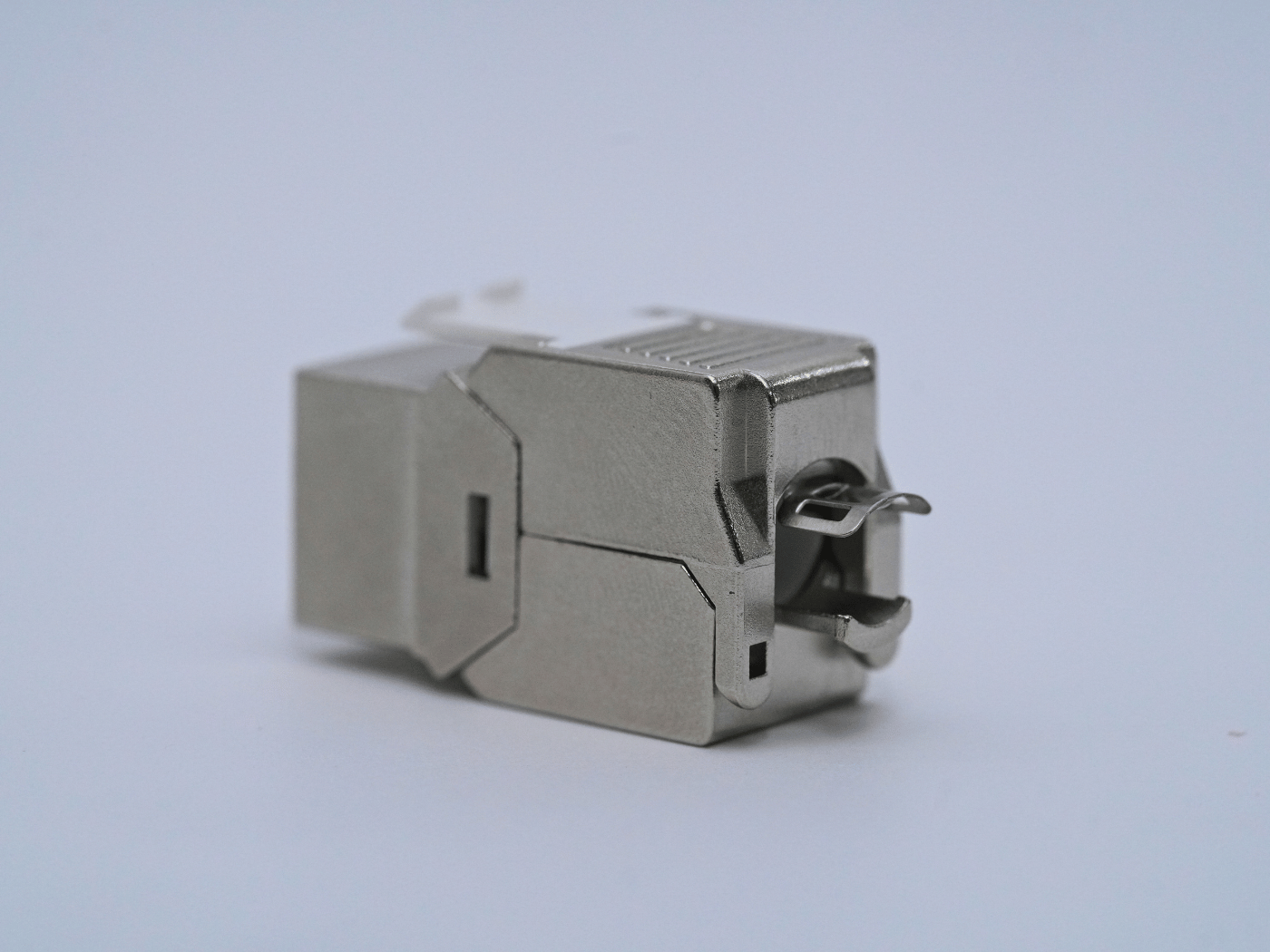

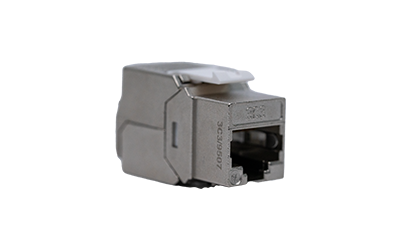

Category 6A Shielded Keystone Outlet

Part Code: 12319

Description: Toolless Keystone Shielded Outlet, 180DG C6A

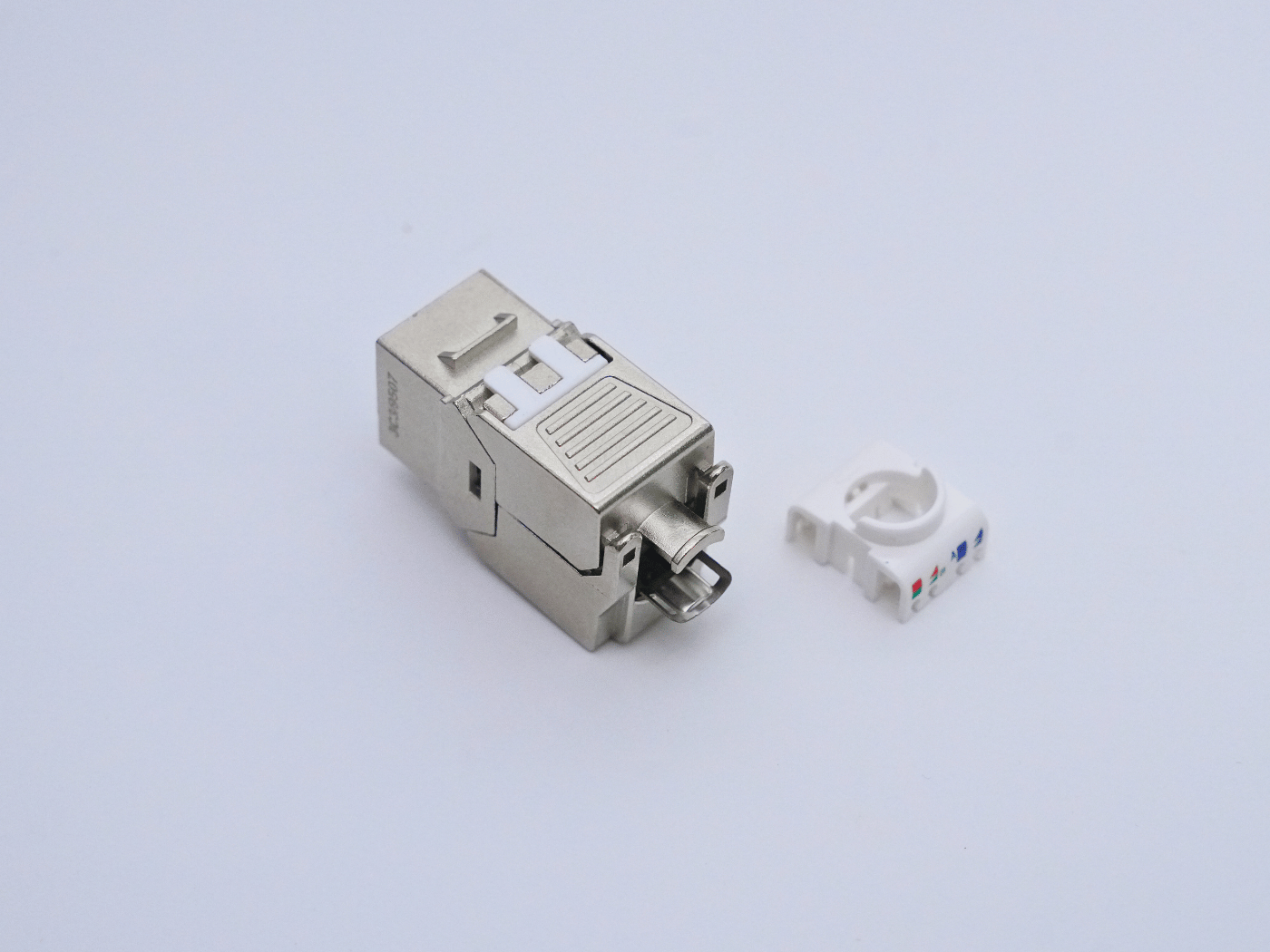

Cat6A Keystone Shielded Outlet 180°, RJ45 conforms to Class EA performance with small form design, they are perfect for high-density applications. Each jack is available with a 180° termination design, wiring diagram and conductor protection cap.

Download Data Sheet

Features

  • Complies to ANSI/TIA 568.2-D, IEC/ISO 11801 & IEC 60603-7-41
  • No punch down tool required for installation
  • 180-degree design.
  • Die-cast housing provide EMI, RFI and excellent AXT suppression.
  • Provides excellent suppression of internal magnetic coupling up to bandwidth of 500MHz.
  • Covered under 3C3® Performance Warranty

Specifications

Type: Shielded
Shield Material: Zinc alloy
Design: 180 Degree
Wiring Pattern at rear end: T568A & T568B
Operating Temperature: −10ºC to +60ºC
Storage Temperature: −40ºC to +68ºC
