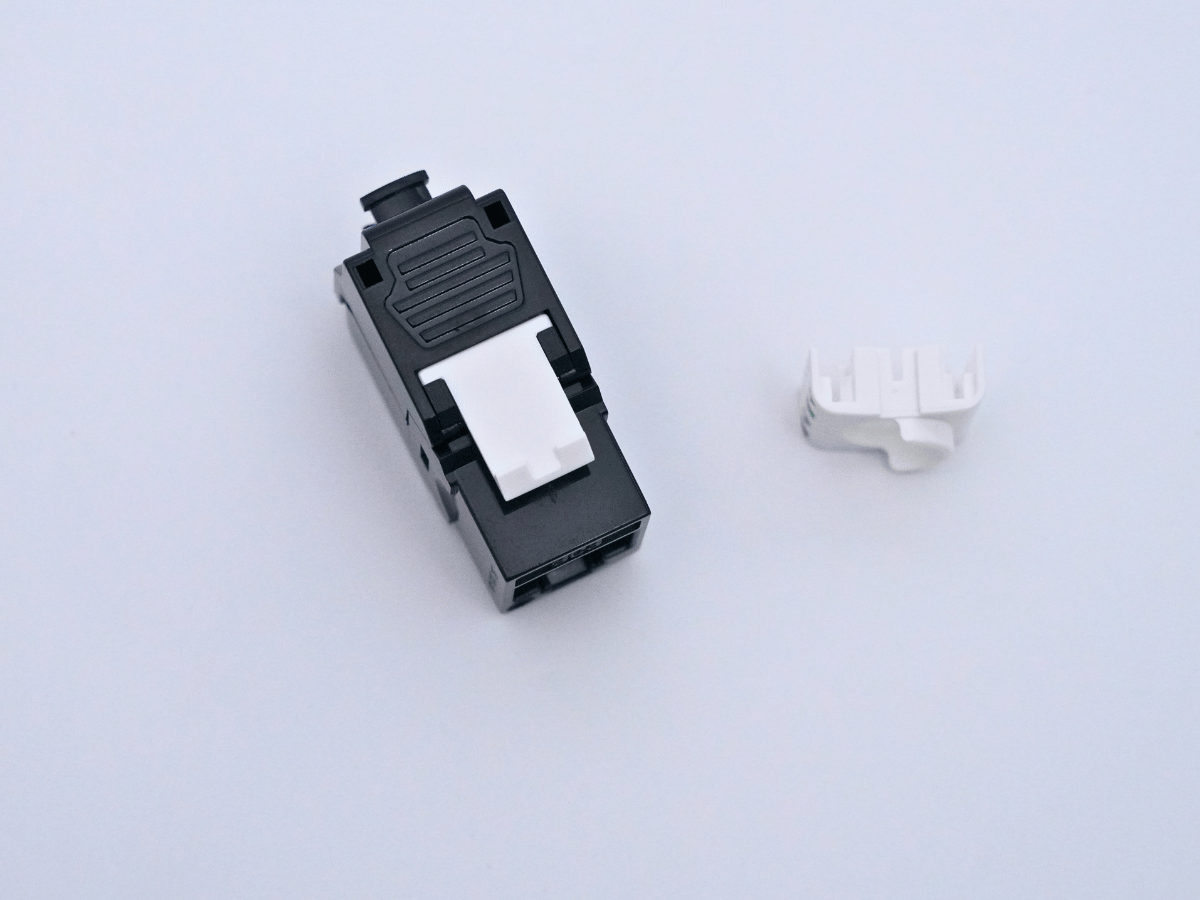

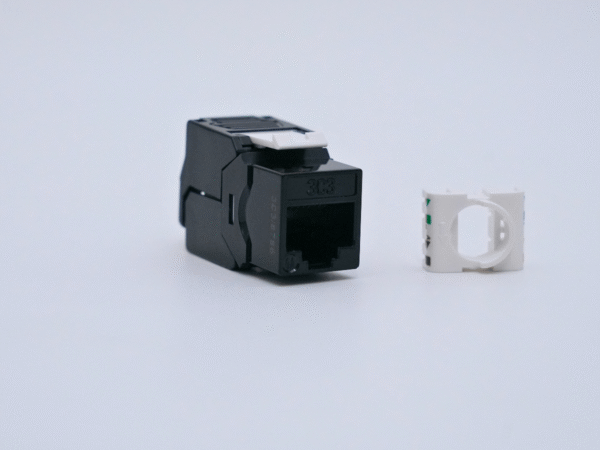

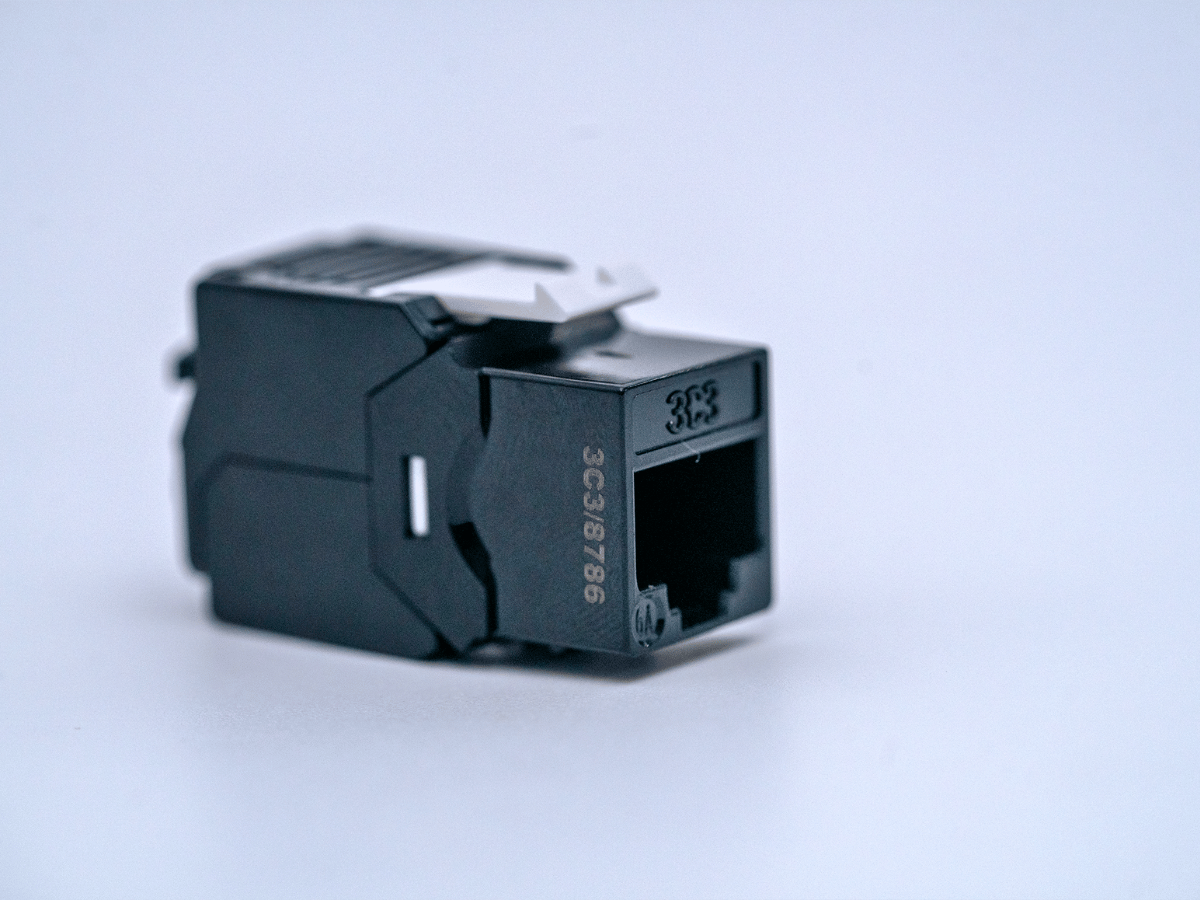

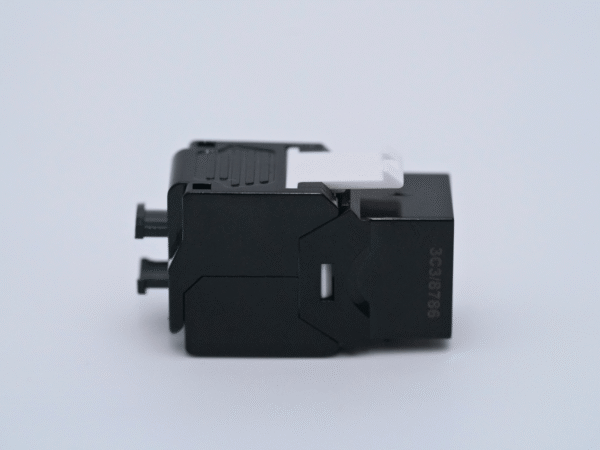

Category 6A UTP Keystone Outlet

Part Code: 12364 & 12366

Description: Toolless Keystone Unshielded Outlet 180DG C6A, White & Black

Category 6A UTP RJ45 keystone jacks conform to class EA performance, with small form design, they are perfect for high-density applications. Each jack is available with a 180° termination design, wiring diagram and conductor protection cap.

Download Data Sheet

Features

  • Complies to ANSI/TIA 568.2-D, IEC/ISO 11801 & IEC 60603-7-41
  • Small form RJ45 foot print design
  • No punch down tool required for installation
  • 180-degree termination
  • Wiring diagram and conductor cap supplied
  • Direction marks on the side of the Keystone Jack
  • Covered under 3C3® Performance Warranty

Specifications

Type: Unshielded
Design: 180 Degree
Wiring Pattern at rear end: T568A & T568B
Operating Temperature: −10ºC to +60ºC
Storage Temperature: −40ºC to +68ºC
