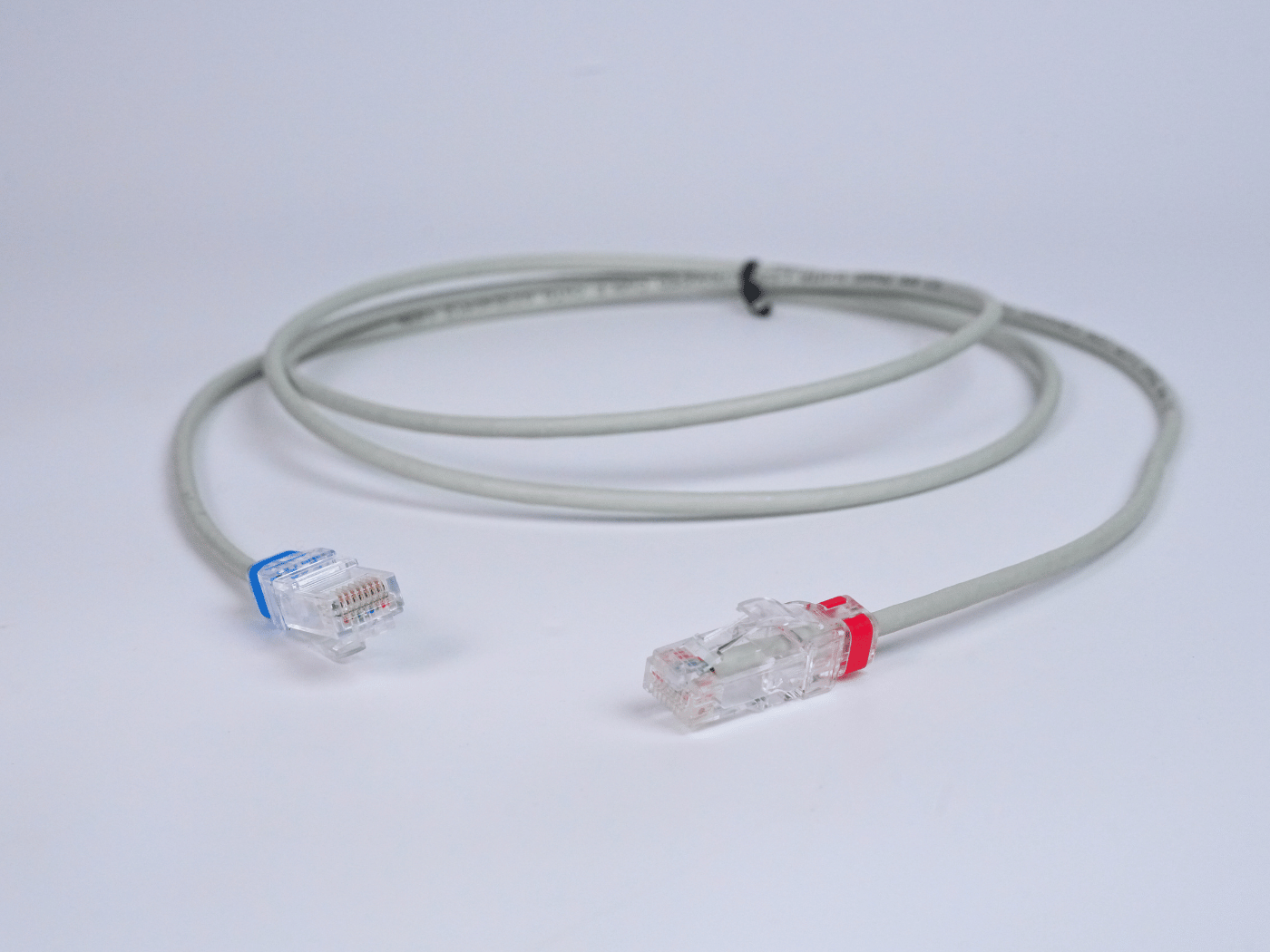

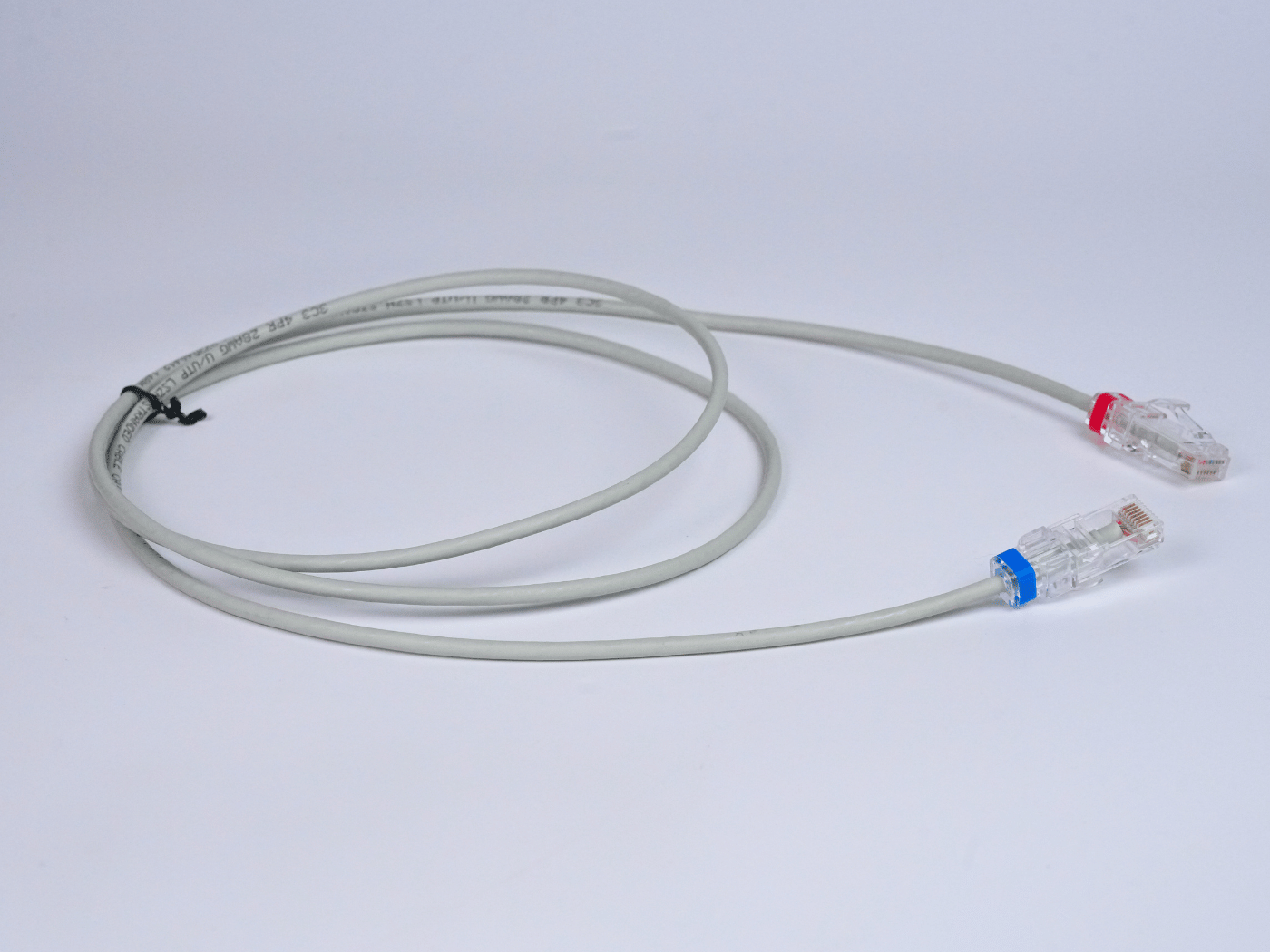

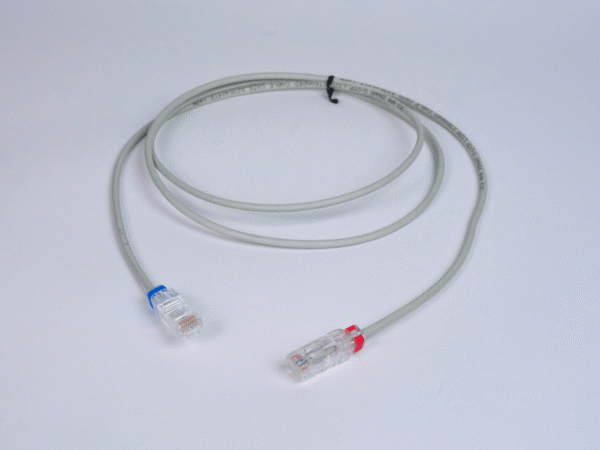

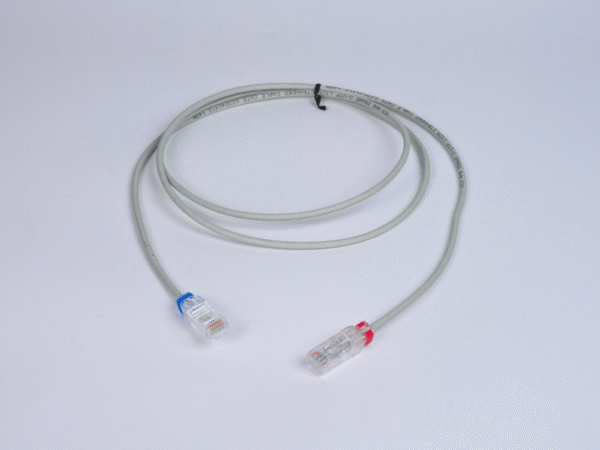

Copper Color changeable clip Slim Patch Cord, C6A

Partcode: 8597E-XXXX

Description: High Speed Gigabit 28AWG UTP Color changeable clip Slim Patch Cord, LSZH, C6A, Grey with Blue Clip

Category 6A Slim changeable color coding clip Patch Cords design provides a reduced diameter profile which offers a perfect solution for high density patching applications that require a smaller and more flexible cable. Changeable color-coding clip patch cords offer a convenient and customizable solution for visually identifying and organizing network connections These high performance components available in broad range of lengths. They are designed to meet Category 6 specifications. Conductors are securely mated with unshielded RJ45 plug design to deliver superior performance. These cables support data rates up to 1Gbps for demanding high – speed voice, video and data applications.

Features

  • Quality 28 AWG Stranded flexible cable
  • High Grade 50m Gold Plated RJ45 connectors
  • A 38% smaller cross sectional area and a 33% reduction in weight
  • Color changeable clips
  • Soft Latch-cover design for easy depression
  • RoHS Compliant
  • Channel Performance verified by ETL
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 28

Cable Diameter: 3.9 ± 0.2mm

Conductor Material : Stranded bare Copper

Type of Cable: U/UTP

Jacket Type: LSZH

Storage Temperature : −25ºC to +60ºC

Operating Temperature : −25ºC to +60ºC
