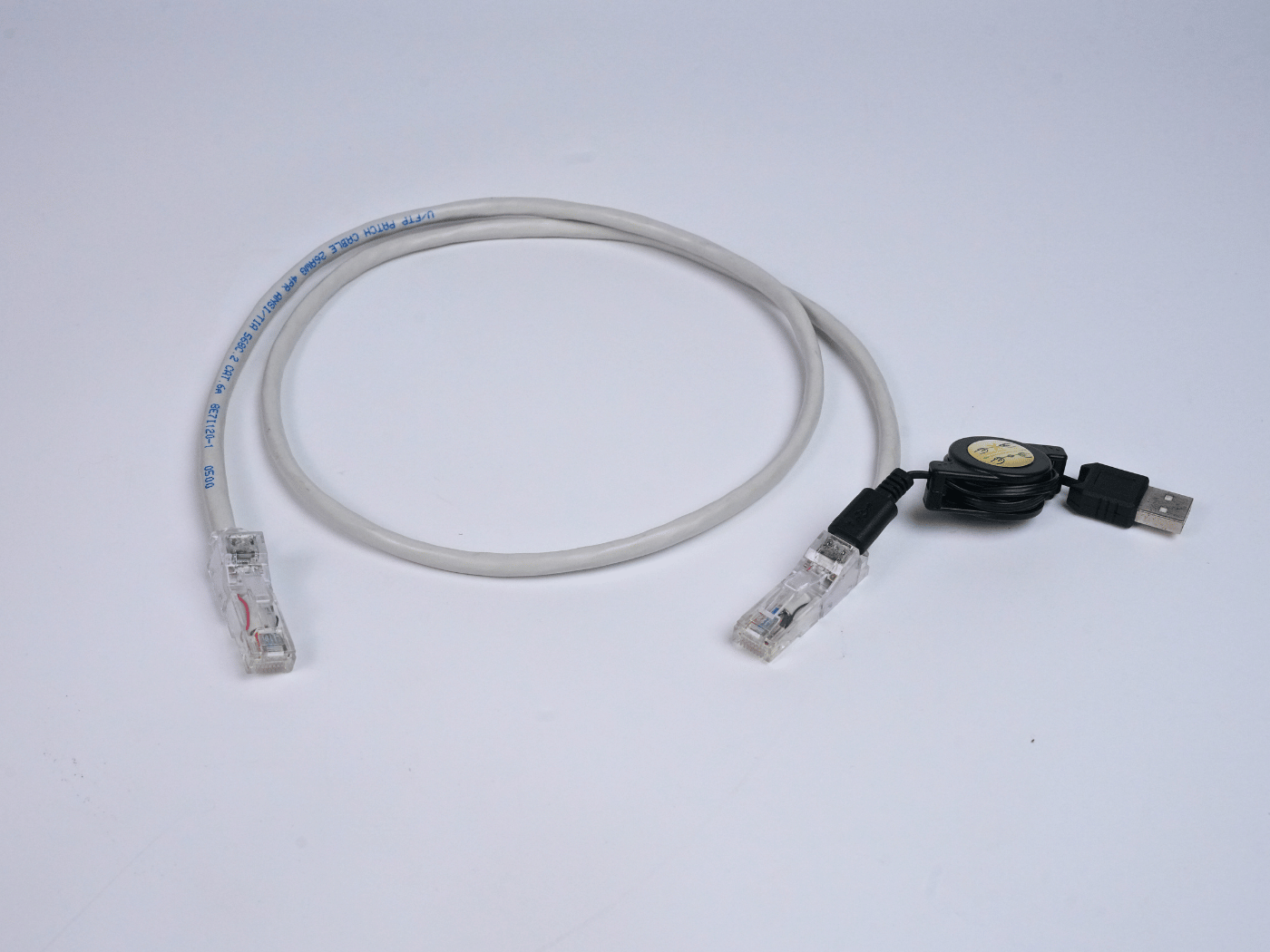

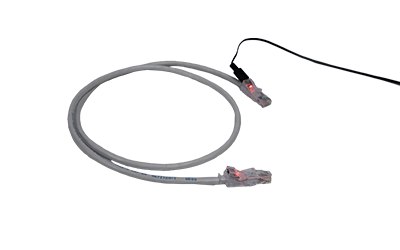

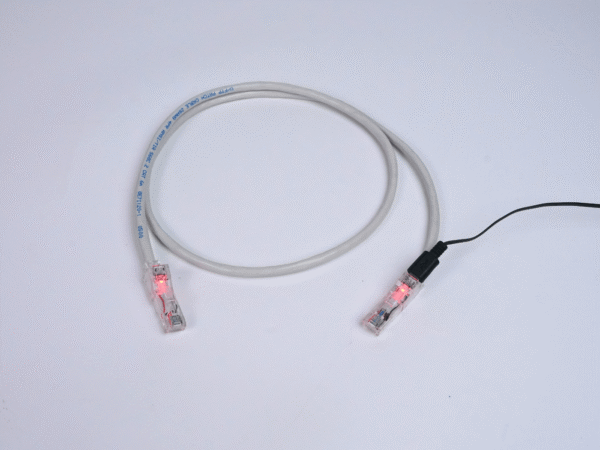

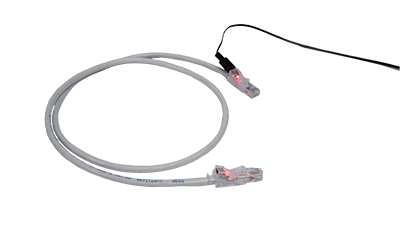

Copper Tracable Patch Cord

Partcode: 17551–0300

Description: High Speed Gigabit 26AWG Traceable Patch Cord Grey, LSZH, C6, 3M

Category 6 traceable Patch Cords feature a highly efficient, bright LED which enables to identify the Patch Cord in no time. These Traceable Patch Cord’s LED Light is powered by Micro –USB (No more hand tracing). Dramatically reduces downtime by providing instant cable identification for efficient mistake resolution and maintenance.

Download Data Sheet

Features

  • Complies to IEC 61156-6 Standard
  • Quality 26 AWG Standards flexible cable
  • High Grade 50m Gold Plated RJ45 connectors
  • Injection Molded boot/Strain Relief Boot for improved strain relief-available as option

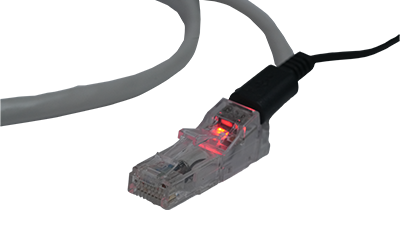

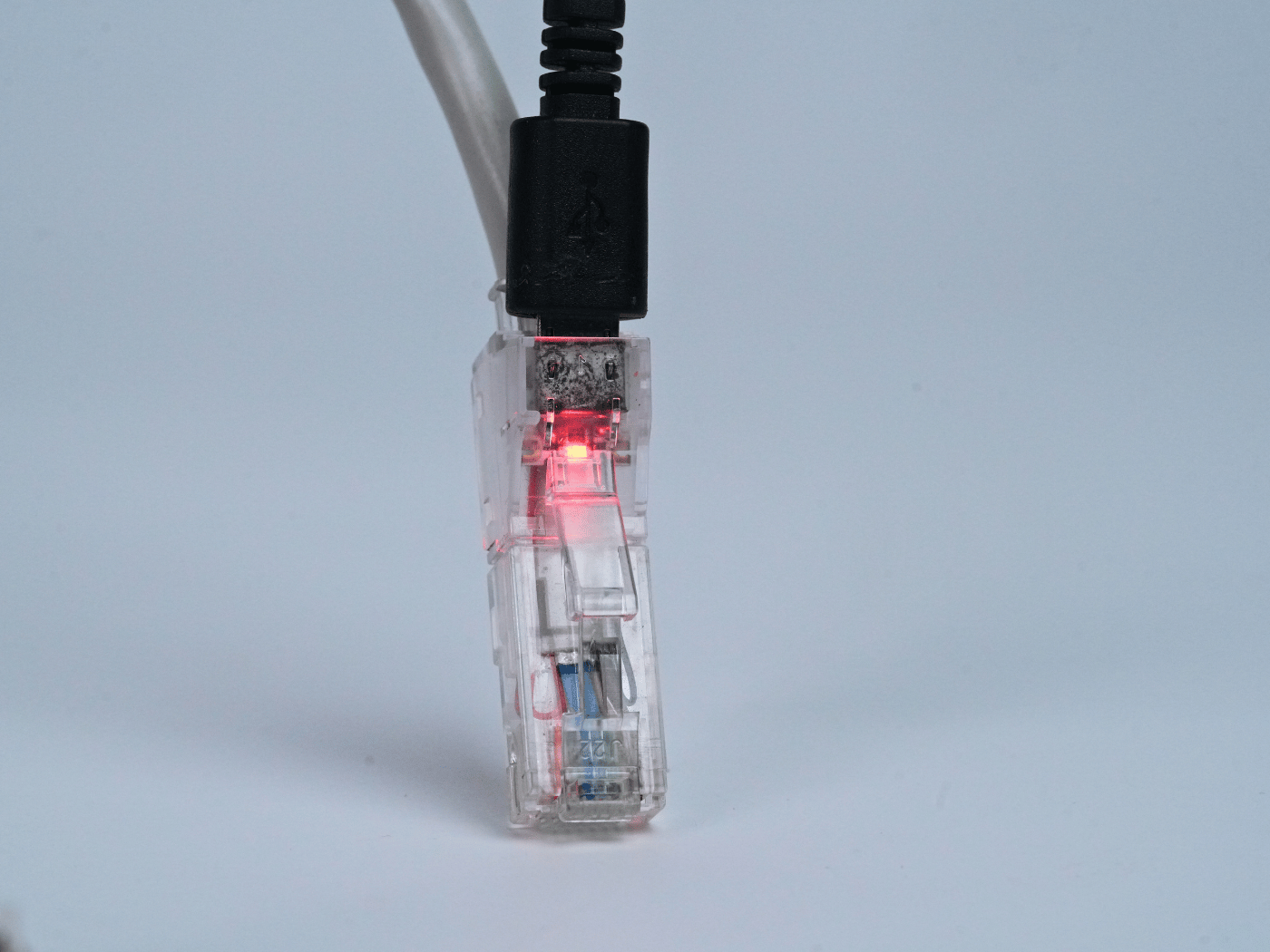

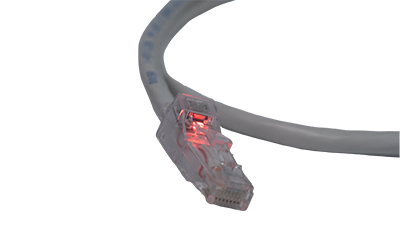

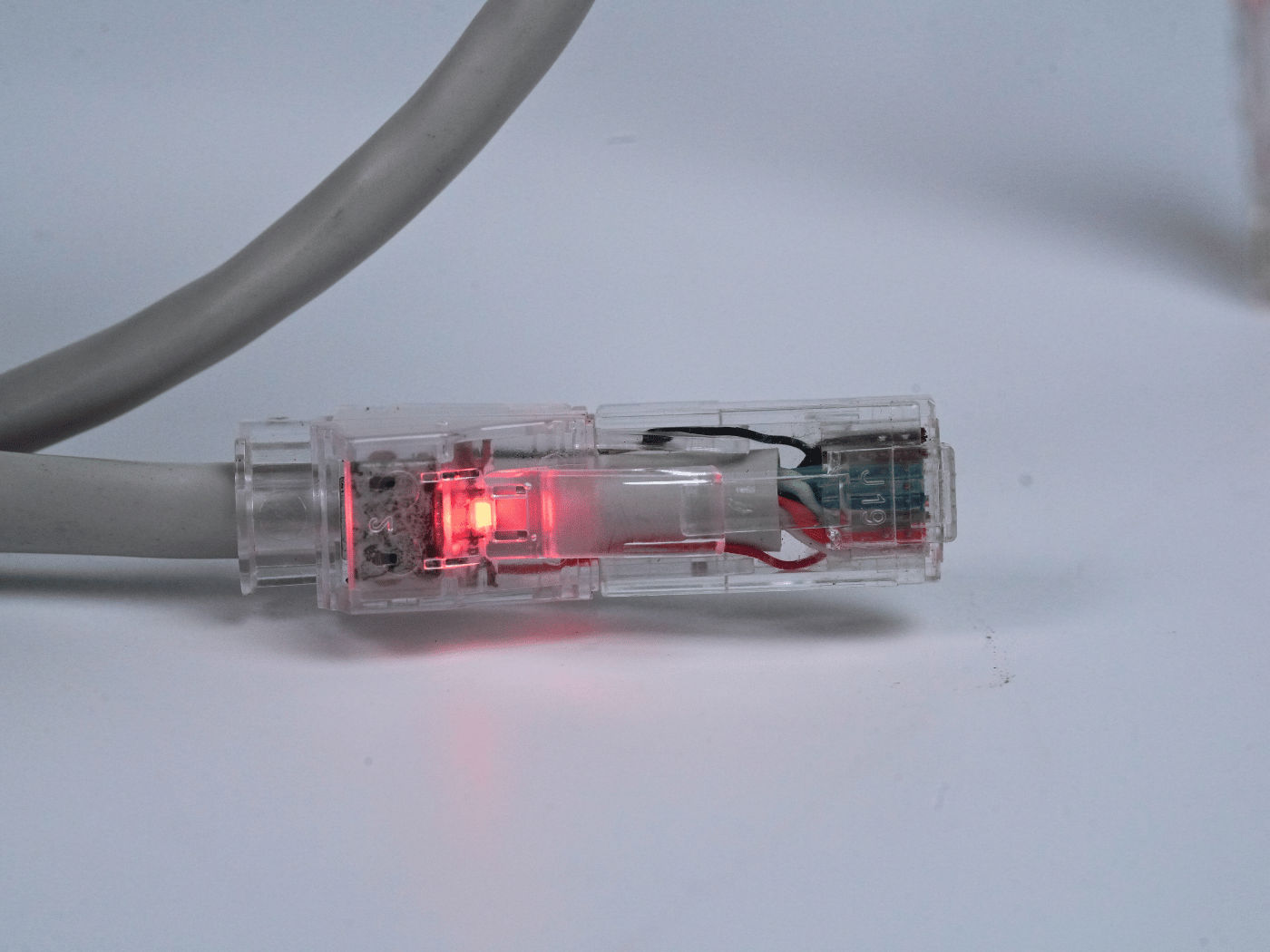

  • Bright Traceable LED Light
  • Soft Latch-cover design for easy depression
  • Traces Cables instantly in complex wiring systems
  • Backward compatible with Cat5e for easy integration with any network component that uses a RJ45 connection
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 26

Cable Diameter: 6.23 ± 0.3mm

Conductor Material : Solid Bare Electrolytic Grade Copper

Jacket Type: LSZH

Storage Temperature : −20ºC to +70ºC

Operating Temperature : −10ºC to +60ºC
