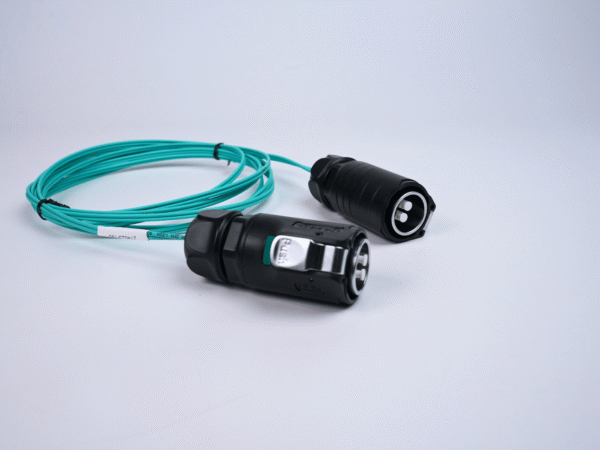

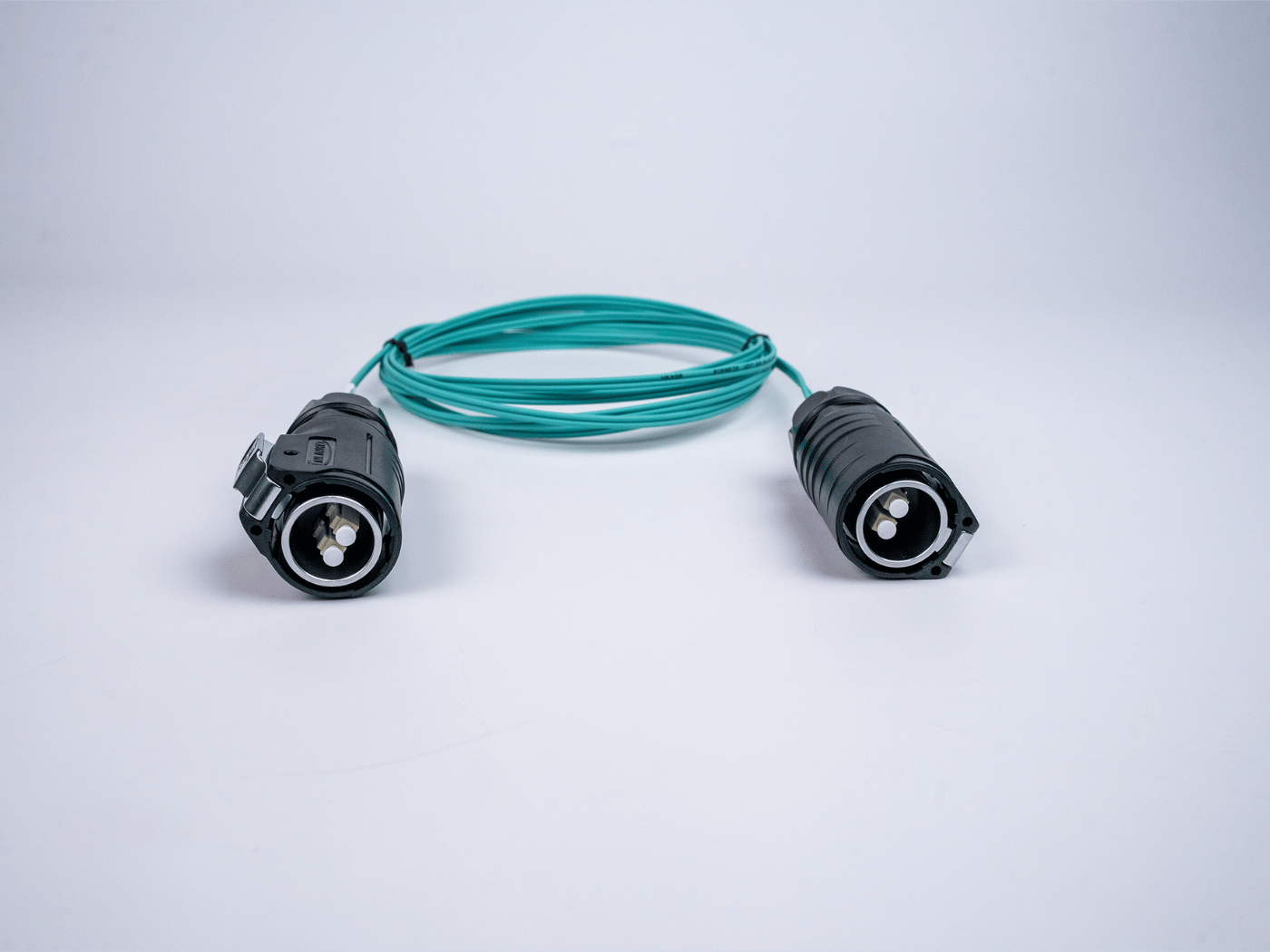

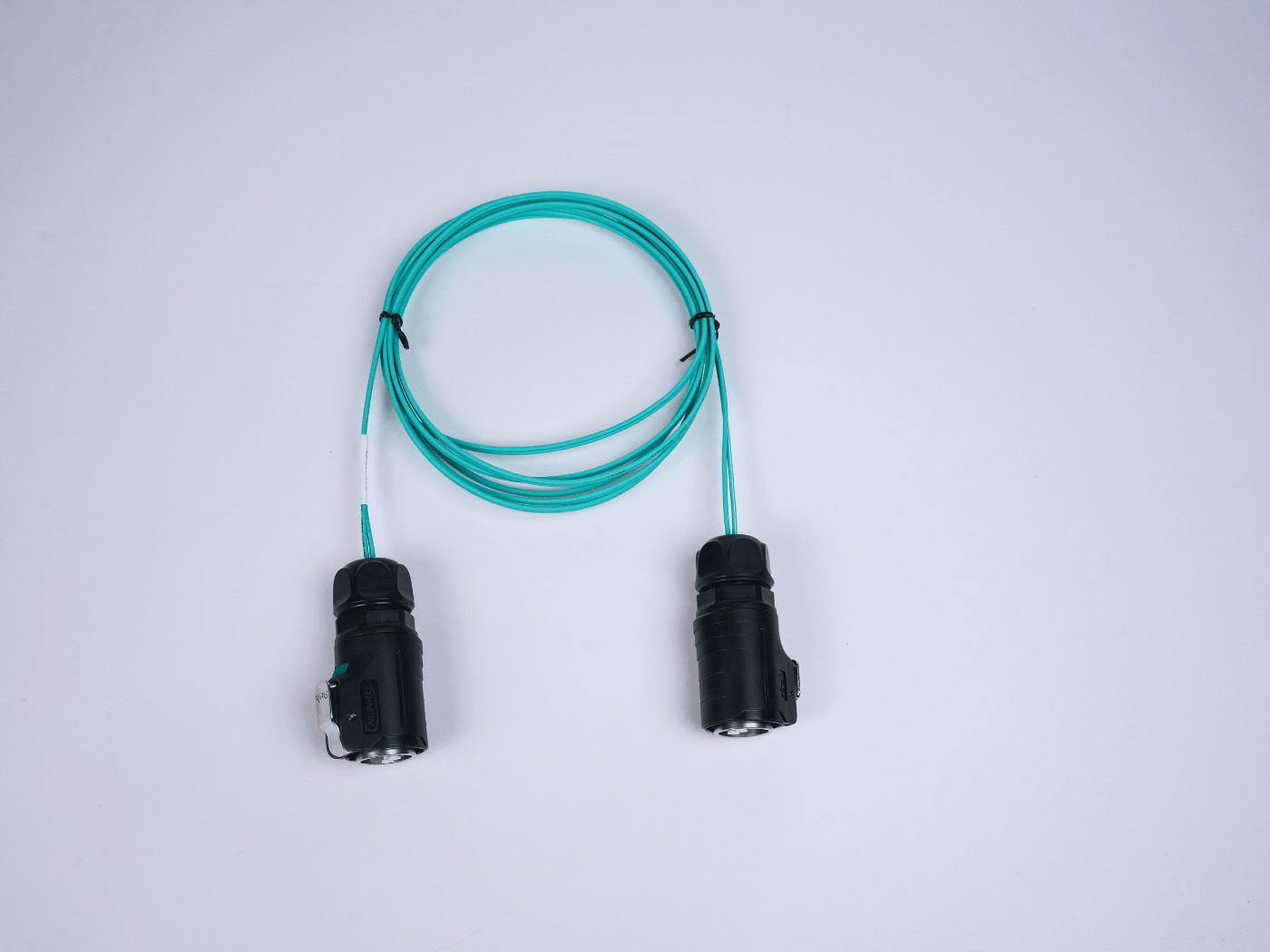

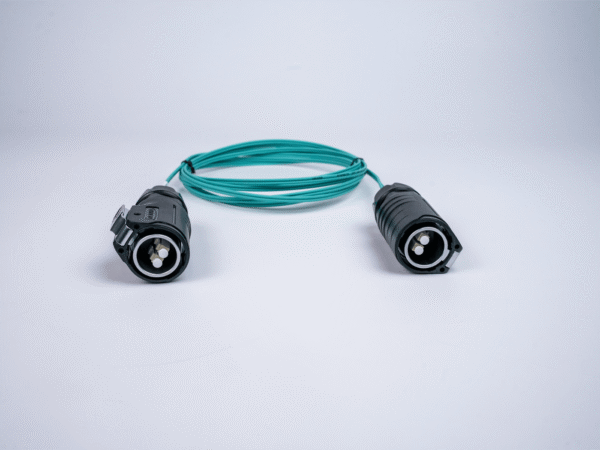

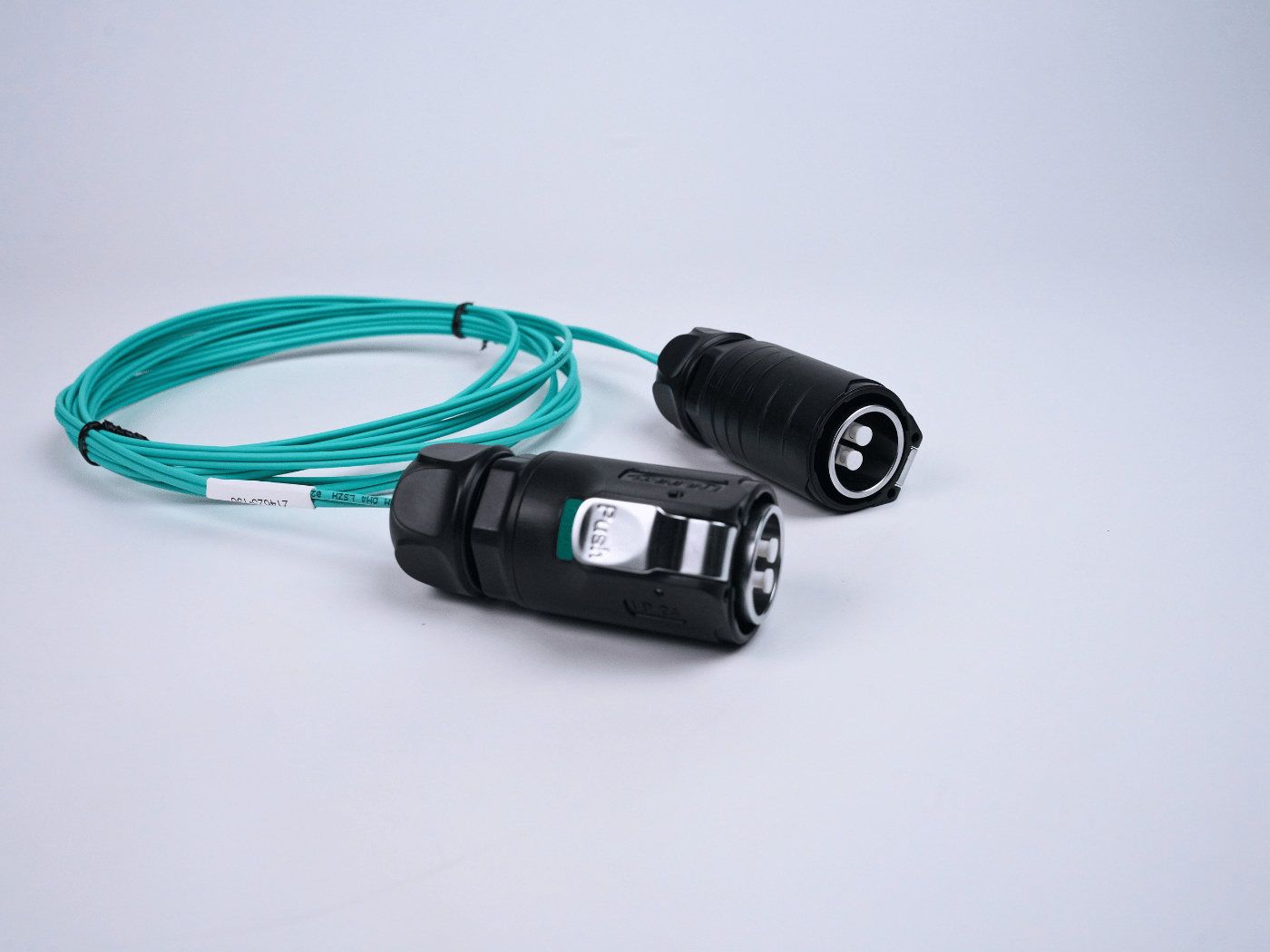

LC-LC Duplex Industrial grade Patch Cord , IP68

Partcode: 88068-0010

Description: LC-LC Duplex Industrial grade Patch Cord , IP68

The IP 68 rated Rugged Fiber Optic Patch cords are basically a Fiber Optic Patch Cords suggested for more rugged harsh environments. The spiral steel tape provides additional crush resistant and rodent attack prevention. The patch cord comes in many variations in terms of fibers, cables and connectors.

Download Data Sheet

Features

  • Good mechanical and temperature characteristics.
  • Small diameter, light weight, easy to connect, and support large capacity data transmission.
  • The aramid fiber is deployed to enhance the tensile strength of optical cable, which ismore suitable for long distance cable.
  • IP68 water, dust proof and corrosion resistant
  • Outer jacket material has the advantages of water proof, flame retardant, environmental protection.

Specifications

Fiber Count: 2

Inner sheath: LSZH

Outer sheath: HDPE

Return Loss: Min. 50dB(SM), Min 30dB(MM)

Operating Temperature: −40ºC to + 85ºC

Storage Temperature: −40ºC to + 85ºC
