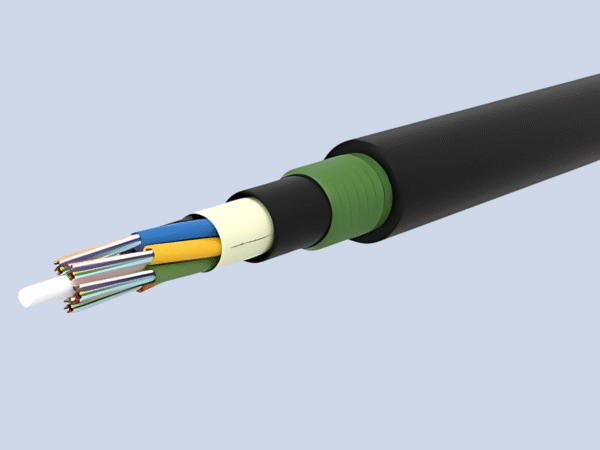

Multimode Direct Burial Armoured Fiber Optic Cable 6F/12F/24F

Partcode: 55C11-0XXX

Description: High Link Fiber Optic, Double Armoured, Multi loose Tube Outdoor Direct Burial Cable, Gel filled, 6F/T, CSM FRP, Double Sheath Inner HDPE Outer Black HDPE, MM, 06cores.

Multi Mode Multi Loose Tube, Double Sheath, optical fiber cables are prefect for direct burial applications. These cables are perfectly suited for both gigabit Ethernet and 10 gigabit Ethernet campus and backbone applications.

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.3-D, Telcordia GR-20, IEC 60794-2, ISO/IEC 11801, ISO/IEC 24702
  • Excellent water proof layer and good moisture resistance
  • Excellent consistence performance
  • Covered under 3C3® Performance Warranty

Specifications

Fiber Count: 6/12/24

Fibers per loose Tube: 6

Inner sheath: HDPE

Outer sheath: HDPE

Nominal Cable diameter: 13.6±0.5mm

Drum length: 2km ± 5%

Operating Temperature: -40ºC~+70ºC

Storage Temperature: -40ºC~+70ºC
