Single Mode Fiber Optic Patch Cord

Partcode: 7B0D0-XXXX

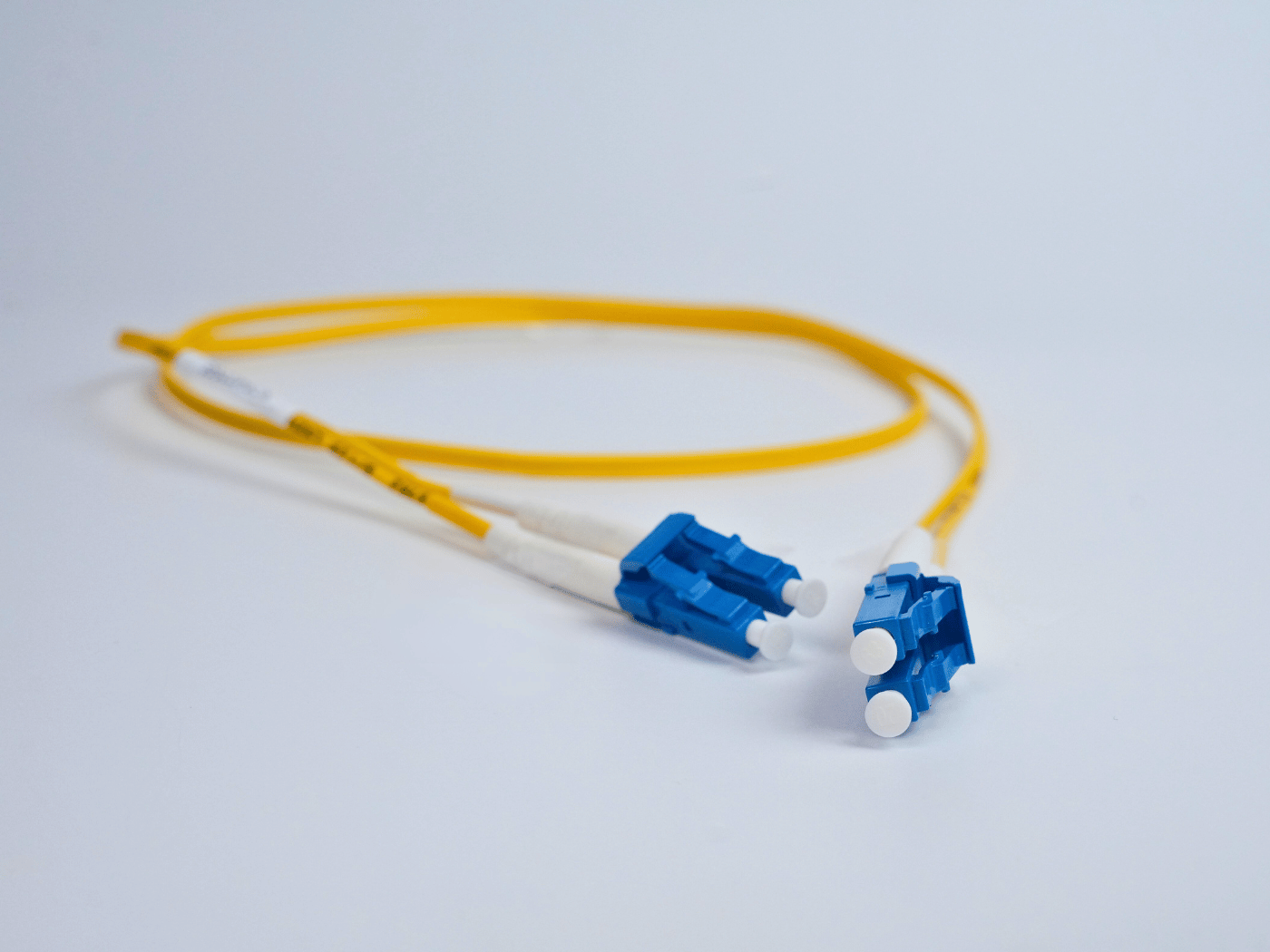

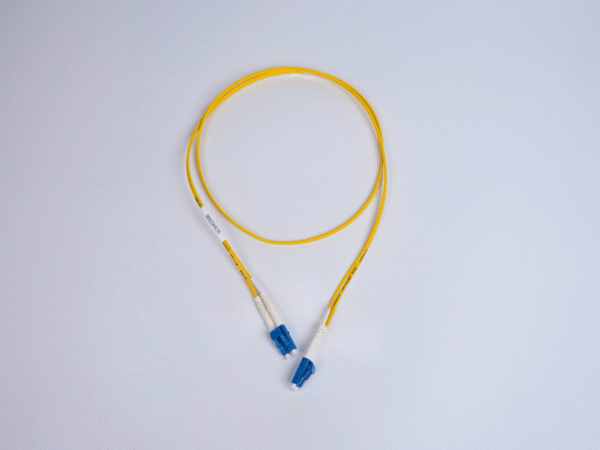

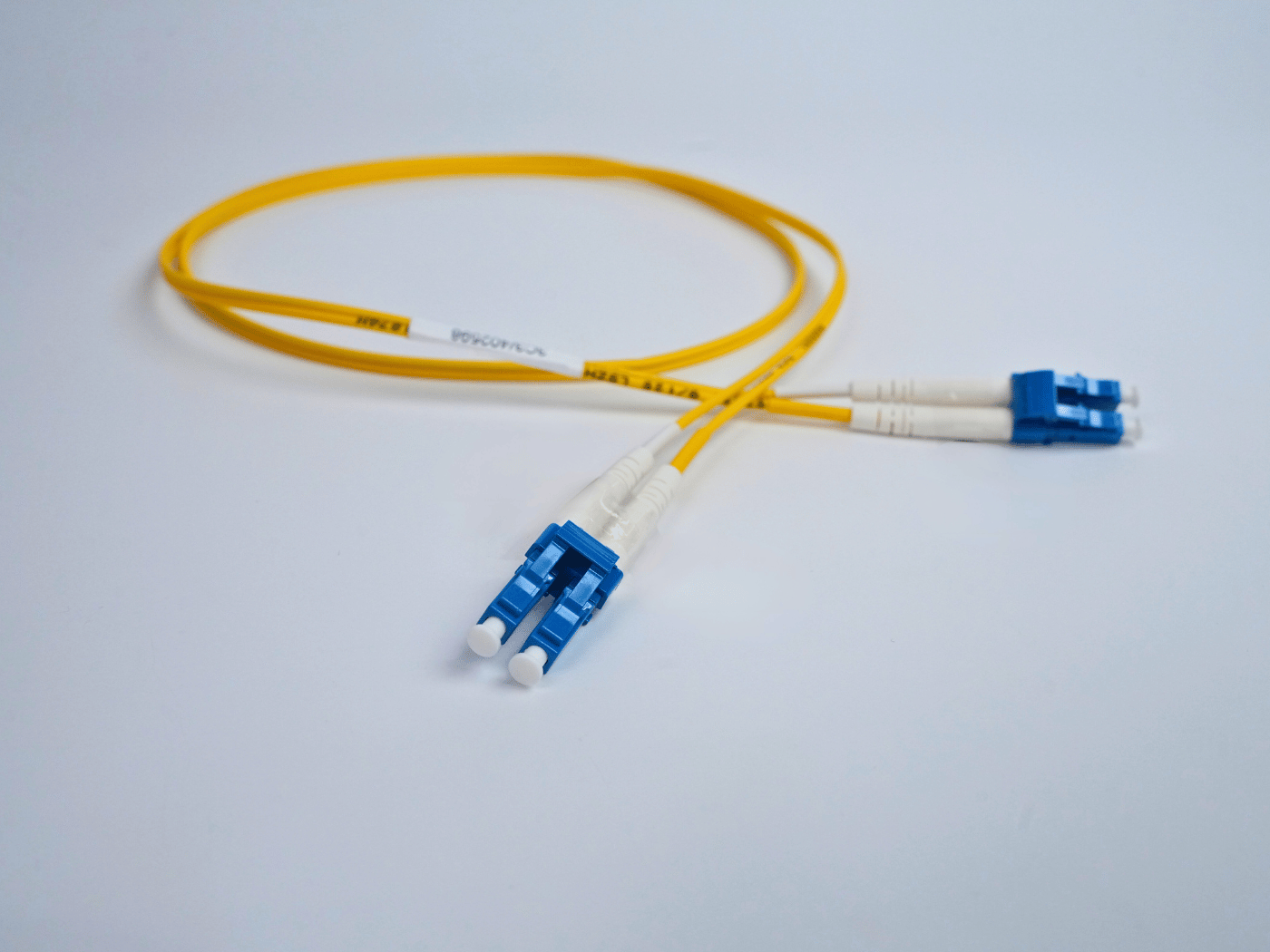

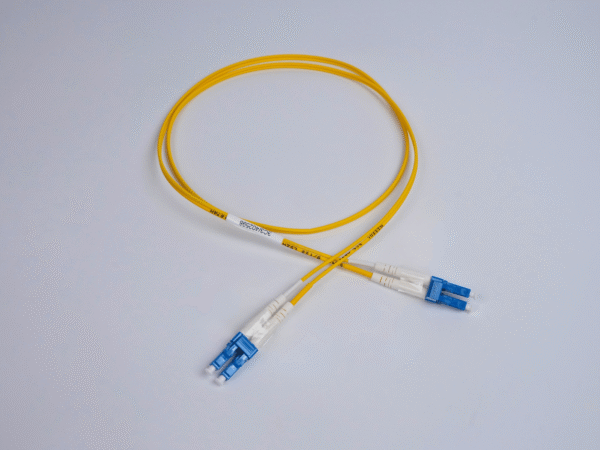

Description: High Link LCU to LCU Fiber Optic Patch Cord, Duplex, OS2

.

Fiber optic patch cord comprises of two tight buffer fibers housed within a common outer jacket in OS2 Single Mode variants. Both ends are terminated with high performance hybrid or single type connector comprising of SC, ST, FC, LC, MTRJ, E2000 connector in simplex and duplex

Download Data Sheet

Features

  • Conformance to ANSI/TIA-568.3-D, ITU-T G.657.A2, IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1, Telcordia GR-326, ISO/IEC 11801
  • All Assemblies Comes with Factory test reports
  • Bend insensitive fibers.
  • LSZH jacket, meets IEC-60332 (LSZH) flame rating for standard safety compliant.
  • Available in UPC Connectors
  • Available Type A and Type B
  • Duplex and Simplex versions, Uniform and hybrid patch cord versions available.
  • Covered under 3C3® Performance Warranty

Specifications

Colored Coating Diameter : 250±15μm

Tight Buffer Diameter : 700±50μm

Strength Member : Aramid yarn

Cable Dimension : 1.80±0.10mm x4.00±0.20mm

Jacket Material : LSZH

Jacket Color : Yellow

Opertaing Temperature: −20ºC to + 70ºC

Storage Temperature: −40ºC to + 70ºC
