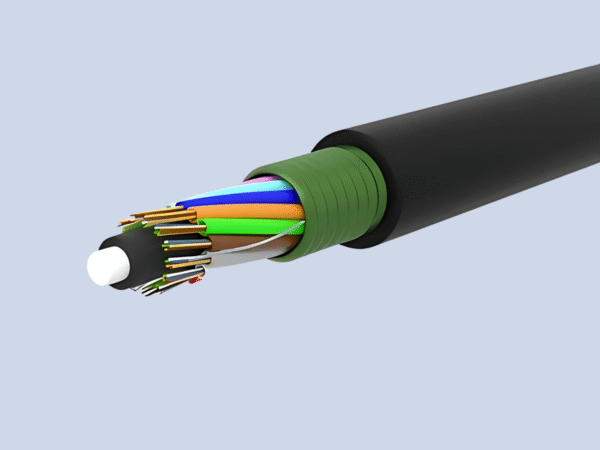

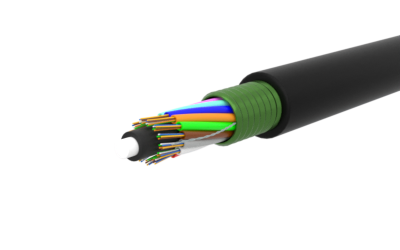

Single Mode Outdoor Armoured Fiber Optic Cable (144F)

Partcode: 53031-0144

Description: High Link Fiber Optic, Armoured, Multi loose Tube Outdoor Cable, Gel filled, 12F/T, CSM FRP, Single Sheath Black HDPE, OS2, 144cores

The Outdoor fiber optic cables are PBT Multi loose tube with colored fiber cores are suitable for direct burial as well as for duct applications. The constructions are of water-blocking tape with Non-Metallic Central Strength member & armoring. This cable has HDPE outer jacket makes it perfect for outdoor applications.



Download Data Sheet

Features

  • Complies to ANSI/TIA-568.3-D, ITU-T G652.D, Telcordia GR-20, IEC 60794-2/ 60794-3-10
  • HDPE jacket
  • Steel Strip Armoring
  • Water proof layer & excellent moisture resistance provided
  • Excellent consistence performance

Specifications

Fiber Count: 144

Fibers per loose Tube: 12

Outer sheath: HDPE

Nominal Cable diameter: 16.0±0.2mm

Drum length: 2km ± 5%

Operating Temperature: -40ºC~+70ºC

Storage Temperature: -40ºC~+70ºC
