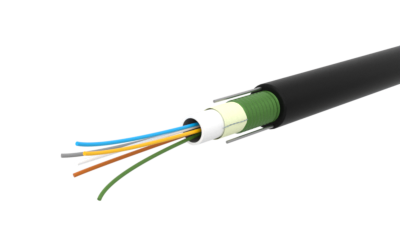

Single Mode Uniloose tube Outdoor Armoured Fiber Optic Cable (6F~12F)

Part Code: 53011-0XXX

Description: High Link Fiber Optic, Armoured, Uni loose Tube Outdoor Cable, Gel filled, Peripheral Steel rod Strength Member, Single Sheath Black HDPE, OS2, 6cores

Single Mode Uniloose tube, single sheath ECCS tape armored optical fiber cable is suitable for duct and aerial applications. Fiber cable is perfectly suited for both gigabit Ethernet and 10 gigabit Ethernet campus and backbone applications

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.3-D, ITU-T G652.D, Telcordia GR-20, IEC 60794-2/ 60794-3-10
  • HDPE UV Resistance jacket
  • ECCS tape Armoring
  • Water proof layer & excellent moisture resistance provided
  • Excellent consistence performance
  • Covered under 3C3® Performance Warranty

Specifications

Fiber Count: 6/12

No. of Tube: 1

Outer sheath: HDPE UV Resistance

Nominal Cable diameter: 9±0.5mm

Drum Length: 2km ± 5%

Operating Temperature: -40ºC~+75ºC

Storage Temperature: -40ºC~+75ºC
