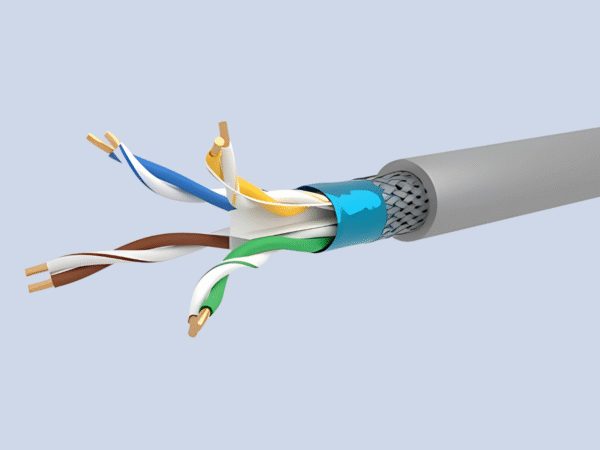

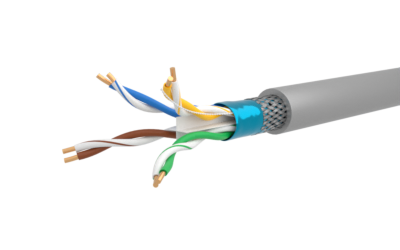

Category 6 SF/UTP Cable - LSZH

Category 6 SF/UTP Cable – LSZH

Part Code: 10220

Description: High Speed Gigabit Ethernet SF/UTP 250MHz Class E, LSZH Cable, C6

High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Al-Mylar Tape with Drain Wire, overall Aluminum braiding and FRPVC Outer Jacket. This Cable is Suitable for Gigabit Ethernet (1000Base-T) applications for High-Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Indoor Applications.

Download Data Sheet

Features

  • Complies to ANSI-TIA 568.2-D for Category 6 & ISO/IEC 11801 for Class E
  • Fire Rating as per IEC 60332-1
  • Cable Characterized up to 250 MHz
  • Shielded with Al-Mylar Tape with Drain Wire
  • Overall Alloy Braiding
  • Maximum throughput, reliability and performance
  • 4 Pair Separator Design
  • UL Listed and Channel performance Verified by ETL
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23

Conductor Material: Solid bare Copper

Outer Sheath: LSZH

Overall cable diameter: 7.20mm

Operating Temperature:−20ºC to +60ºC

Storage Temperature: −20ºC to +75ºC

Enquiring For Product

Category 6 SF/UTP Cable – LSZH

High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Al-Mylar Tape with Drain Wire, overall Aluminum braiding and FRPVC Outer Jacket. This Cable is Suitable for Gigabit Ethernet (1000Base-T) applications for High-Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Indoor Applications.
