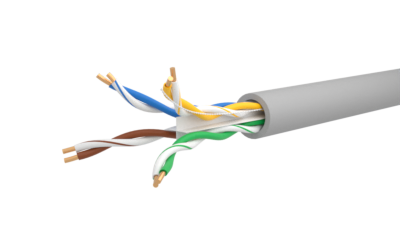

Category 6 UTP 24AWG Cable – FRPVC

Part Code: 10002

Description: High Speed Gigabit Ethernet U/UTP 24AWG 250MHz Class E, FRPVC Cable, C6

High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 24AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Rip Cord and FRPVC Outer Jacket. This Cable is Suitable for Gigabit Ethernet (1000Base-T) applications for High-Speed Data, Voice & Video Signals over LANs, Server Farms and Other Bandwidth Sensitive Indoor Applications.

Download Data Sheet

Features

  • Complies to ANSI-TIA 568.2-D for Category 6 & ISO/IEC 11801 for Class E
  • Fire Rating as per IEC 60332-1
  • Cable Characterized up to 250 MHz
  • Maximum throughput, reliability and performance
  • 4 Pair Separator Design
  • UL Listed and Channel performance Verified by ETL
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23

Conductor Material: Solid bare Copper

Outer Sheath: FRPVC

Overall cable diameter: 5.6±0.20mm

Operating Temperature:−20ºC to +60ºC

Storage Temperature: −20ºC to +75ºC
