Category 6 UTP Antirodent Armoured Cable

Partcode: 10202-0046

Description: High Speed Gigabit Ethernet U/UTP 250MHz Class E, Anti Rodent Proof, Inner FRPVC, Outer PE, Outdoor Cable, C6

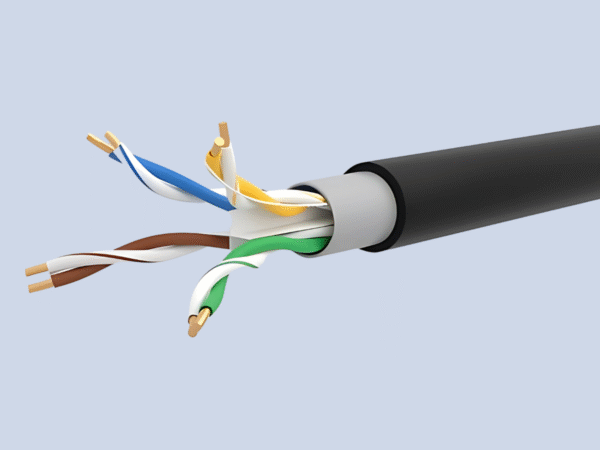

High Speed Gigabit Ethernet U/UTP 250 MHz Class E / Category 6 Armored cable Outdoor Anti-Rodent Cable Consists of PE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, FRPVC Inner Jacket and PE Outer Jacket. The rugged construction of this cable is ideal for outdoor installation. The cable supports Gigabit Ethernet Applications and is compatible with all known connection systems. This cable guarantees Category 6 performance ensuring maximum network speed, data throughput and efficiency.

Download Data Sheet

Features

  • Complies to ANSI-TIA 568.2-D for Category 6 & ISO/IEC 11801 for Class E
  • Fire Rating better than IEC 60332-1
  • Cable Characterized up to 250 MHz
  • The outer sheath complied to Anti rodent properties.
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23

Conductor Material: Solid bare Copper

Inner Sheath: FRPVC

Outer Sheath: PE

Overall cable diameter: 7.2 ± 0.2mm

Operating Temperature:−20ºC to +70ºC

Storage Temperature: −20ºC to +75ºC
