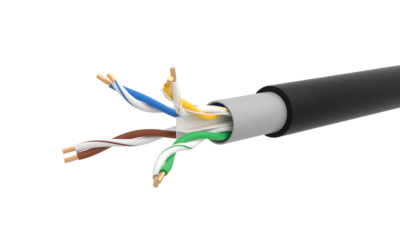

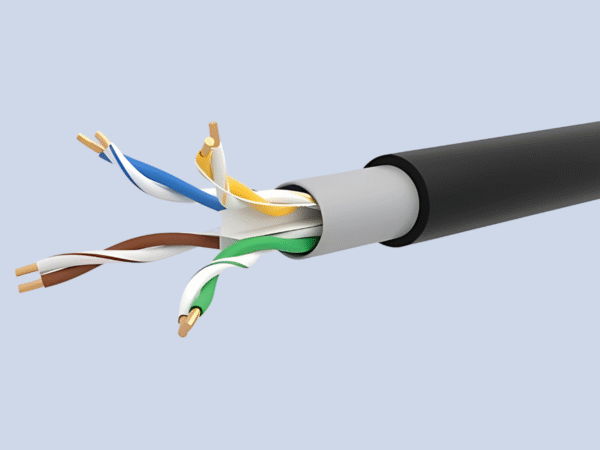

Category 6 UTP Double Sheath Cable

Partcode: 10200-0086

Description: High Speed Gigabit Ethernet UTP 250 MHz Class E Double Sheath, Inner LSZH, Outer PE, Outdoor Cable, C6

High Speed Gigabit Ethernet UTP 250 MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, Rip Cord and LSZH Inner Jacket and PE Outer Jacket. This Cable is Suitable for Gigabit Ethernet (1000Base-T) applications for High-SpeedData, Voice &Video Signals over LANs,Other Bandwidth Sensitive Indoor & Outdoor Applications. This cable guarantees Category 6 performance ensuring maximum network speed, data throughput and efficiency.

Download Data Sheet

Features

  • Complies to ANSI-TIA 568.2-D for Category 6 & ISO/IEC 11801 for Class E
  • Fire Rating as per IEC 60332-1
  • Cable Characterized up to 250 MHz
  • 4 Pair Separator Design
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23

Conductor Material: Solid bare Copper

Inner Sheath: LSZH

Outer Sheath: PE

Overall cable diameter: 7.5 ± 0.5mm

Operating Temperature:−10ºC to +60ºC

Storage Temperature: −20ºC to +75ºC
