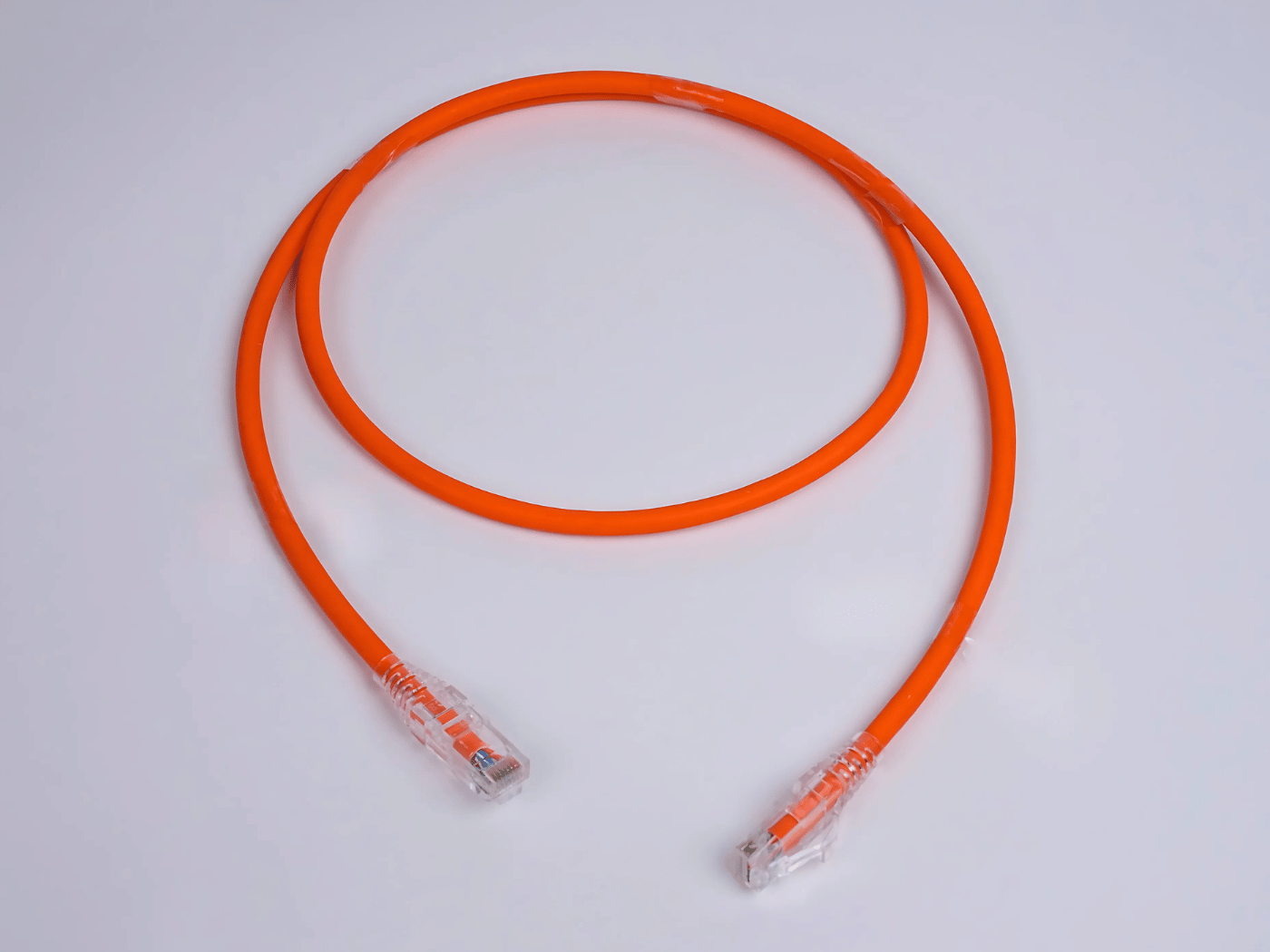

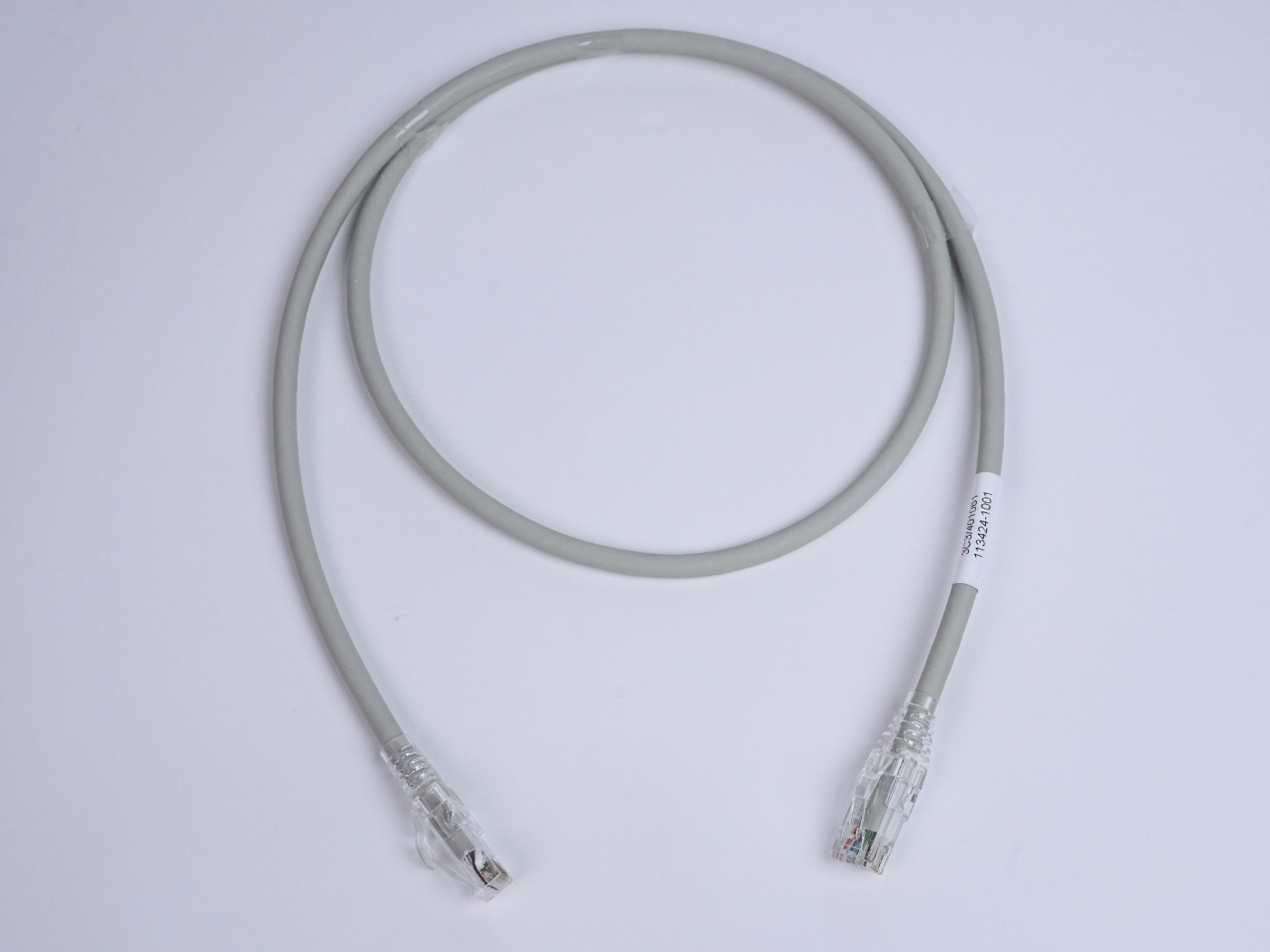

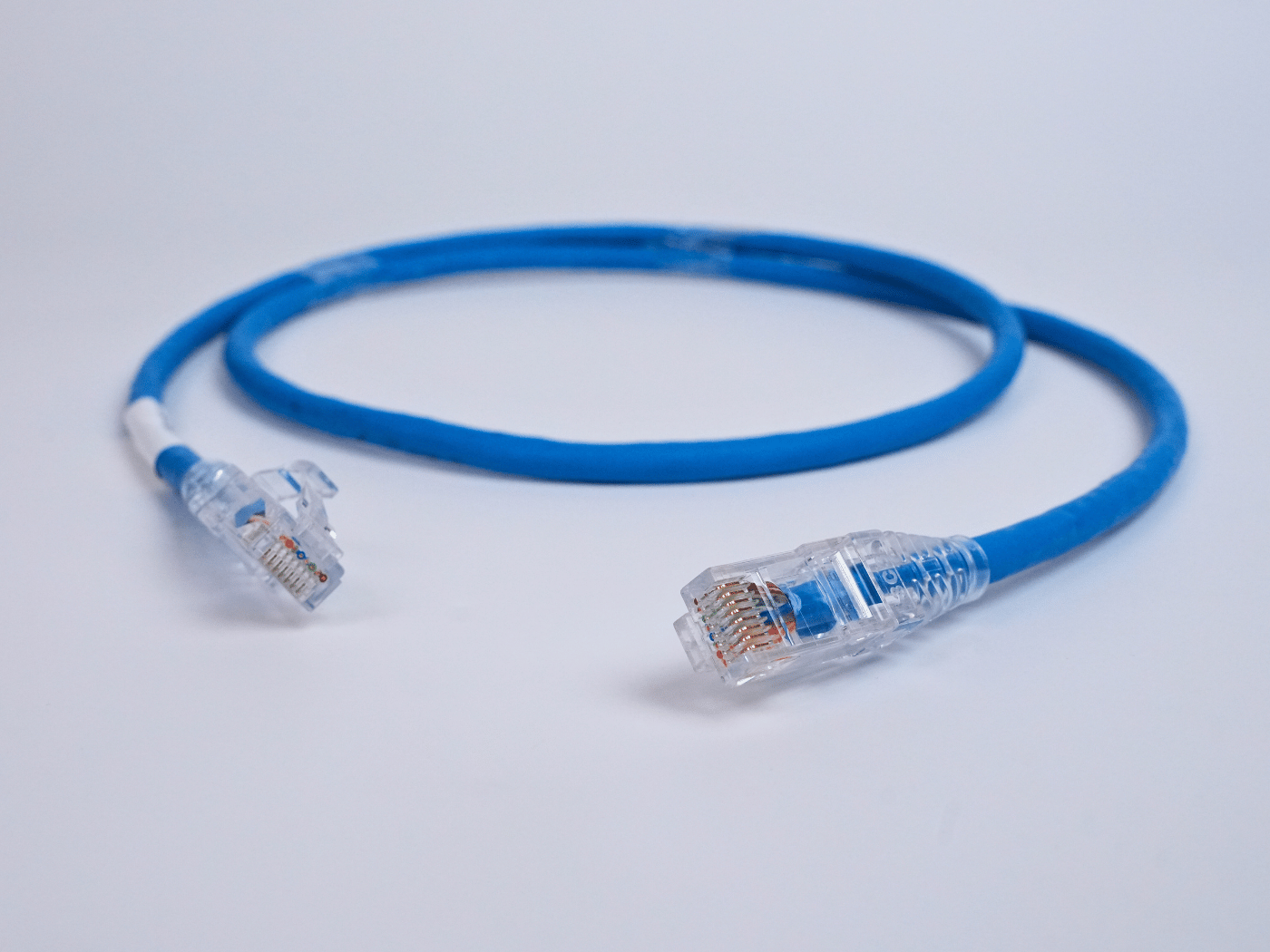

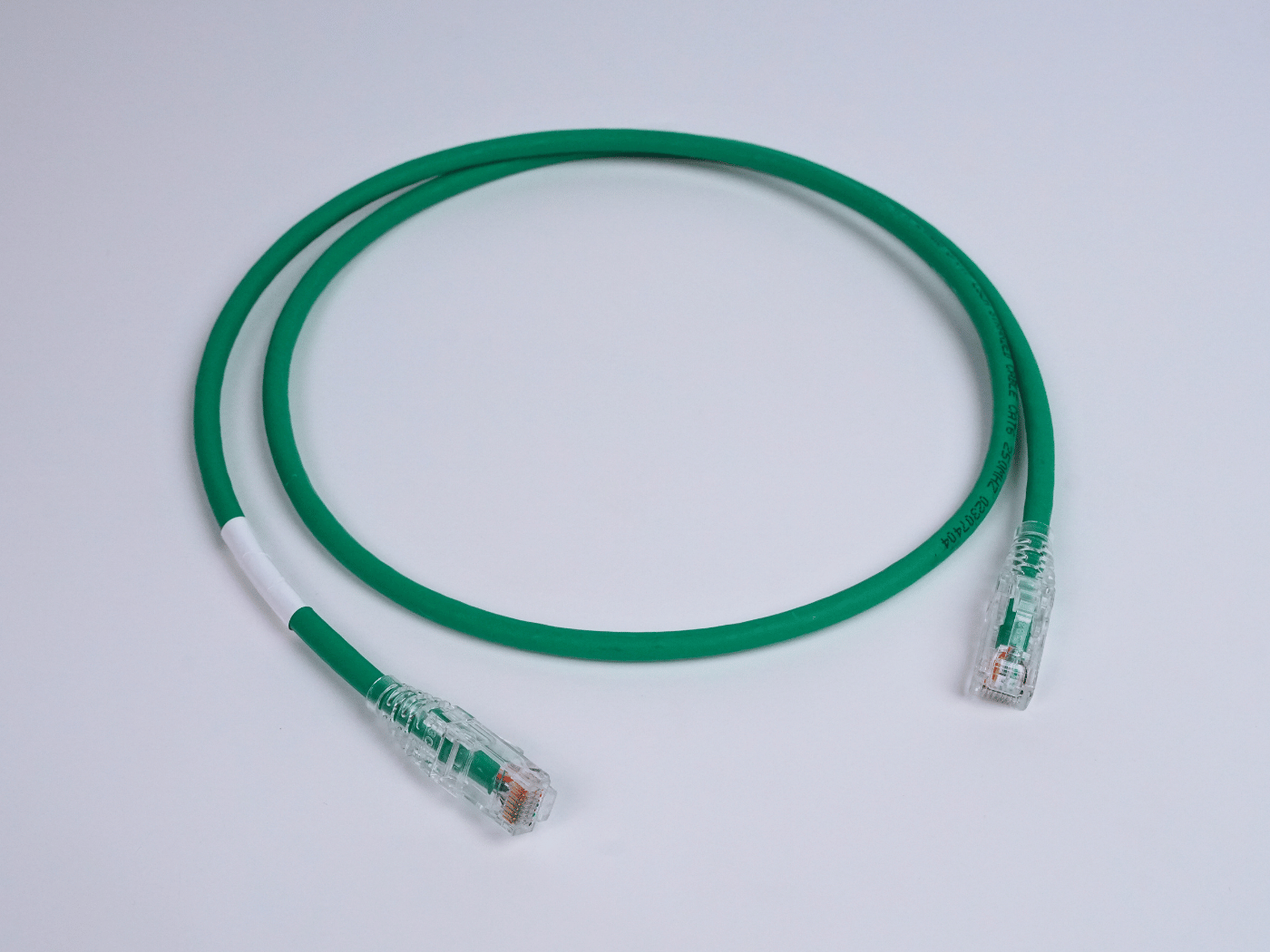

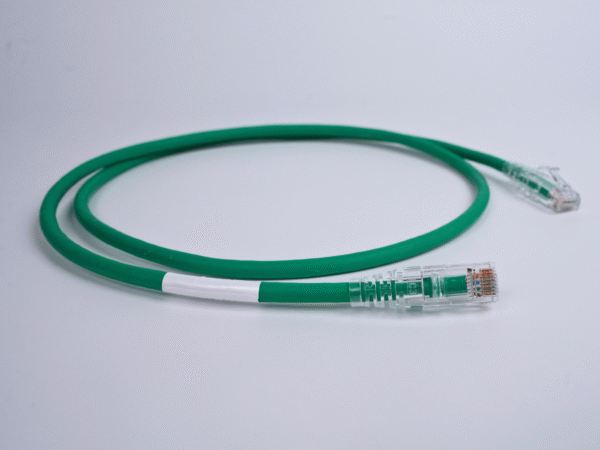

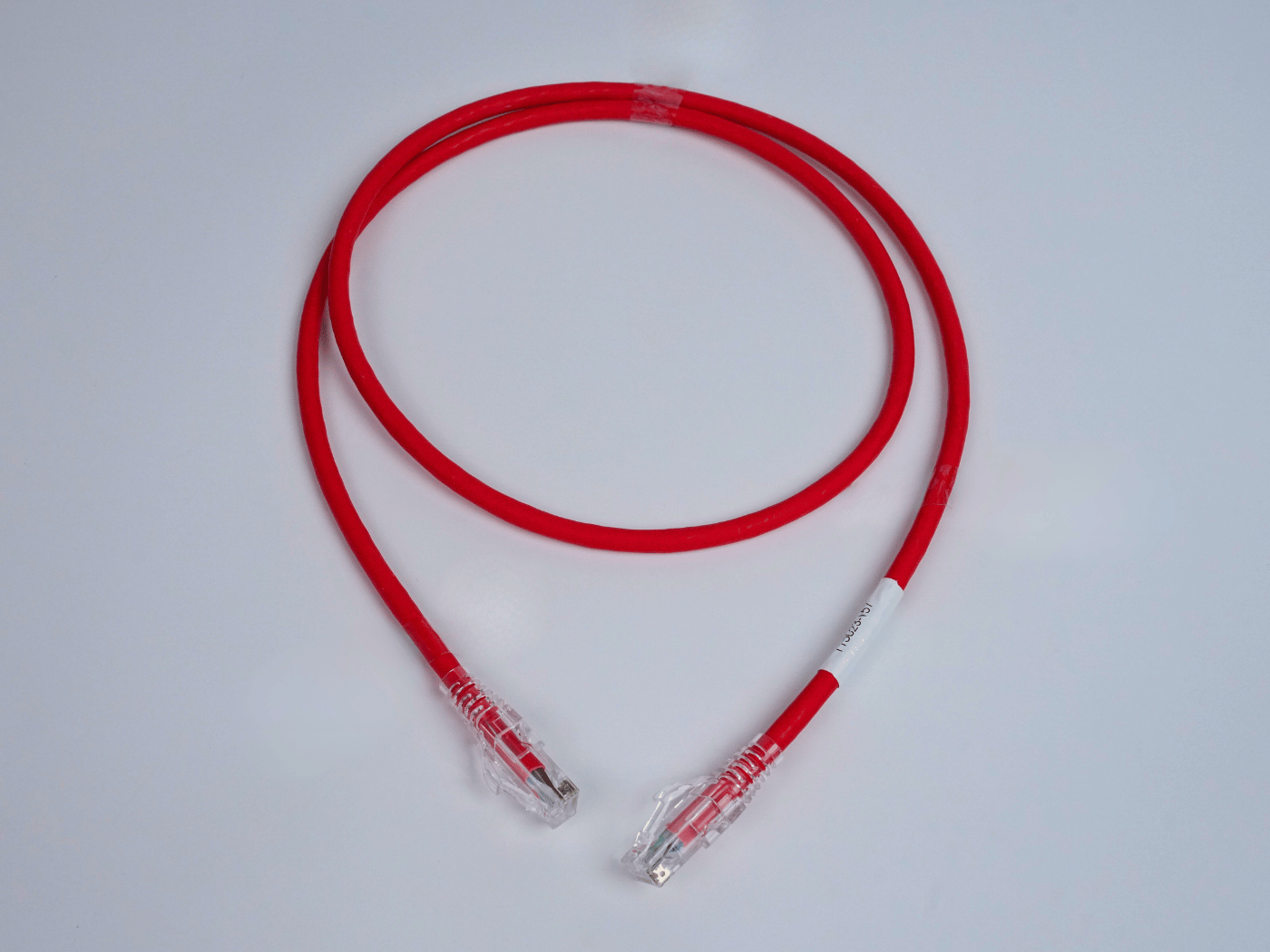

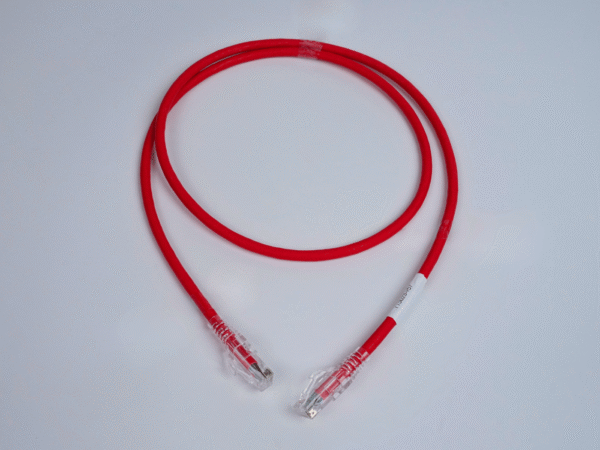

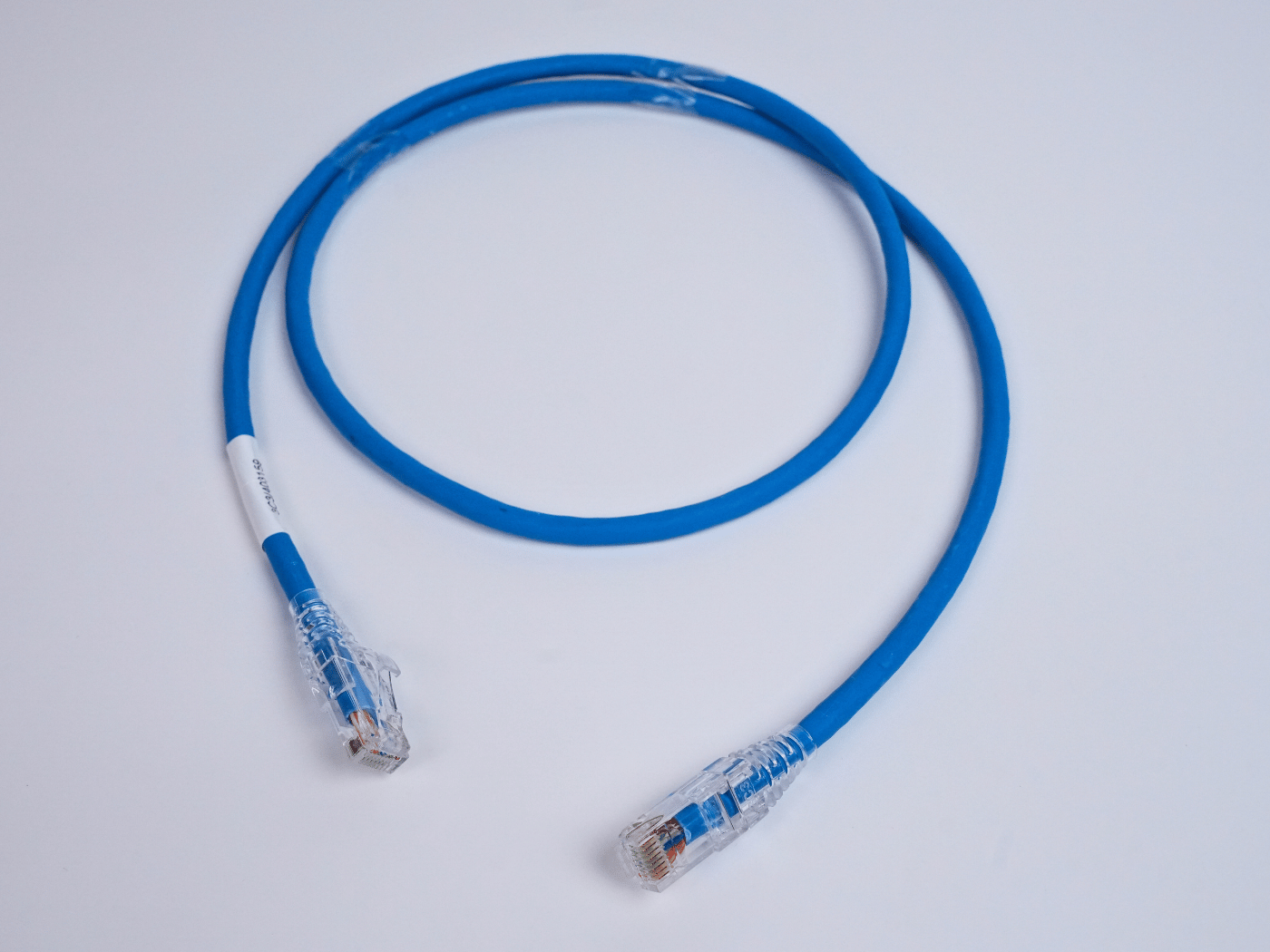

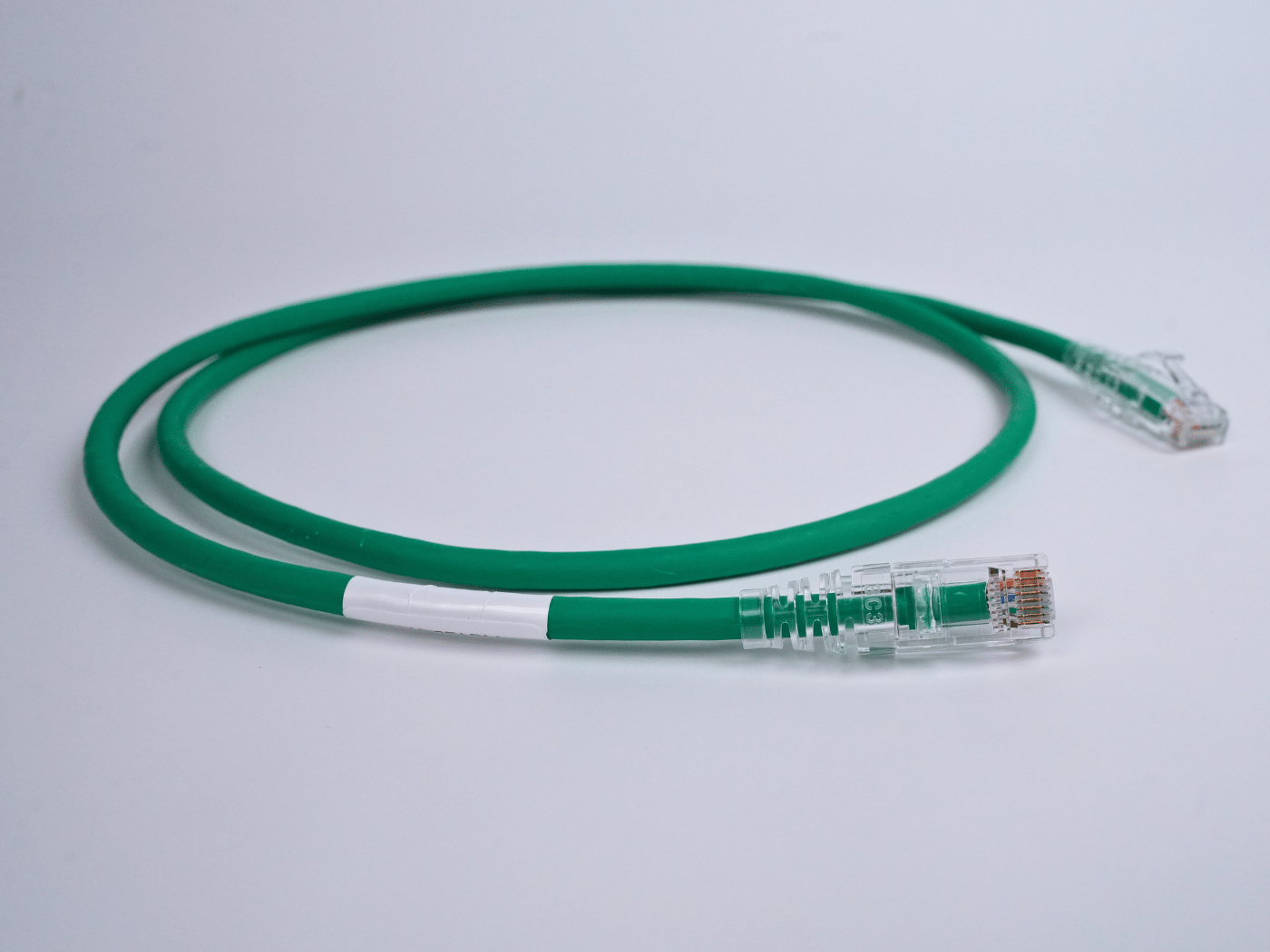

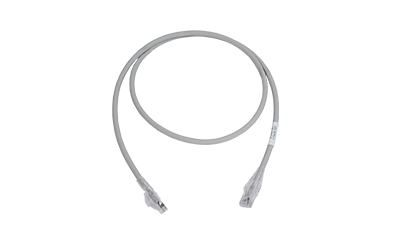

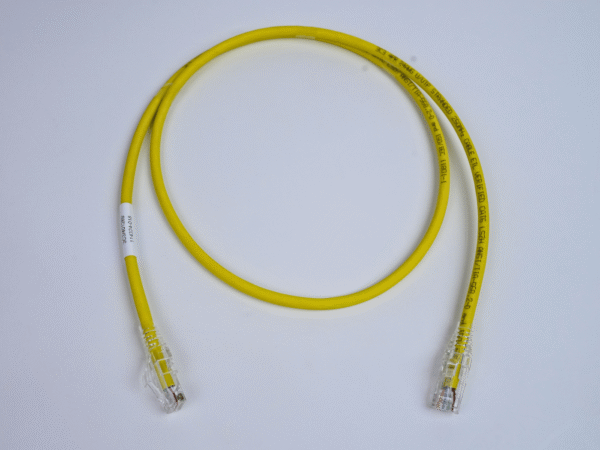

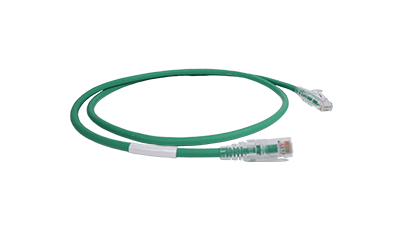

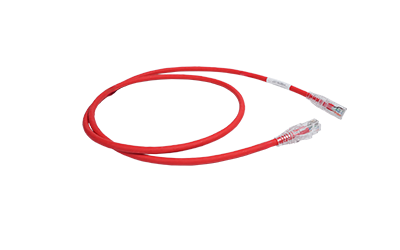

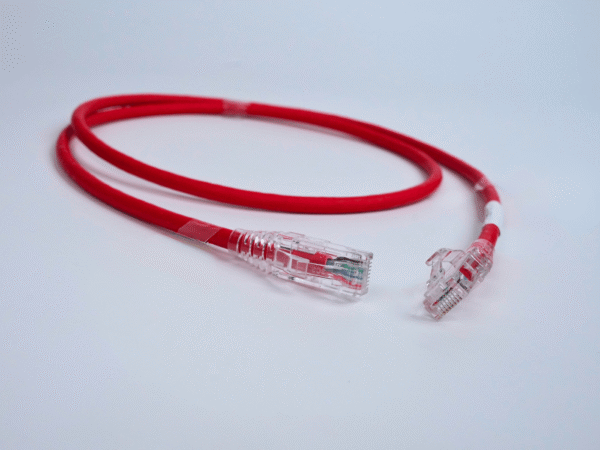

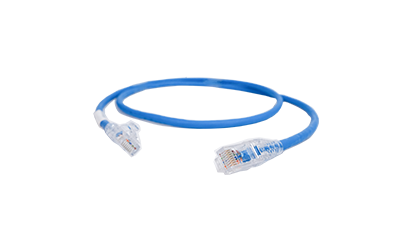

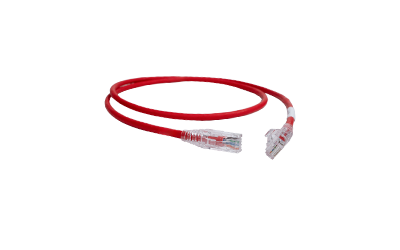

Category 6 UTP Patch Cord

Part Code: 202D0-XXXX

Description: High Speed Gigabit 24AWG UTP Patch Cord, LSZH, C6, Blue

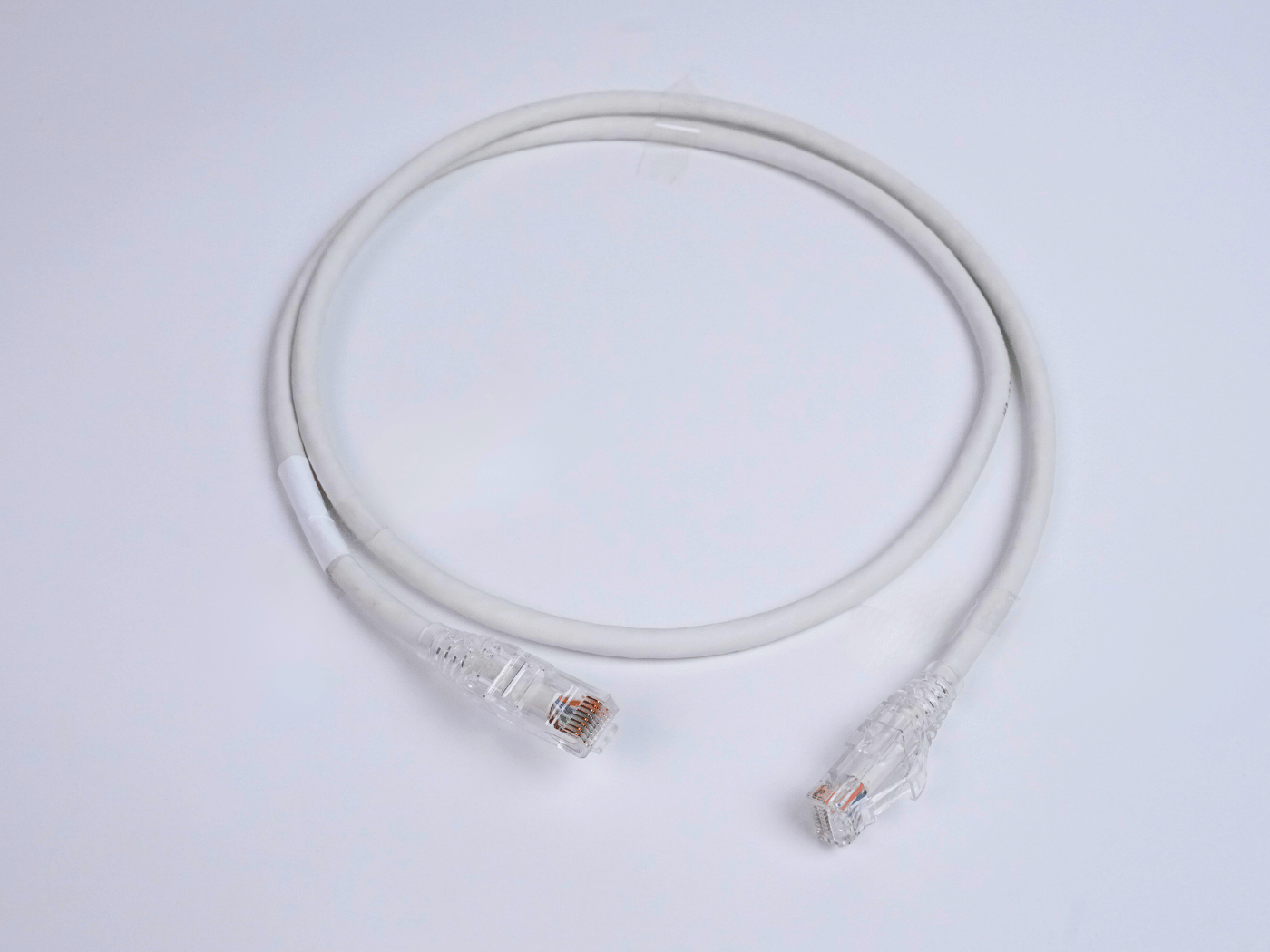

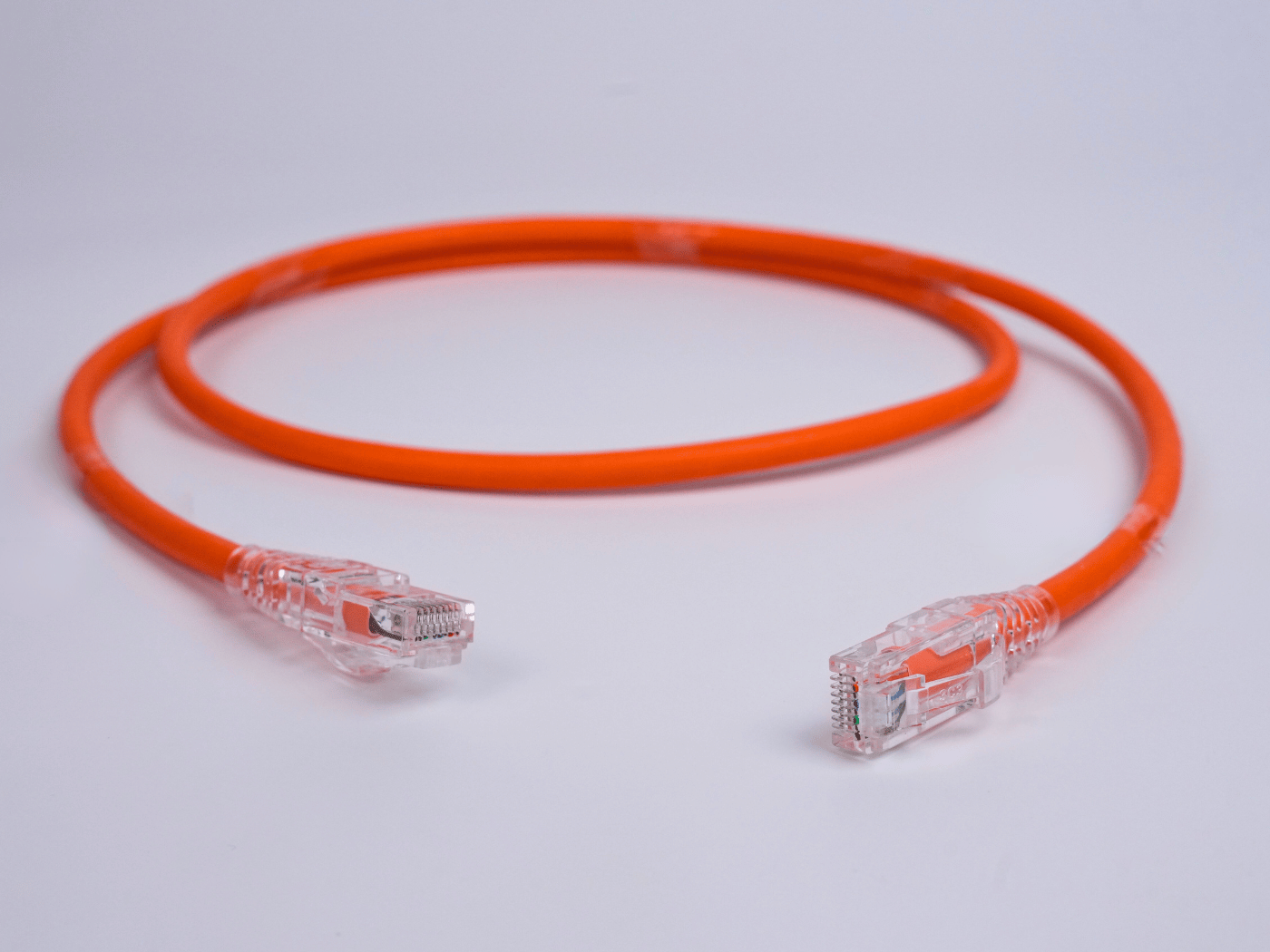

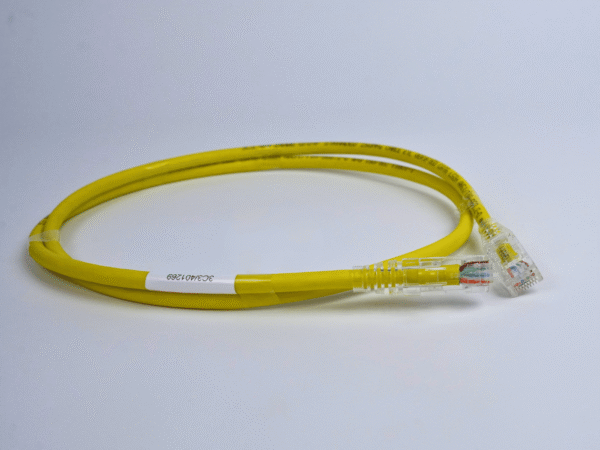

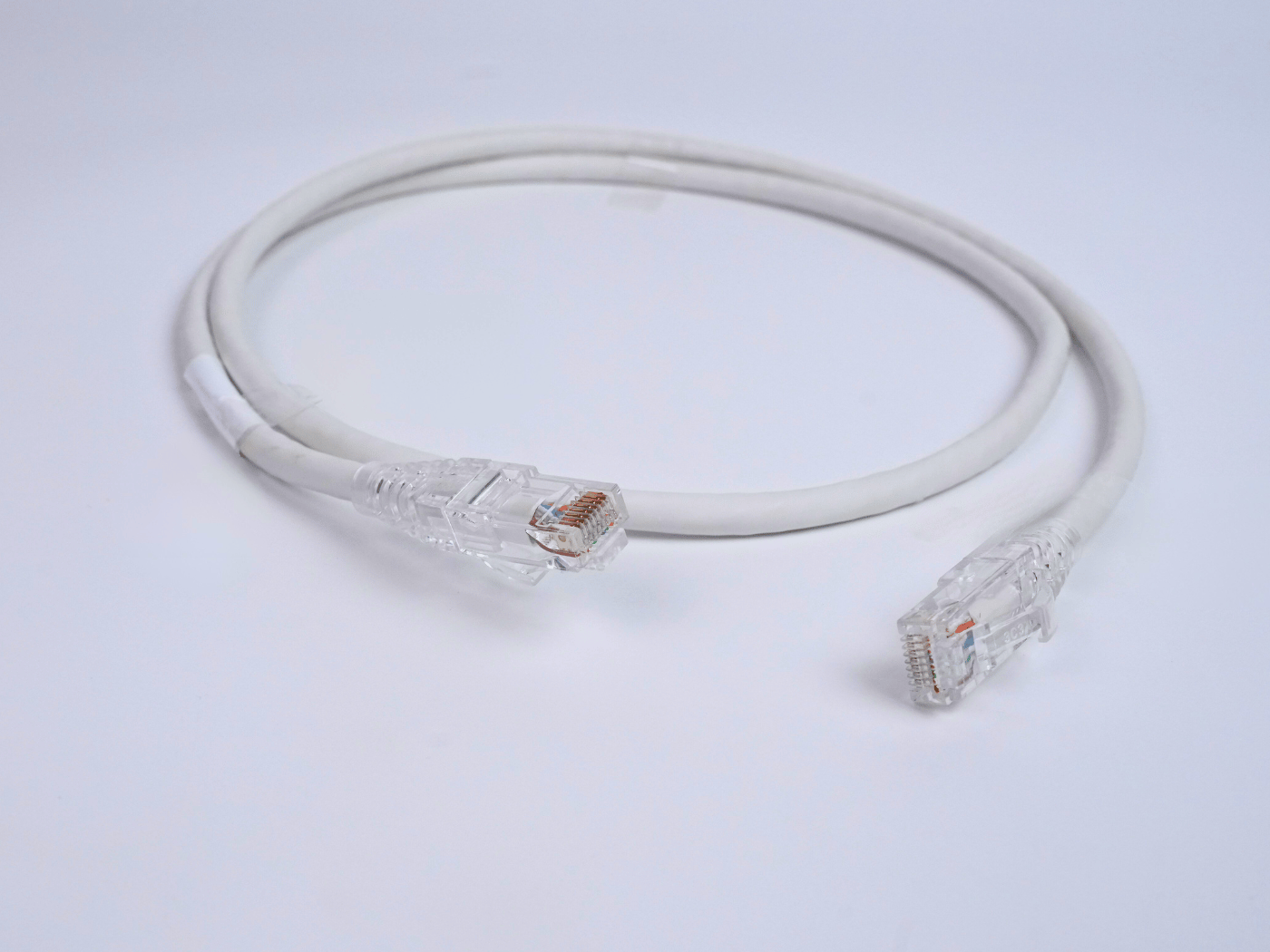

Category 6 UTP Patch cords are manufactured using high quality un-shielded 4 Pair Stranded cable and features cable strain relief boot with plug latch protection cap for antisnag. They are designed to meet or exceed Cat6 specifications. These high-performance patch cords are available with various colors and lengths.

Download Data Sheet

Features

  • Complies to ANSI/TIA 568.2-D, ISO/IEC 11801 & IEC 61156-6 Standard
  • Quality 24 AWG Stranded flexible cable
  • High Grade 50m Gold Plated RJ45 connectors
  • Injection Molded boot/Strain Relief Boot for improved performance
  • Soft Latch-cover design for easy depression
  • RoHS Compliant
  • UL Listed & Channel performance verified by ETL.

Specifications

Conductor AWG: 24

Conductor Material: Stranded bare Copper

Type of Cable: U/UTP

Outer Sheath: LSZH

Cable Diameter:5.86 ± 0.3mm

Operating Temperature:−10ºC to +60ºC

Storage Temperature: −20ºC to +70ºC
