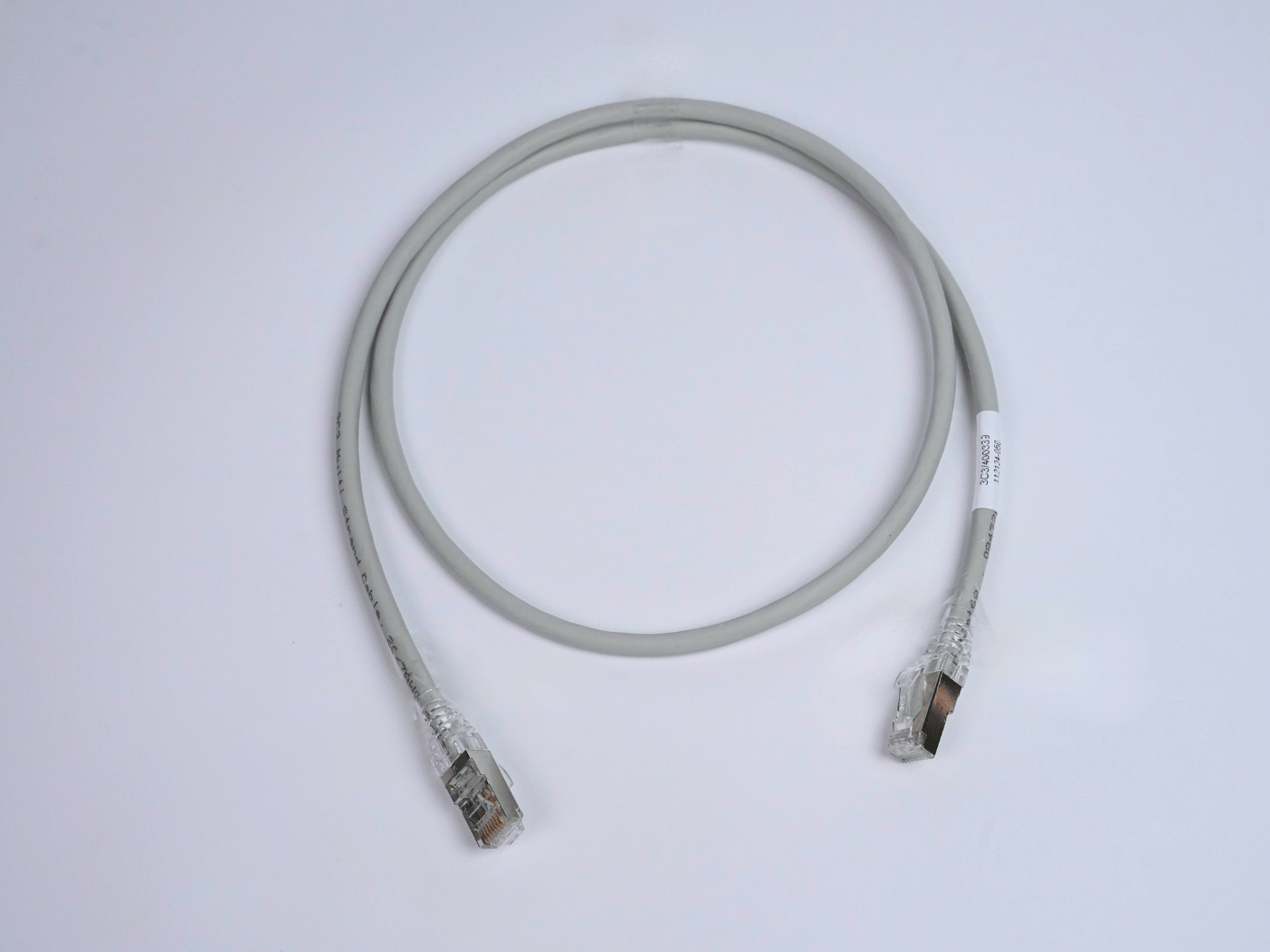

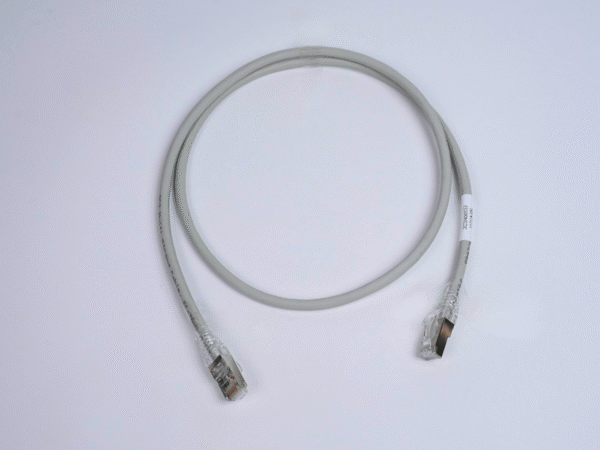

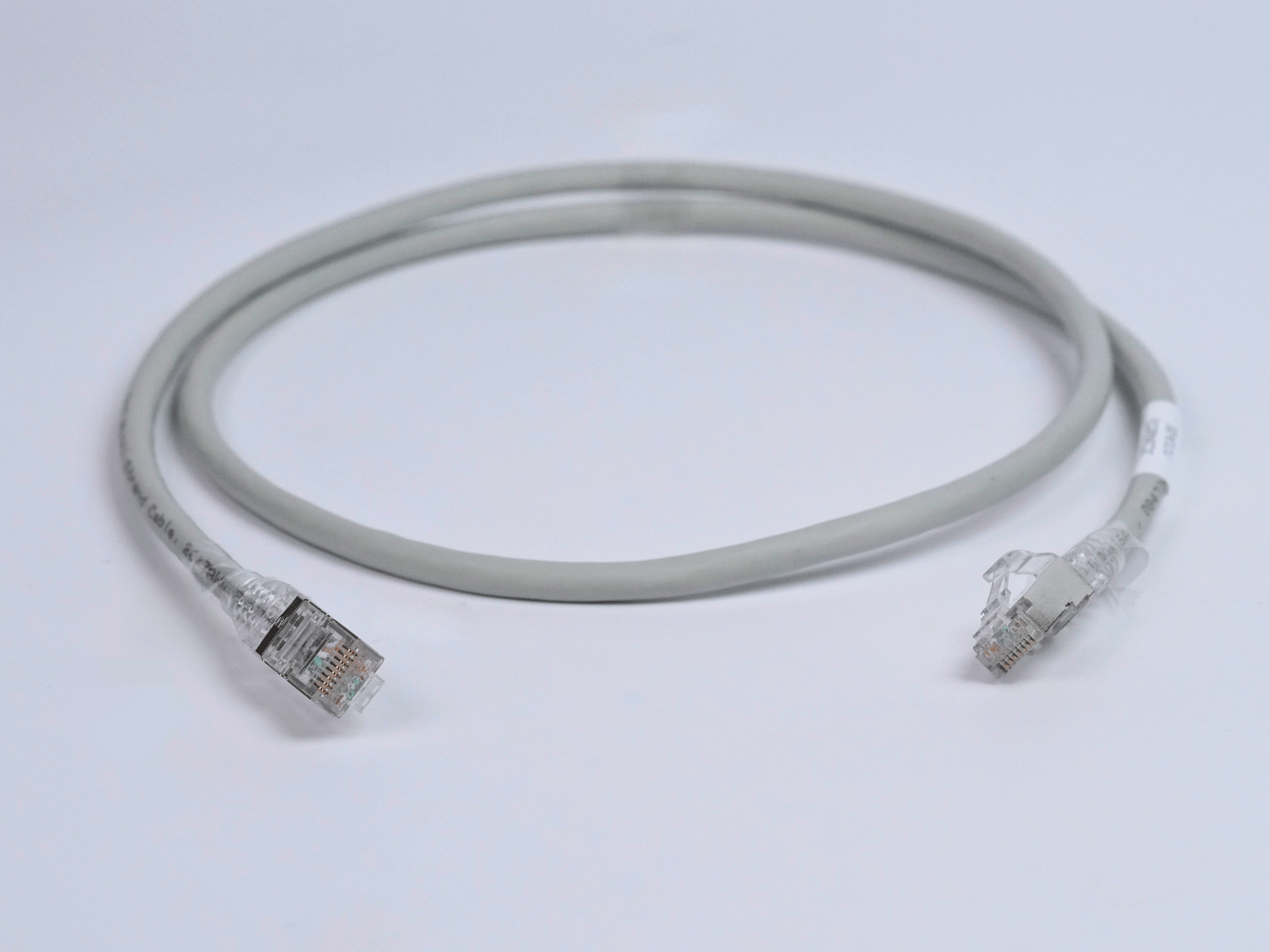

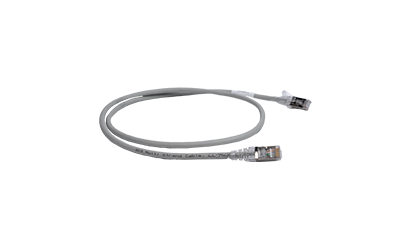

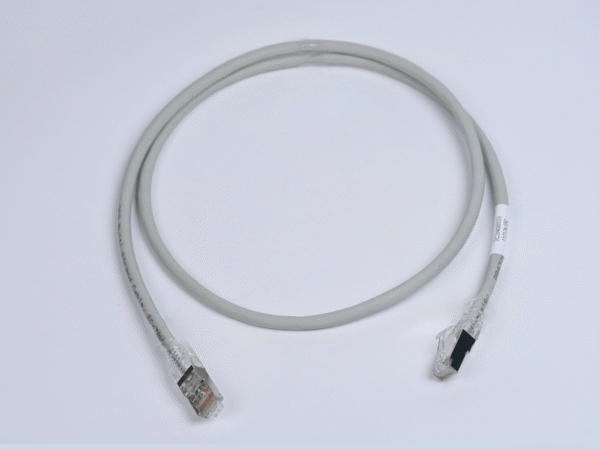

Category 6A S/FTP Patch Cord

Part Code: 23350-XXXX

Description: High Speed 10 Gigabit 26AWG S/FTP Patch Cord Grey, LSZH, C6A, M

High Speed 10 Gigabit S-FTP Patch Cable Grey, LSZH, C6A delivers optimal transmission and networking performance with reduced insertion loss and Alien Crosstalk. They have high performance components available in broad range of lengths and designed to meet or exceed all Cat6A specifications. 26AWG conductors are securely mated with Shielded RJ45 plug design to deliver superior performance.

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.2-D Standard
  • Exceeds the requirements of IEEE 802.3an (10GBASE-T) and ISO/IEC 11801 Revision 2.2
  • Superior cable flexibility from 26AWG stranded cable
  • High grade 50μ gold Plated RJ45 connecters
  • Improved strain relief boot correct bend radius to ensure maximum performance
  • Soft latch-cover design for easy depression and antisnag function.
  • Supports 10Gigabit Ethernet
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 26

Conductor Material: Stranded bare Copper

Type of Cable: S/FTP

Outer Sheath: LSZH

Cable Diameter: 6.2 ±0.2mm

Operating Temperature:−10ºC to +60ºC

Storage Temperature: −20ºC to +70ºC
