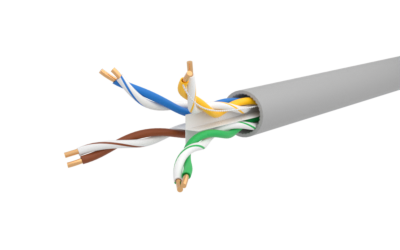

Category 6A U/UTP Cable,LSZH

Part Code: 10300

Description: High Speed 10G Ethernet U/UTP 500MHz Class EA, LSZH Cable, C6A



High Speed 10Gigabit Ethernet U-UTP 500 MHz Class EA / Category 6A LSZH Cable is produced using HDPE Insulated 8 x 23 AWG Solid Bare Copper Conductors. The twisted pairs are covered with LSZH Outer Sheath. It supports 10/100/1000Base-T, 155Mbps ATM, IEEE 802.3an (10GBase-T) Standard.





Download Data Sheet

Features

  • ANSI/TIA-568.2-D Category 6A
  • ISO/IEC 11801 Class EA
  • Fire Rating as per IEC 60332-1
  • Supports 10Gigabit Ethernet to a full 100m up to 500 MHz
  • Unique Insulation design to prevent Alien Crosstalk
  • Channel Performance Verified by ETL & UL Listed
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23
Conductor Material: Solid bare Copper
Outer Sheath: LSZH
Overall cable diameter: 7.20±0.30mm
Operating Temperature: −20ºC to +75ºC
Storage Temperature: −20ºC to +70ºC
