Category 6AInline Coupler IDC Shielded C6A

Part Code: 13339

Description: Inline Coupler, IDC Termination Shielded C6A

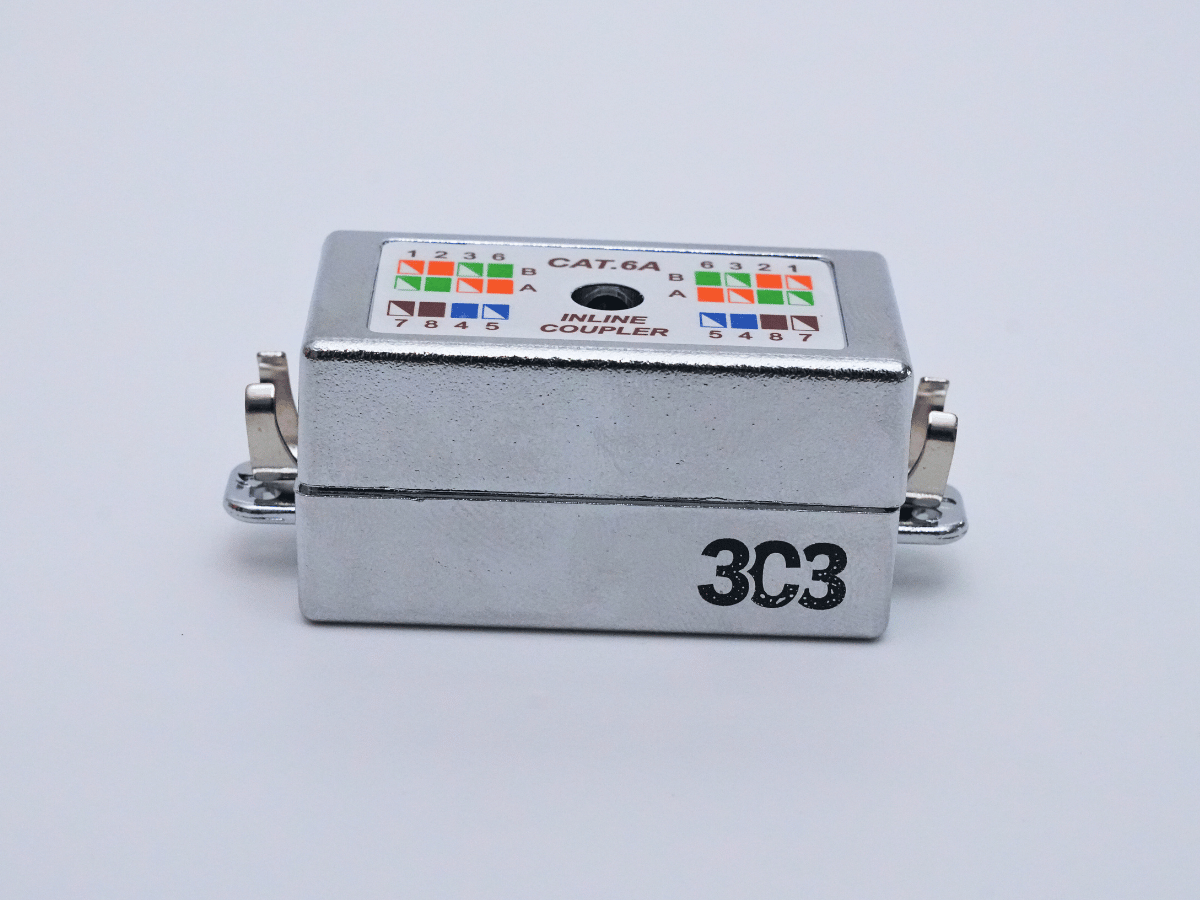

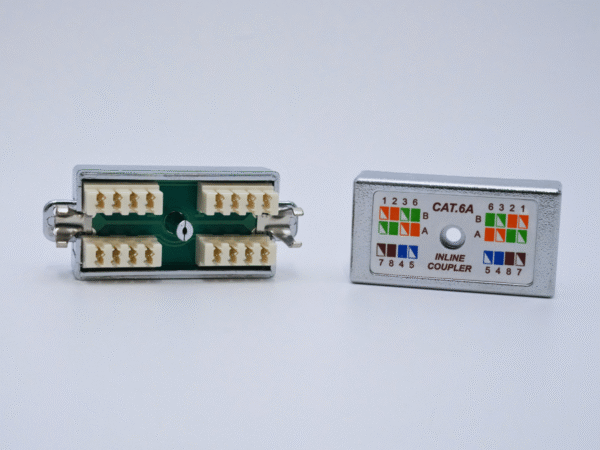

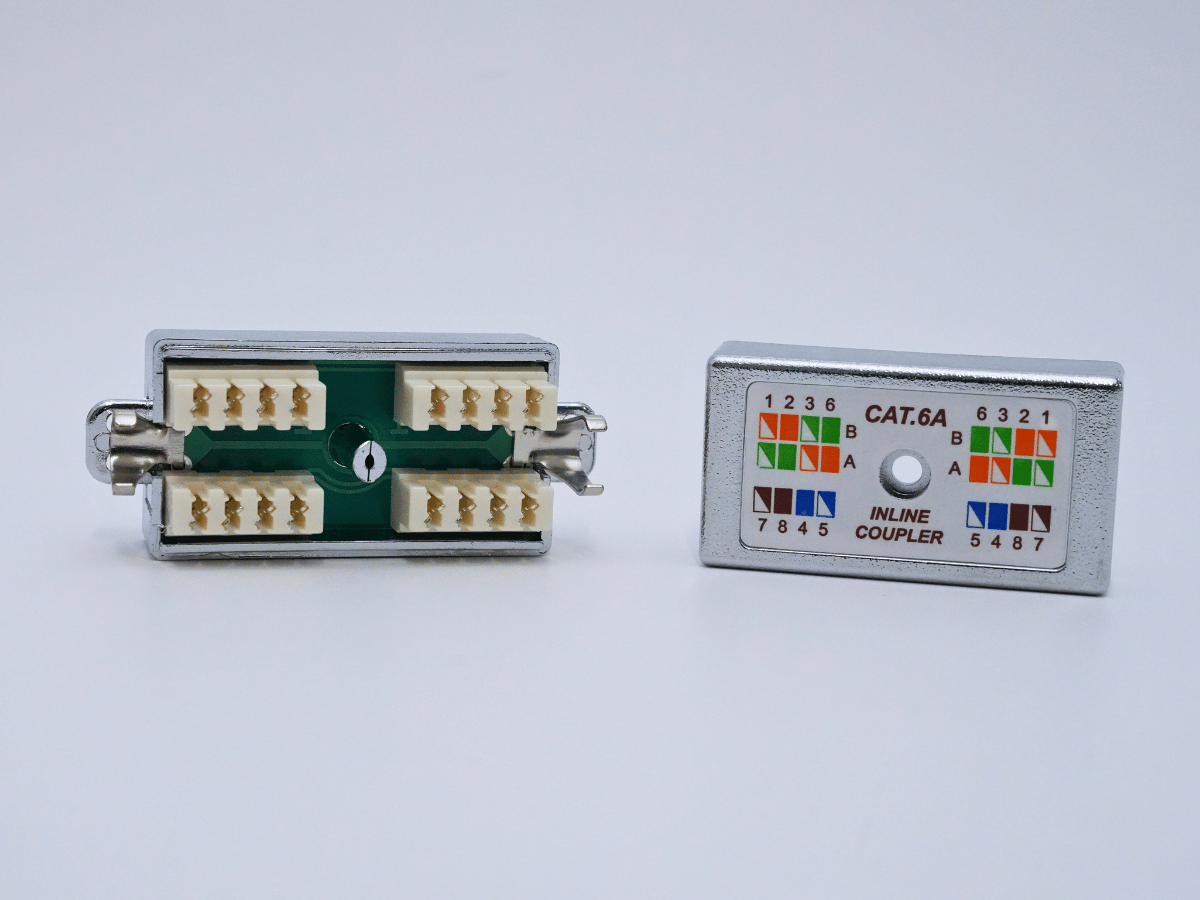

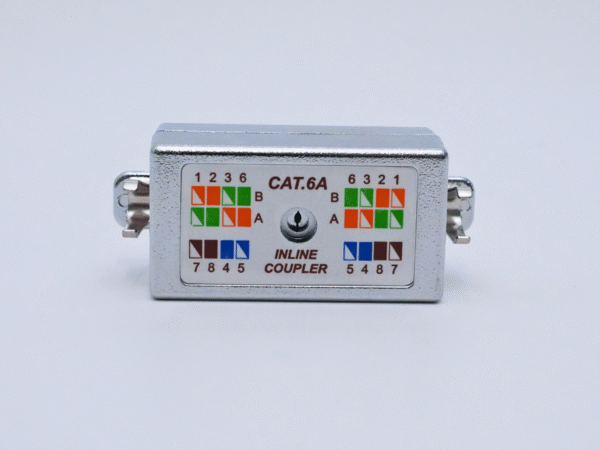

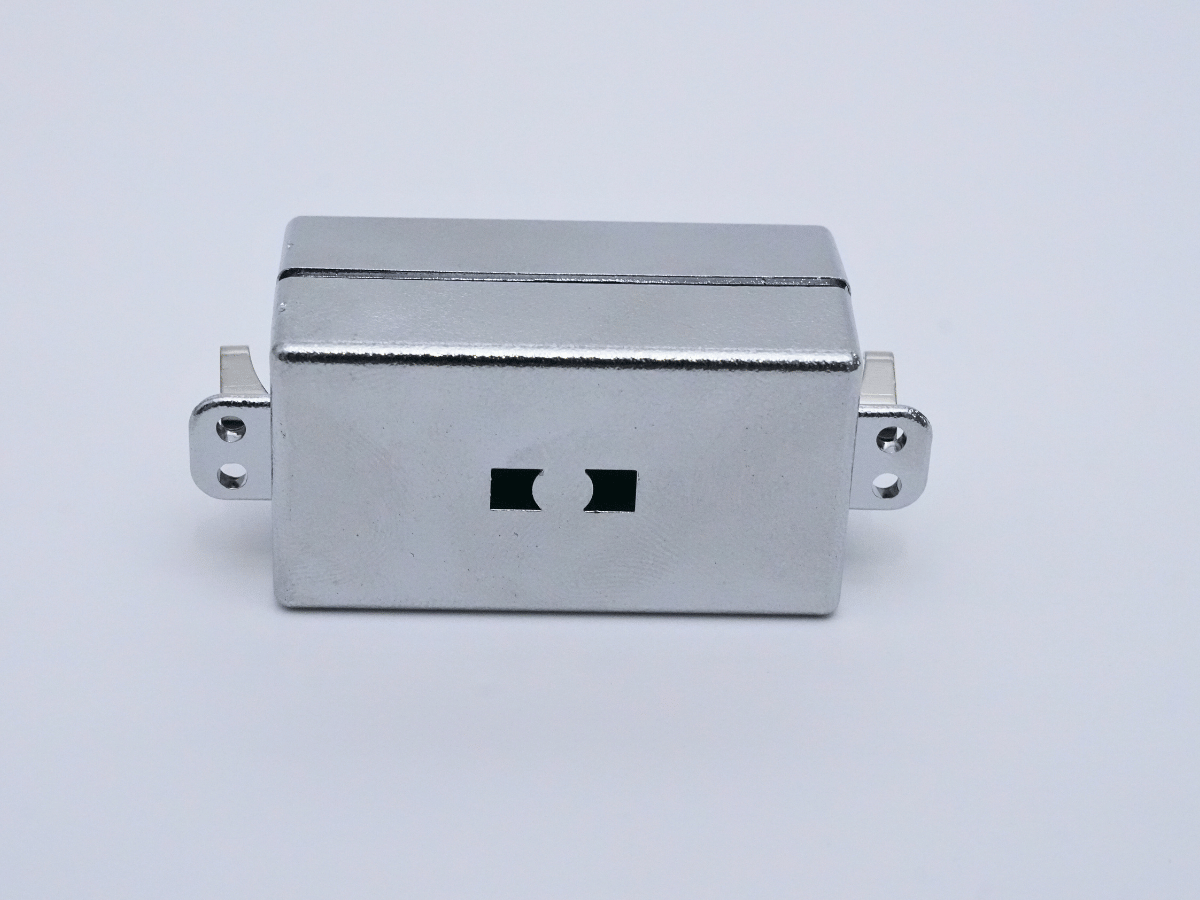

C6A Inline Coupler using IDC termination connects two RJ45 terminated cables, while maintaining signal strength. These are useful for extending the length of your CAT6A cable a few extra feet for a quick and easy installation. CAT6A inline couplers are available in both shielded and unshielded varieties. CAT6A inline couplers include a keystone latch, making it easy to install.

Download Data Sheet

Features

  • Complies to ANSI/TIA 568.2-D & ISO/IEC 11801 Standard
  • Tool less Design
  • Krone style cable jointer
  • Joins 2 solid network cables
  • Covered by the 3C3® Performance Warranty

Specifications

Housing Material: ABS & Chromium Plated

PCB Material: FR_4/UL-94V0

IDC Pin: Phosphor, Bronze and Tinned

IDC Cap: Fireproof PC

Operating Temperature: −40ºC to + 70ºC

Storage Temperature: −40ºC to + 68ºC
