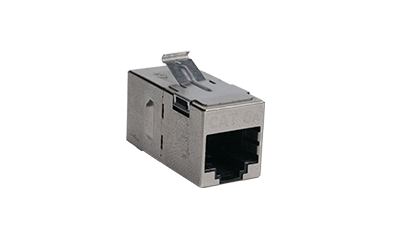

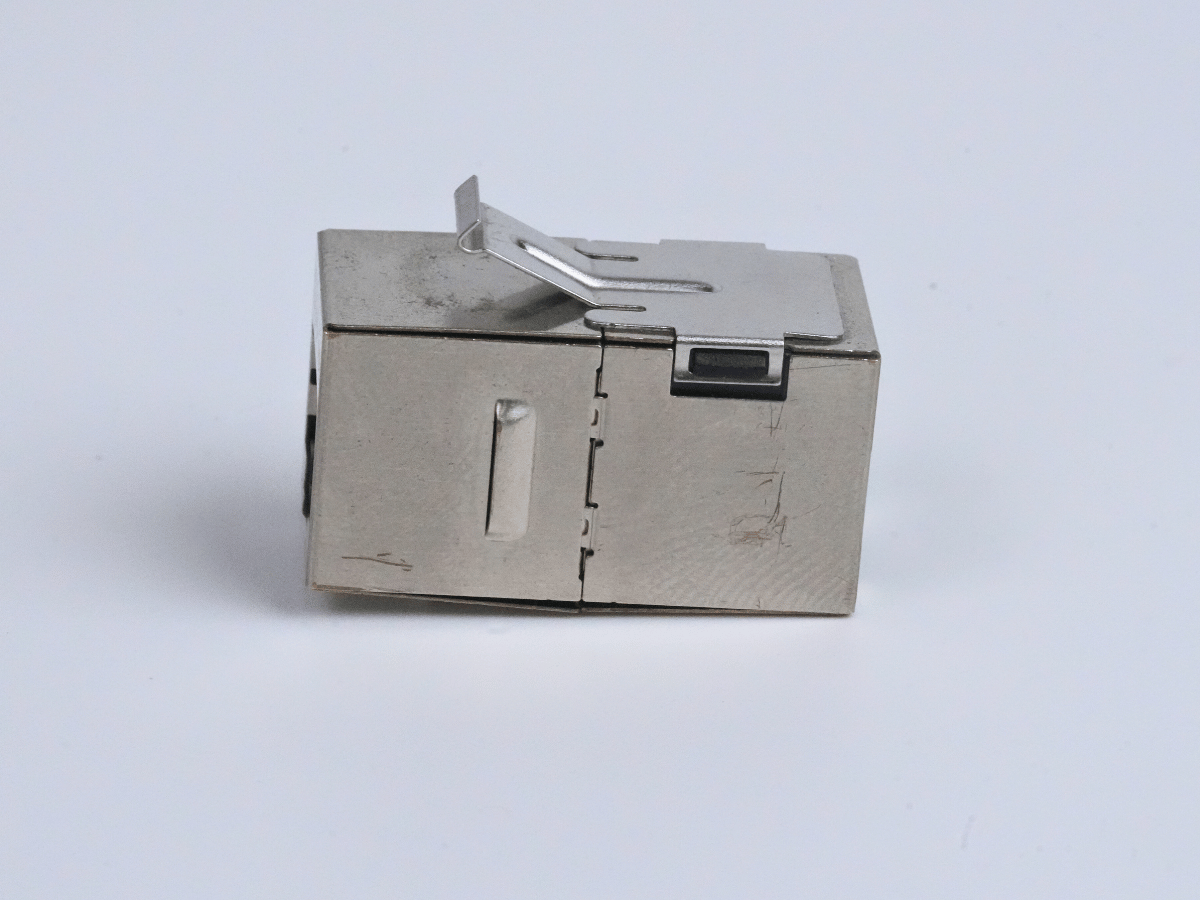

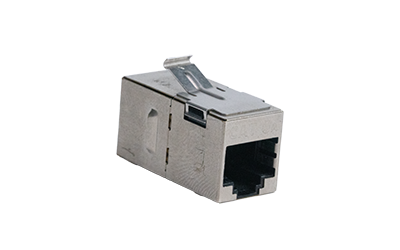

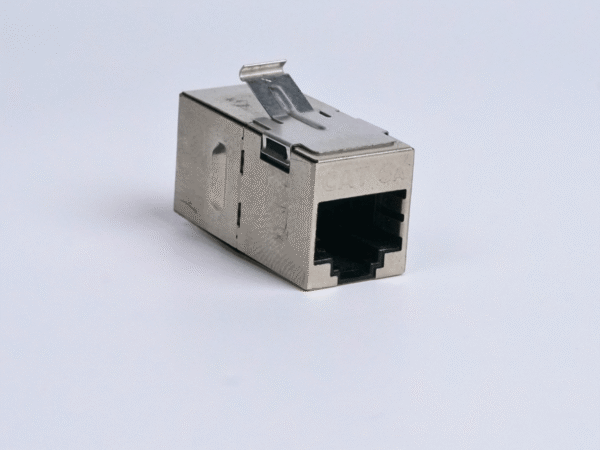

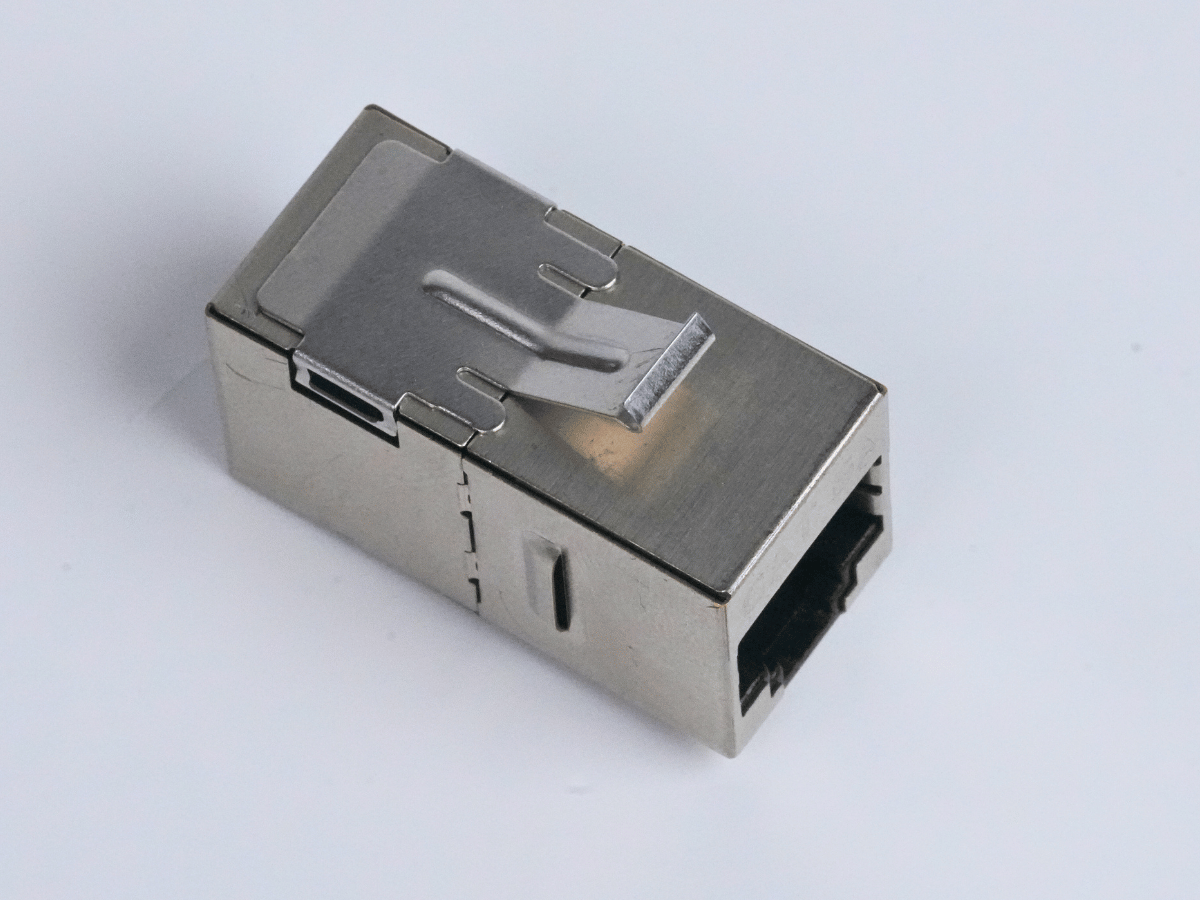

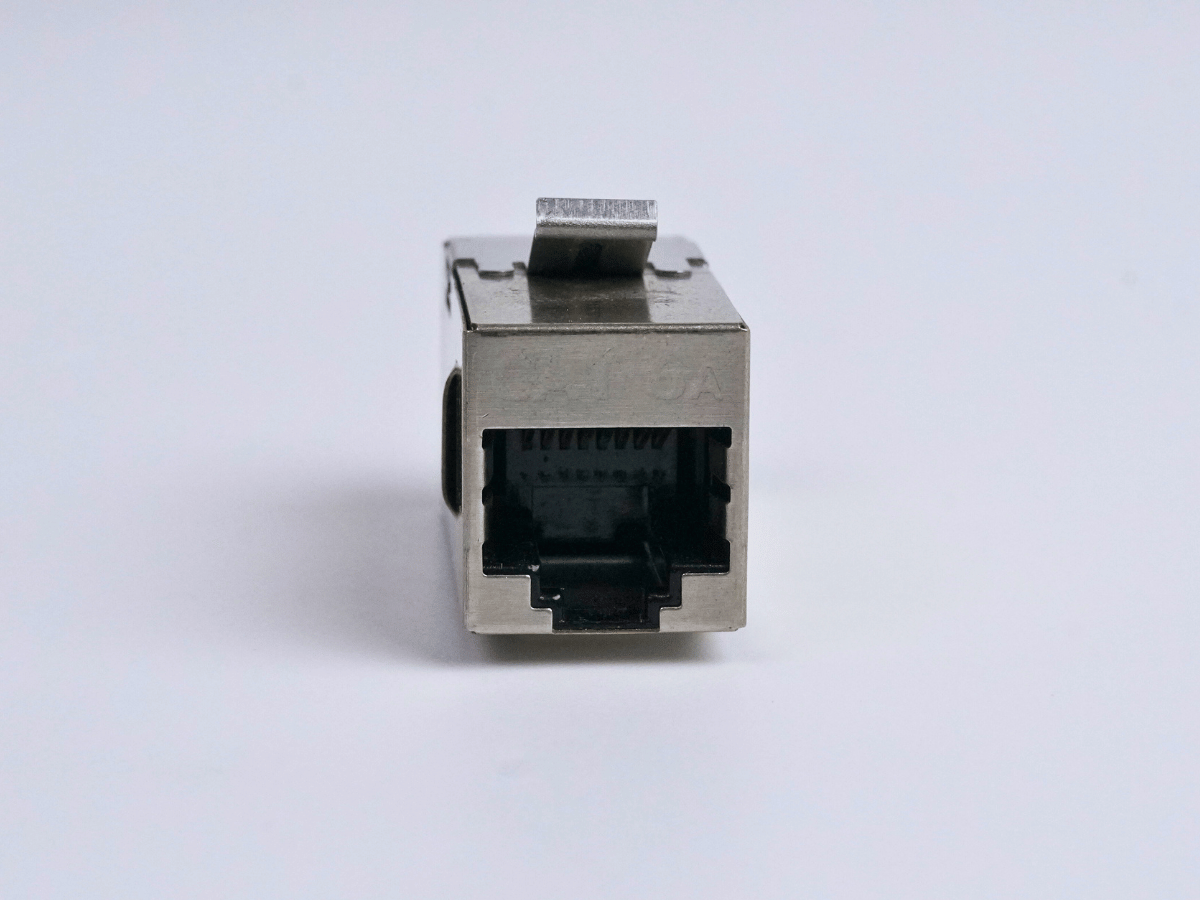

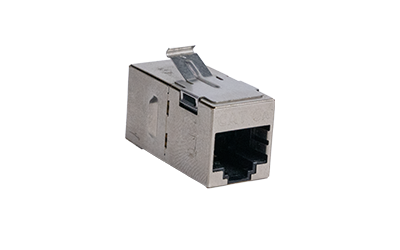

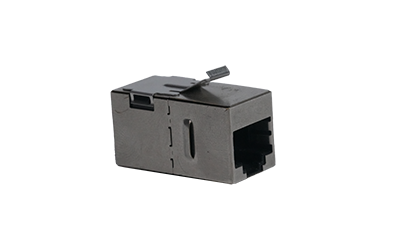

Category 6AInline Coupler Shielded C6A

Part Code: 13319

Description: Inline Coupler Shielded C6A

Shielded Inline Coupler, C6A avoids the need for rear termination and allow two patch cables to be connected directly, no tools required. This inline coupler fits in any keystone wall plate, Patch panel, or surface mount box. Rated for Cat6A network, allows for bandwidth up to 10Gigabit per second.

Features

  • Complies to ANSI/TIA 568.2-D, IEC/ISO 11801 & IEC 60603-7-41
  • Connector Channel with at least 4dB head room
  • Die-cast housing eliminated alien crosstalk
  • Innovative Press fit technology with fully RoHS Compliant (No Solder- No Leads)
  • Cat 6A feed through solution for 10G data Centre solutions. User Friendly and excellent transmission performance
  • Covered under 3C3® Performance Warranty

Specifications

Coupler Housing: Polycarbonate 94V-0 plastic

Wiring Pattern at rear end: T568A & T568B

Operating Temperature: −40ºC to + 60ºC

Storage Temperature: −40ºC to + 68ºC
