ECCS Armoured

Partcode: 10201-0026

Description: High Speed Gigabit Ethernet U/UTP 250MHz Class E, ECCS Tape Armored, Inner FRPVC, Outer PE, Outdoor Cable, C6

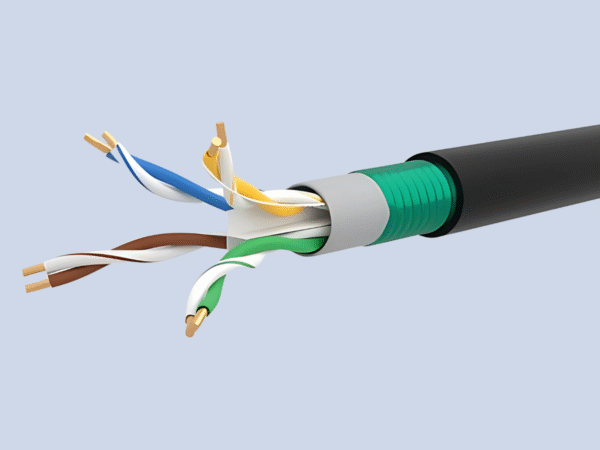

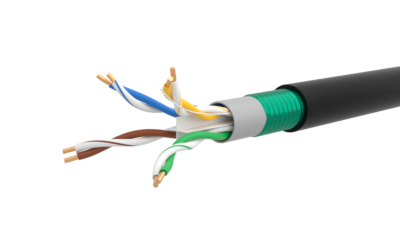

High Speed Gigabit Ethernet UTP 250MHz ECCS Armoured Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, PVC Inner Sheath, Electrolytic Chrome-coated Corrugated Steel Tape Armouring covered with PE Outer Sheath. This cable offers superior Electrical performance meeting 1000Base-T requirement. 3C3® Armoured cables can be used for wide range of industrial environments/application that requires no signal drops or interference.

Download Data Sheet

Features

  • Complies to ANSI-TIA 568.2-D for Category 6, ISO/IEC 11801 for Class E
  • Cable Characterized up to 250 MHz
  • Electrolytic Chrome-coated Corrugated Steel Tape Armoring
  • Maximum throughput, reliability and performance
  • 4 Pair Separator Design
  • UL Listed and Channel performance Verified by ETL
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23

Conductor Material: Solid bare Copper

Inner Sheath: PVC

Outer Sheath: PE

Overall cable diameter: 10.5±0.5mm

Operating Temperature:−20ºC to +75ºC

Storage Temperature: −20ºC to +70ºC
