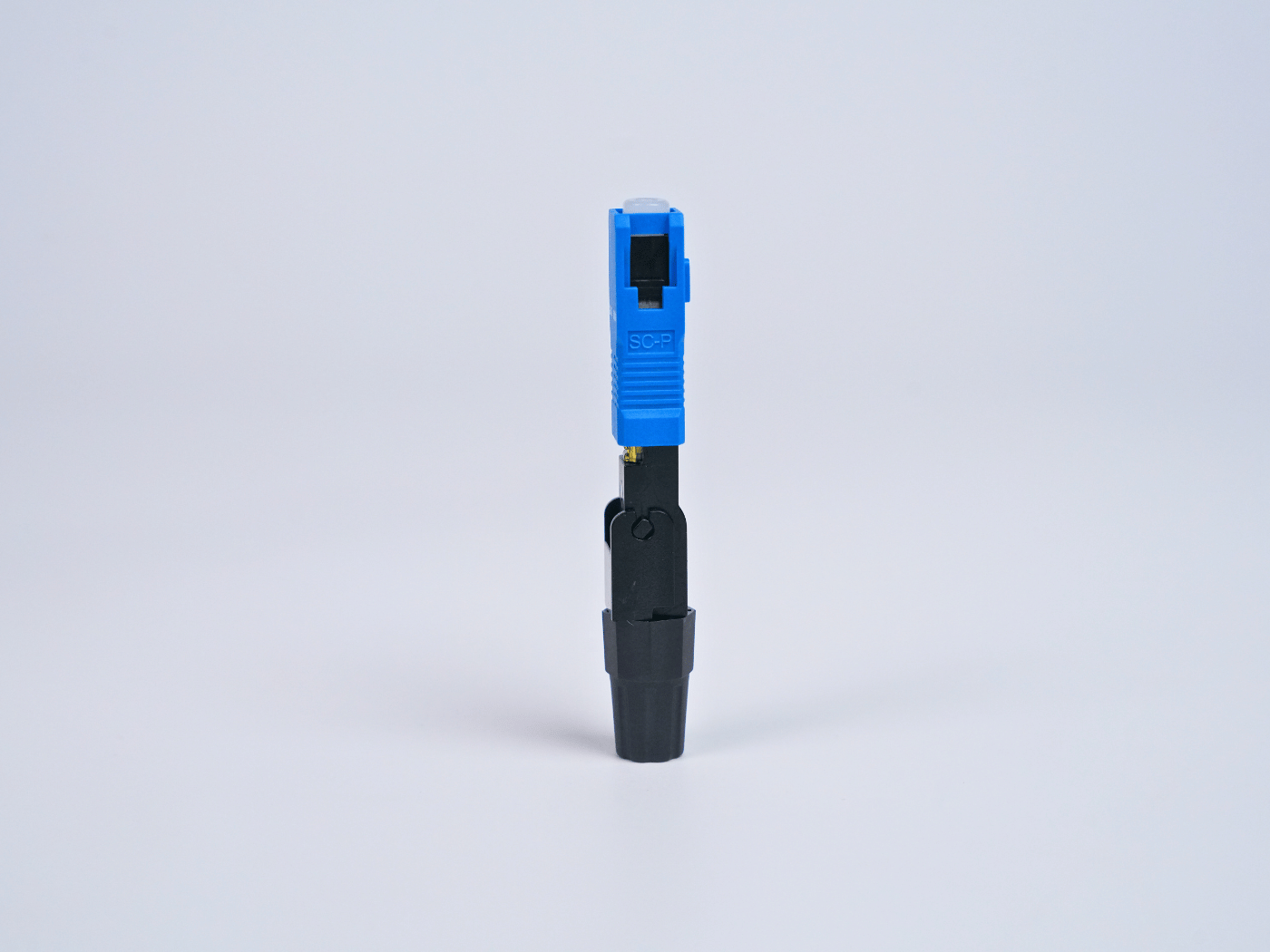

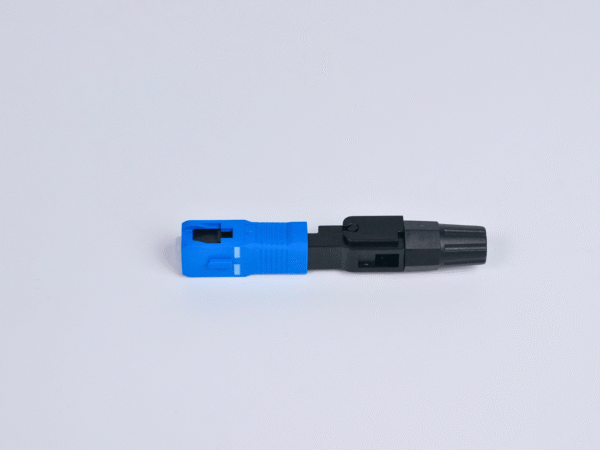

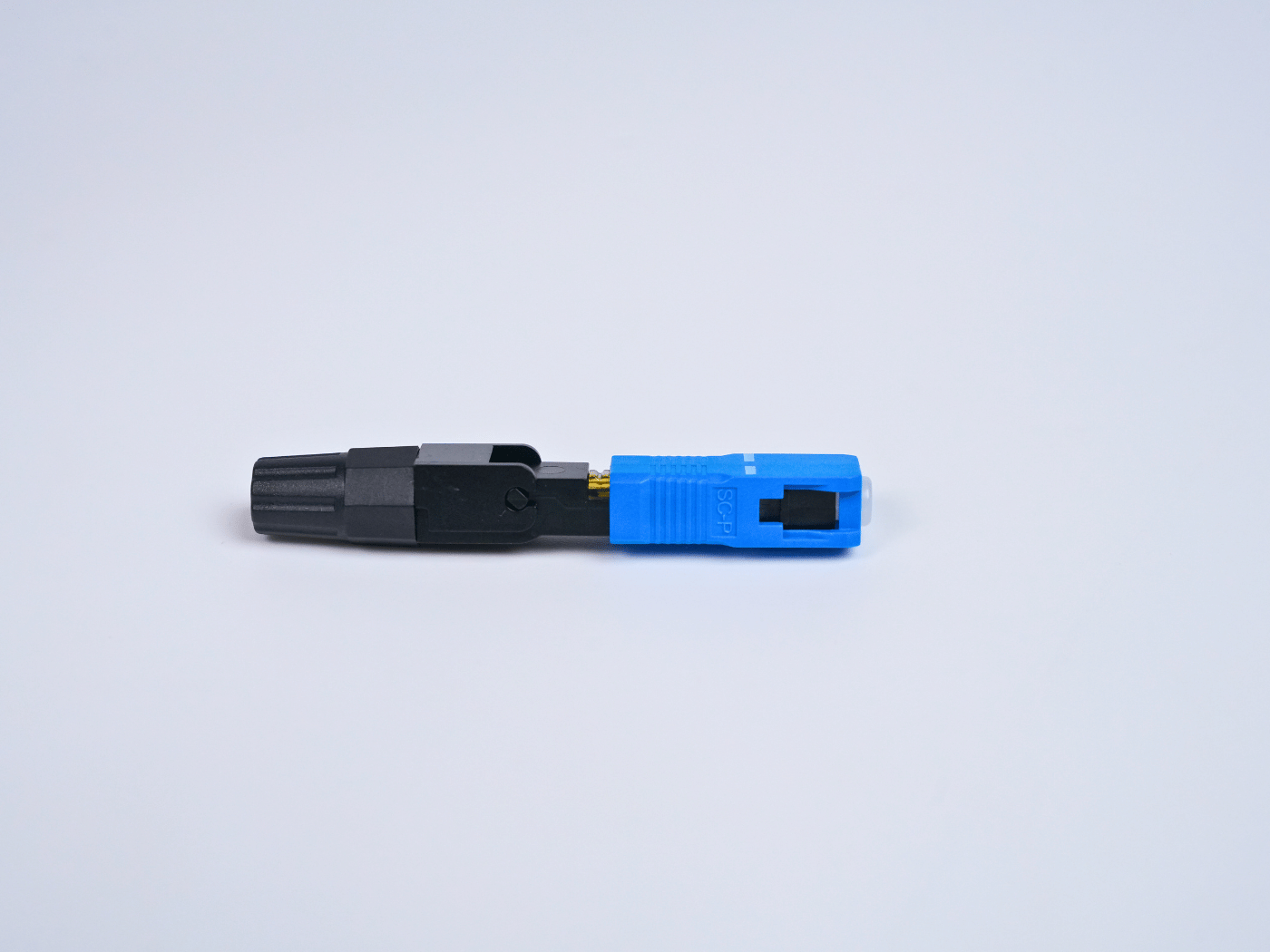

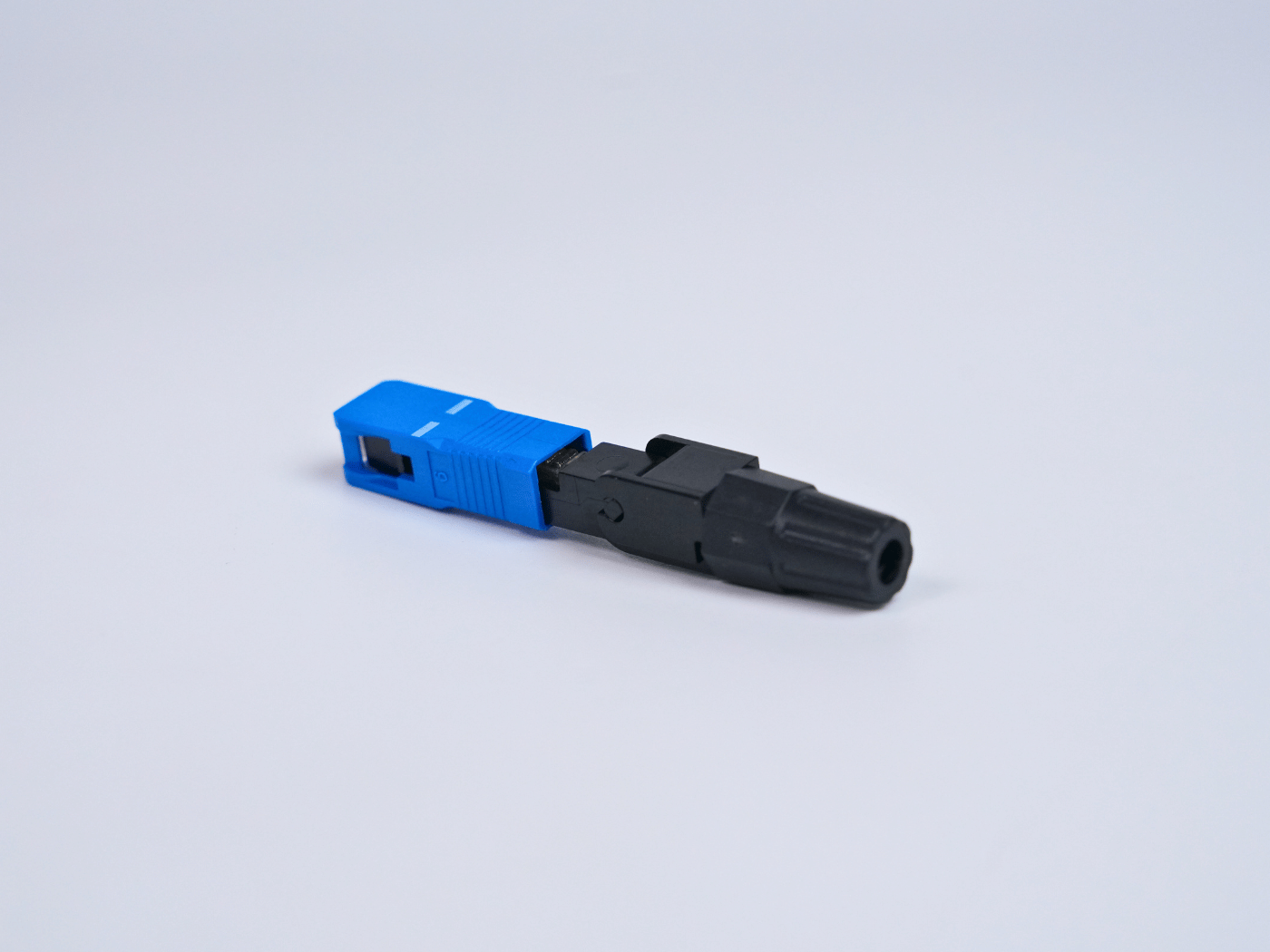

Fast Field Assembly Connector

Partcode: 91200-0000

Description: Fast Field Assembly Connector Single Mode, SCA

SC/UPC and SC/APC fast connector are factory pre-polished, field-installable connectors. Proven mechanical splice technology ensures precision fiber alignment and index-matching gel combine to offer an immediate low loss termination

Download Data Sheet

Features

  • Pre-embedded fiber and pre-polished ceramic ferrule(UPC/APC) ensures excellent optical performance
  • All connectors tested for insertion loss and return loss before leaving the factory
  • Less than 1 minute operation time, easy to assembly
  • Suitable for 250 μm and/or 900 μm buffered fibers
  • Over 98% splicing success rate for single time assemble, total splicing success rate
  • More than 5 times for re-assembling

Specifications

Fiber Mode: SM

Return Loss, Typical: ≥60dB(APC), ≥50dB(UPC)

Operating Temperature: -20ºC to + 75ºC
