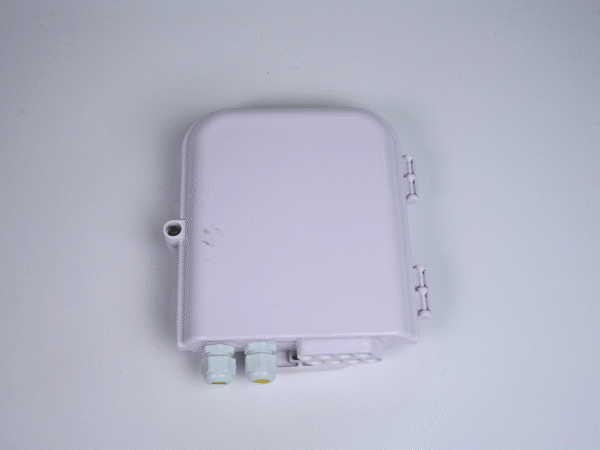

Fiber Distribution Box

Partcode: 830DE-1000

Description: Fiber Distribution Box SCU X Port

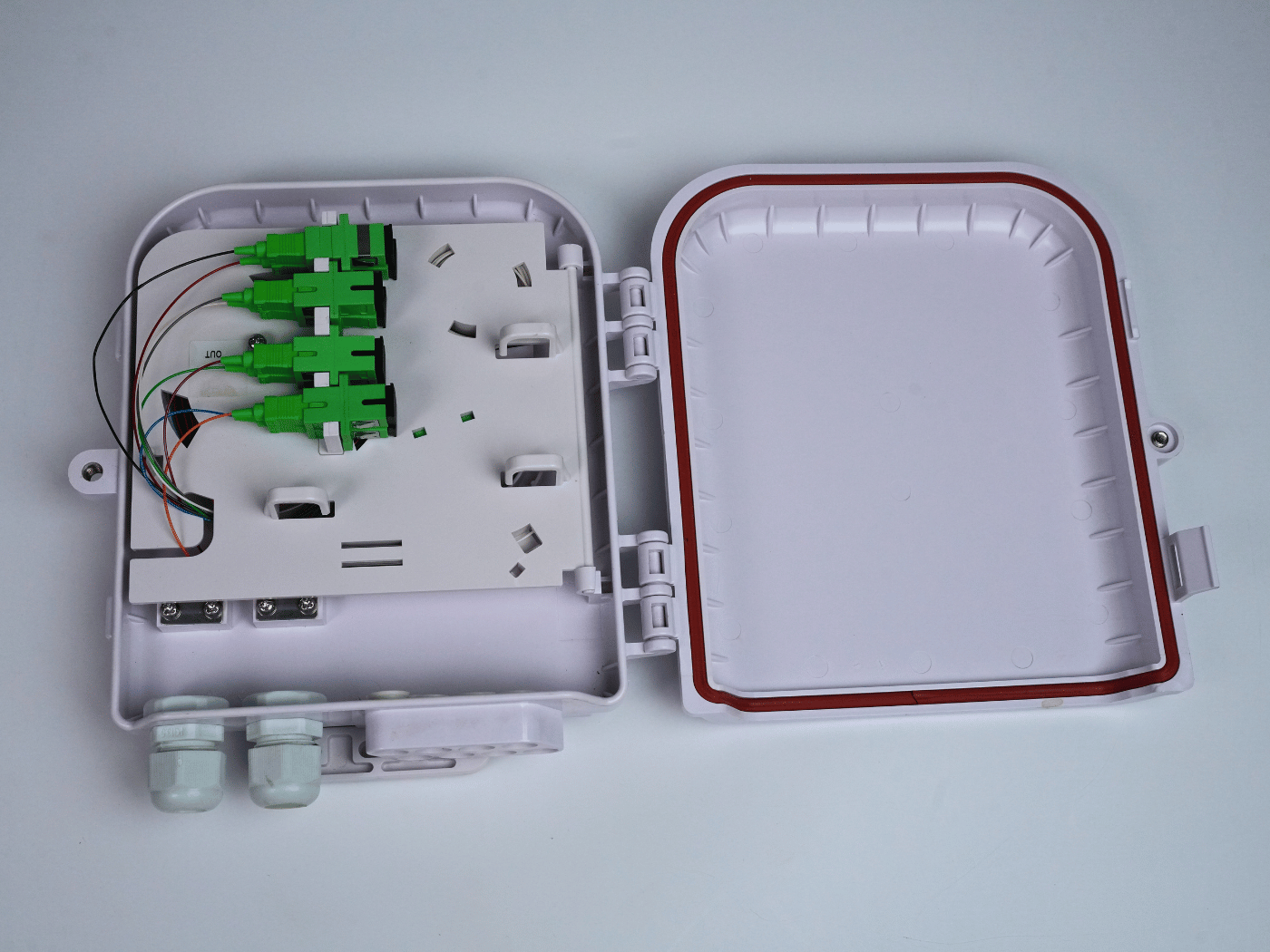

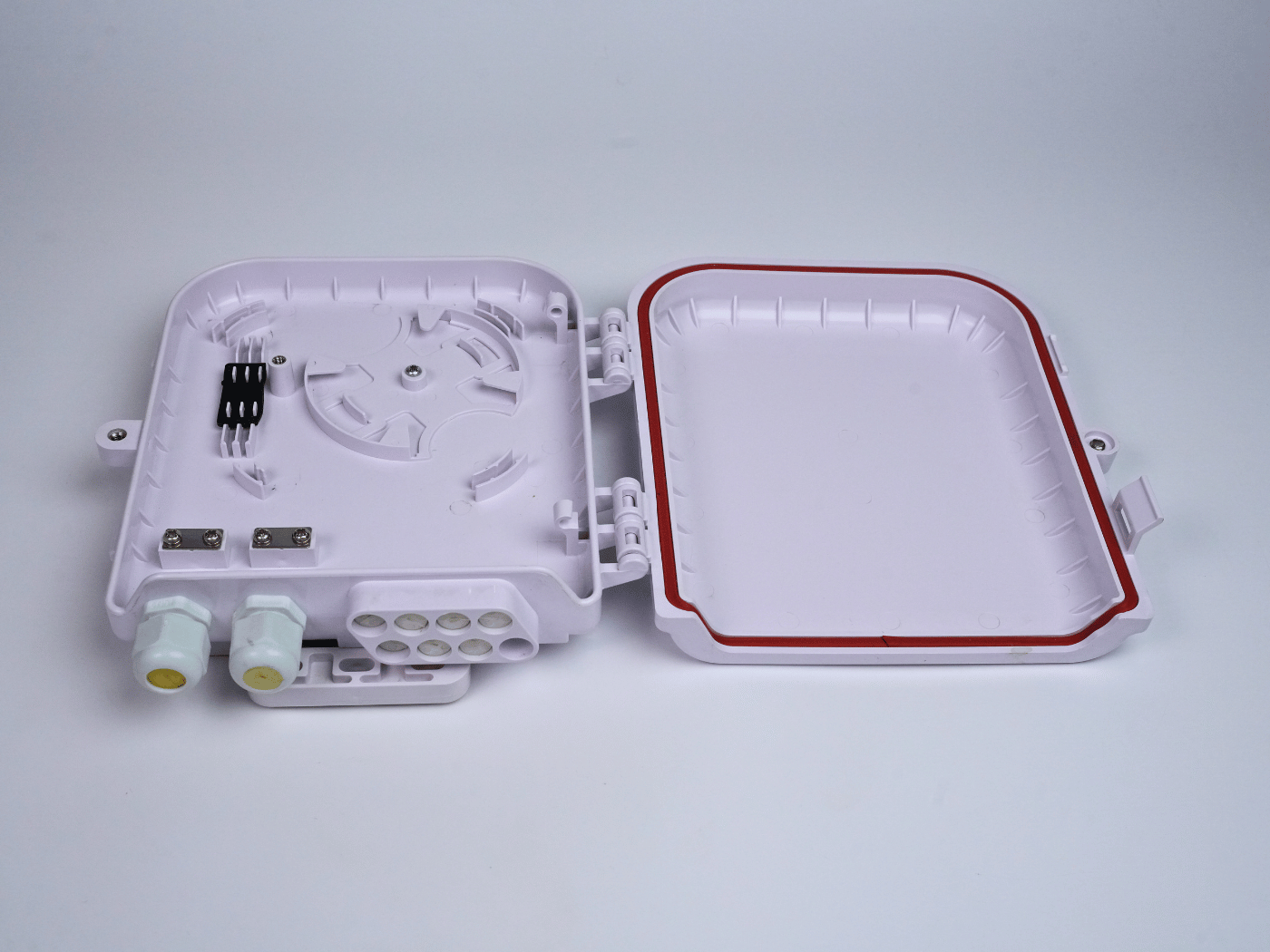

The Fiber Distribution Box allows easy and quick installation of cables. The fiber splicing, splitting, distribution can be done in this box and it provides solid protection and management for the FTTx network building.

Download Data Sheet

Features

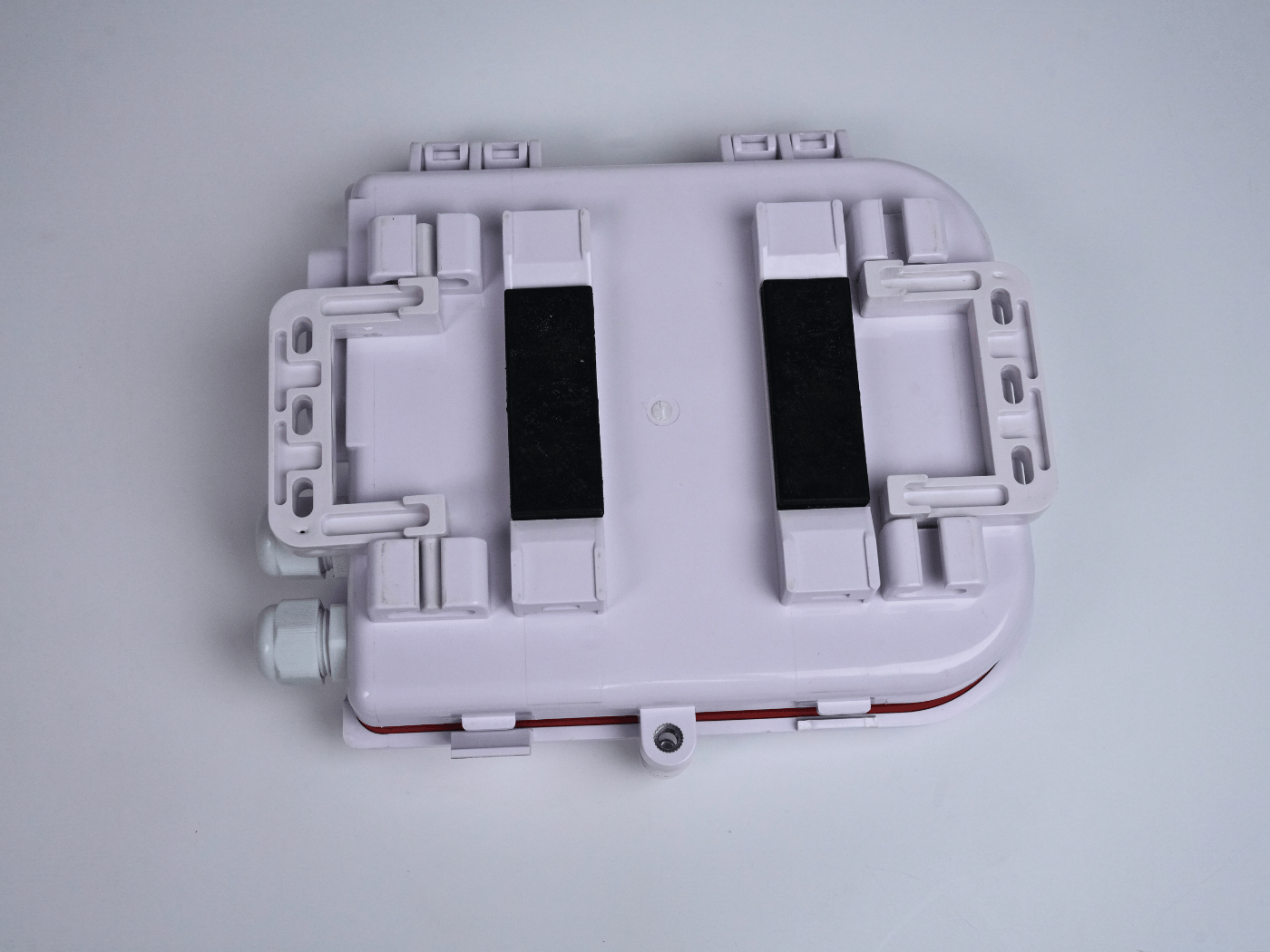

  • Support both wall and Pole mounting
  • IP 55 rated
  • Accommodate 1×4 and 1×8 PLC Splitters
  • Industry Standard User interface and made of high impact plastic
  • Anti-UV, Ultra violet resistant and rainfall resistance
  • Support upto 8FTTH drops
  • Covered under 3C3® Performance Warranty

Specifications

Material: PC+ABS

Fiber Capacity Maximum: 8F

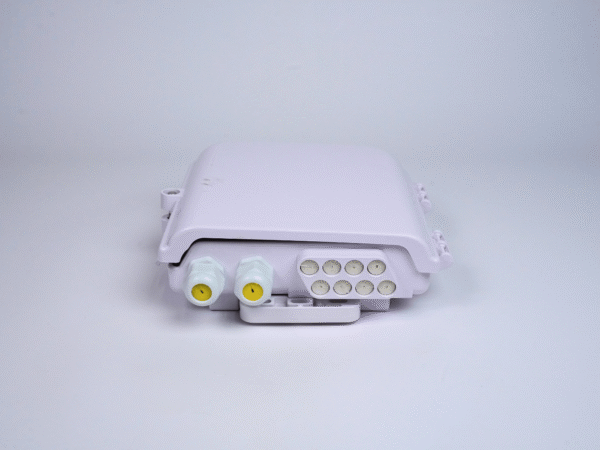

Ports: 2 inlet 8 outlet ports

Adapter Types: SC/LC

Operating Temperature: -40ºC ~ +60ºC
