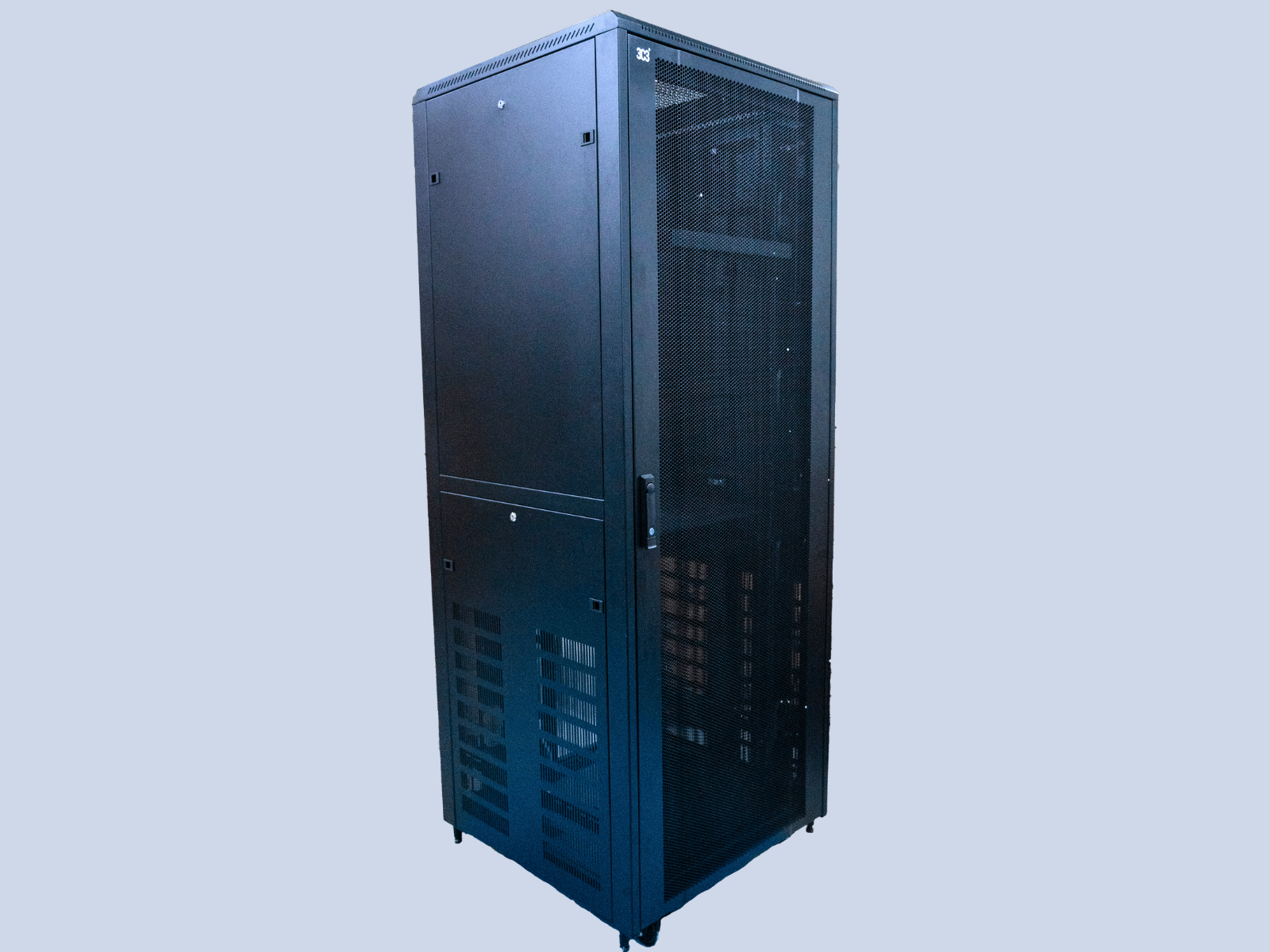

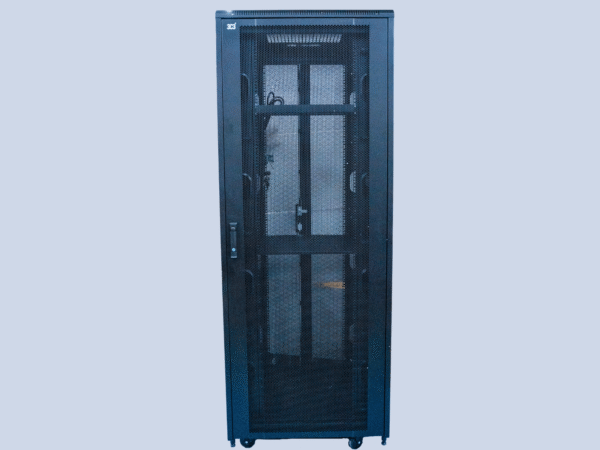

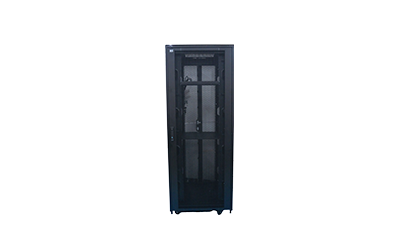

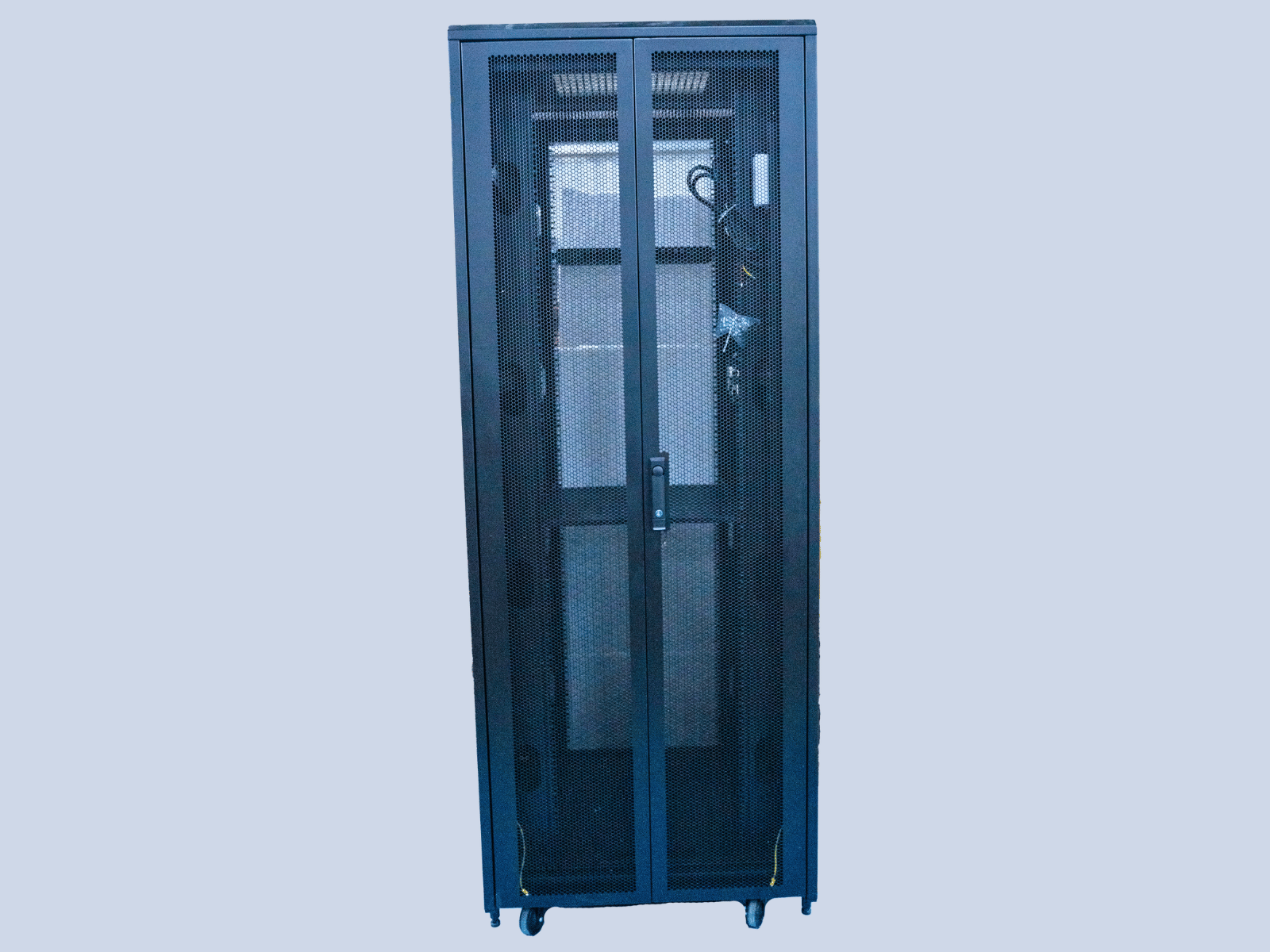

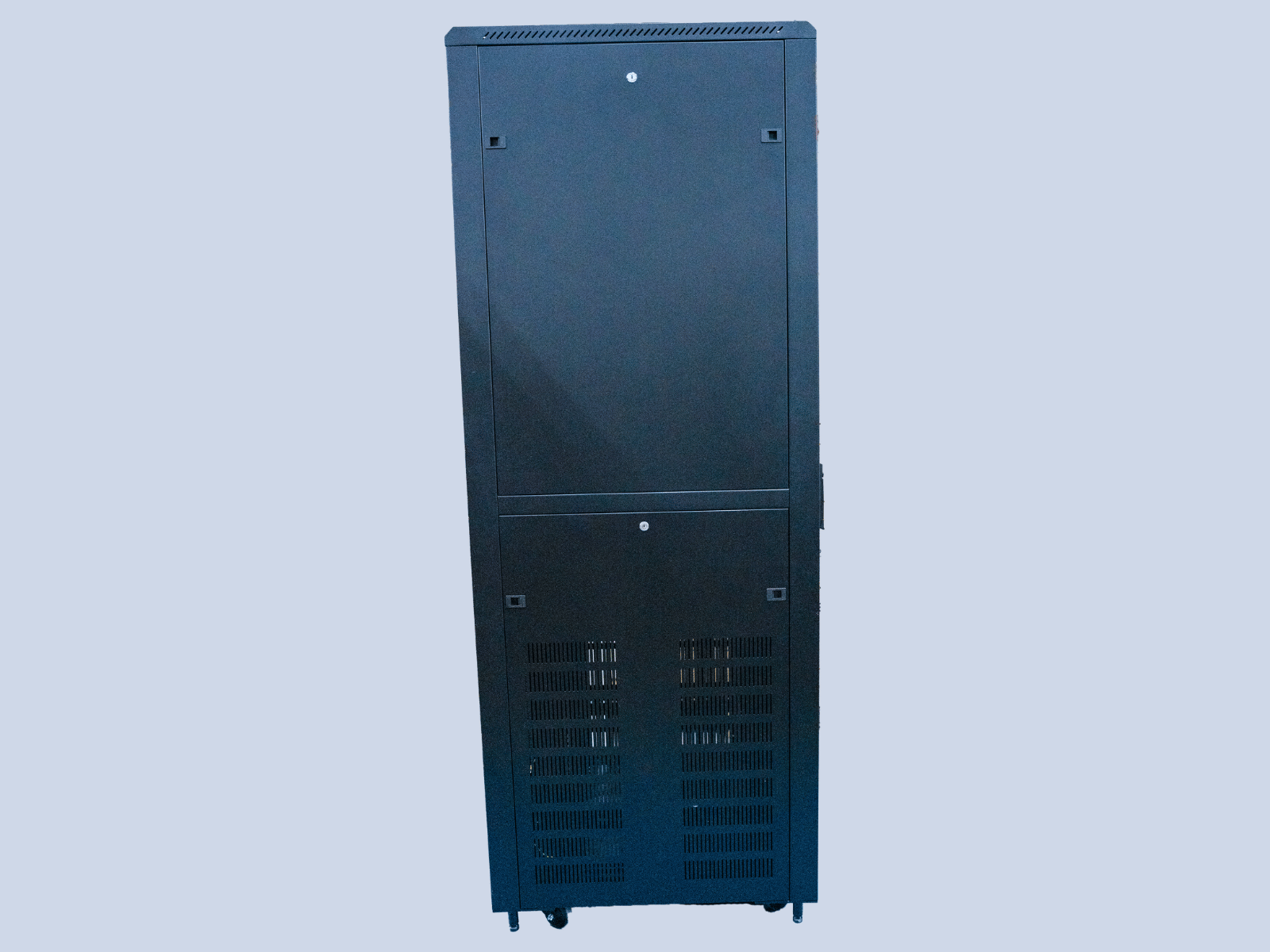

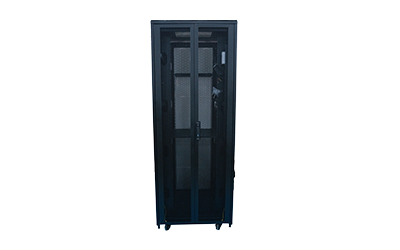

Floor Mount Rack

Partcode: 430DE-XXXX

Description: Floor Mount Rack

3C3® floor mount racks are multipurpose racks which are scalable and flexible for servers, networking, audio-video, data center and Networking labs applications.

Download Data Sheet

Features

  • Conforms to DIN 41494 and ISO 9001-2015 Standards
  • Rack main body is made up of CRCA Steel (1mm -2mm)
  • Available in 22U~47U height with 600 & 800mm width configuration and 800, 1000 & 1200mm depth configurations
  • Adjustable 19” equipment mounting angles with U marking provides the better mounting flexibility, maximize the usable mounting space.
  • Adjustable depth mounting slots
  • Top and bottom panels are with ventilation and cable entry
  • Provision has been made to mount exhaust fans on the top of the rack for the all models
  • Powder coated finish with Seven Tank pre-treatment process
  • Grounding provision is made

Specifications

Construction: Welded

Basic Frame: Steel four pillars with steel end frame

Static Load: 750 kgs with castors, 1200 kgs with base frame/plinth
