GI Armoured cable

Partcode:10201-0016

Description: High Speed Gigabit Ethernet UTP 250 MHz Class E GI Armored, Inner FRPVC,Outer FRPVC,Outdoor Cable,C6

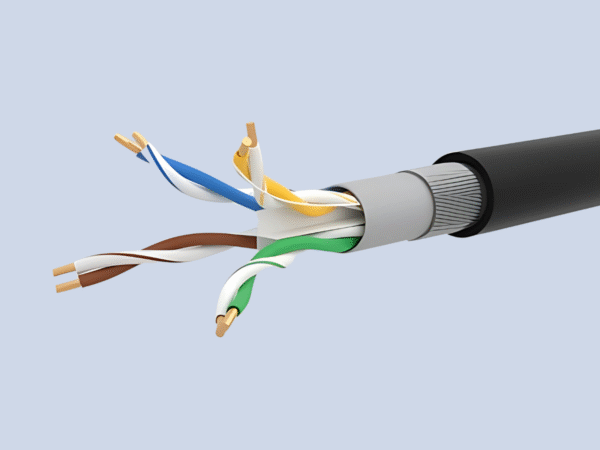

High Speed Gigabit Ethernet GI Armoured UTP 250MHz Class E / Category 6 Cable Consists of HDPE Insulated 8 x 23AWG Solid Bare Electrolytic Grade Copper Conductors Twisted as 4 Pairs, PVC Inner Sheath and Galvanized Iron Wires Covered with FRPVC Outer Jacket. This cable guarantees superior Electrical performance meeting 1000Base-T requirement for Outdoor Applications.

Download Data Sheet

Features

  • Complies to ANSI-TIA 568.2-D for Category 6 & ISO/IEC 11801 for Class E
  • Cable Characterized up to 250 MHz
  • Galvanized Iron Wire Armoring
  • 4 Pair Separator Design
  • UL Listed and Channel performance Verified by ETL
  • Covered under 3C3® Performance Warranty

Specifications

Conductor AWG: 23

Conductor Material: Solid bare Copper

Inner Sheath: PVC

Outer Sheath: FRPVC

Overall cable diameter : 9.60±0.50mm

Operating Temperature:−20ºC to +75ºC

Storage Temperature: −20ºC to +70ºC
