High Density Fiber Panel Unloaded,2U 288F

Partcode: 66043-2000

Description: High Density Fiber Panel 288F 1U Unloaded

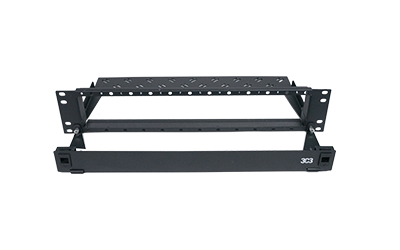

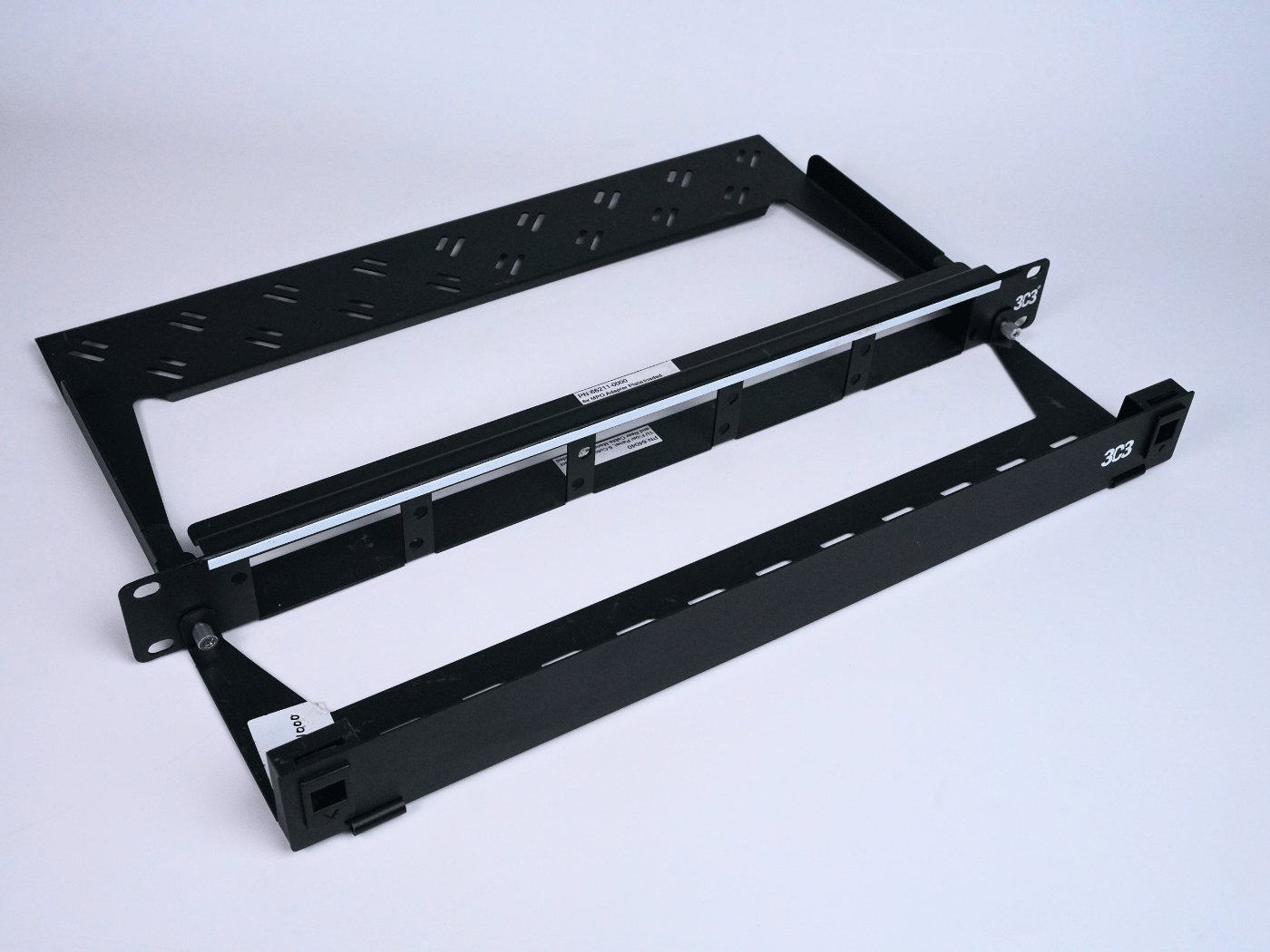

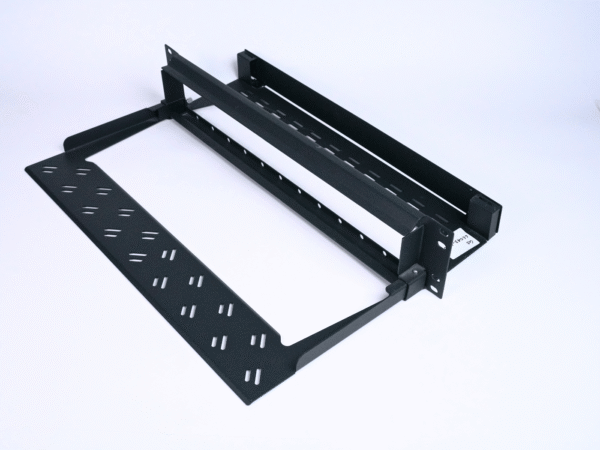

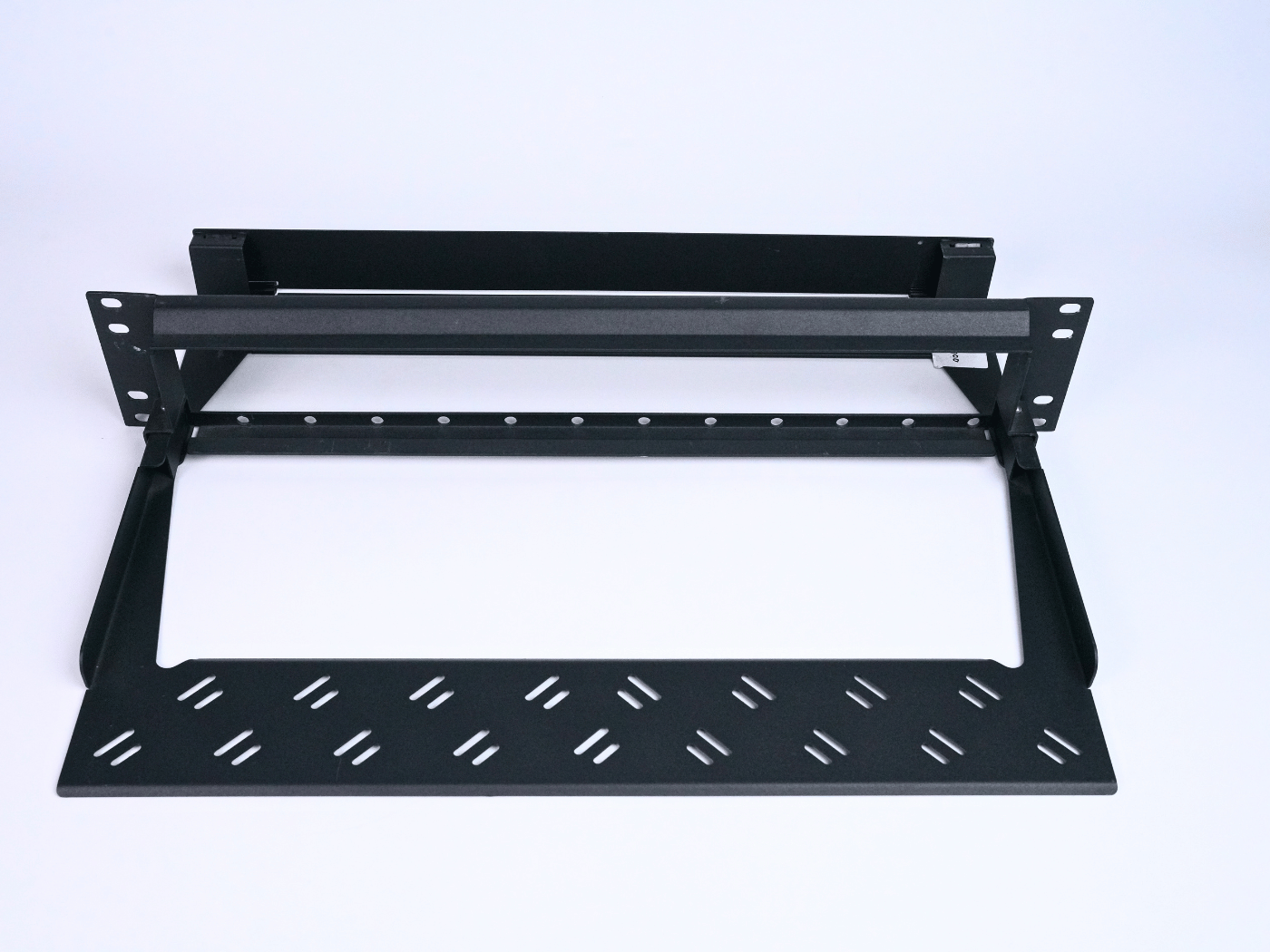

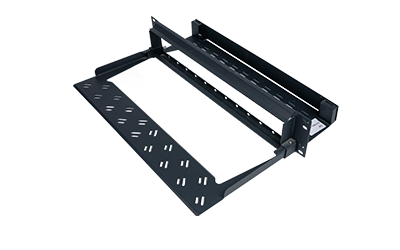

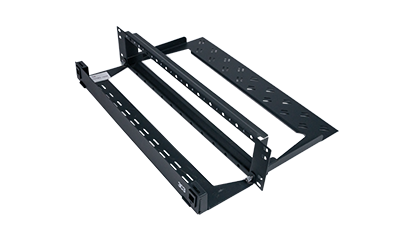

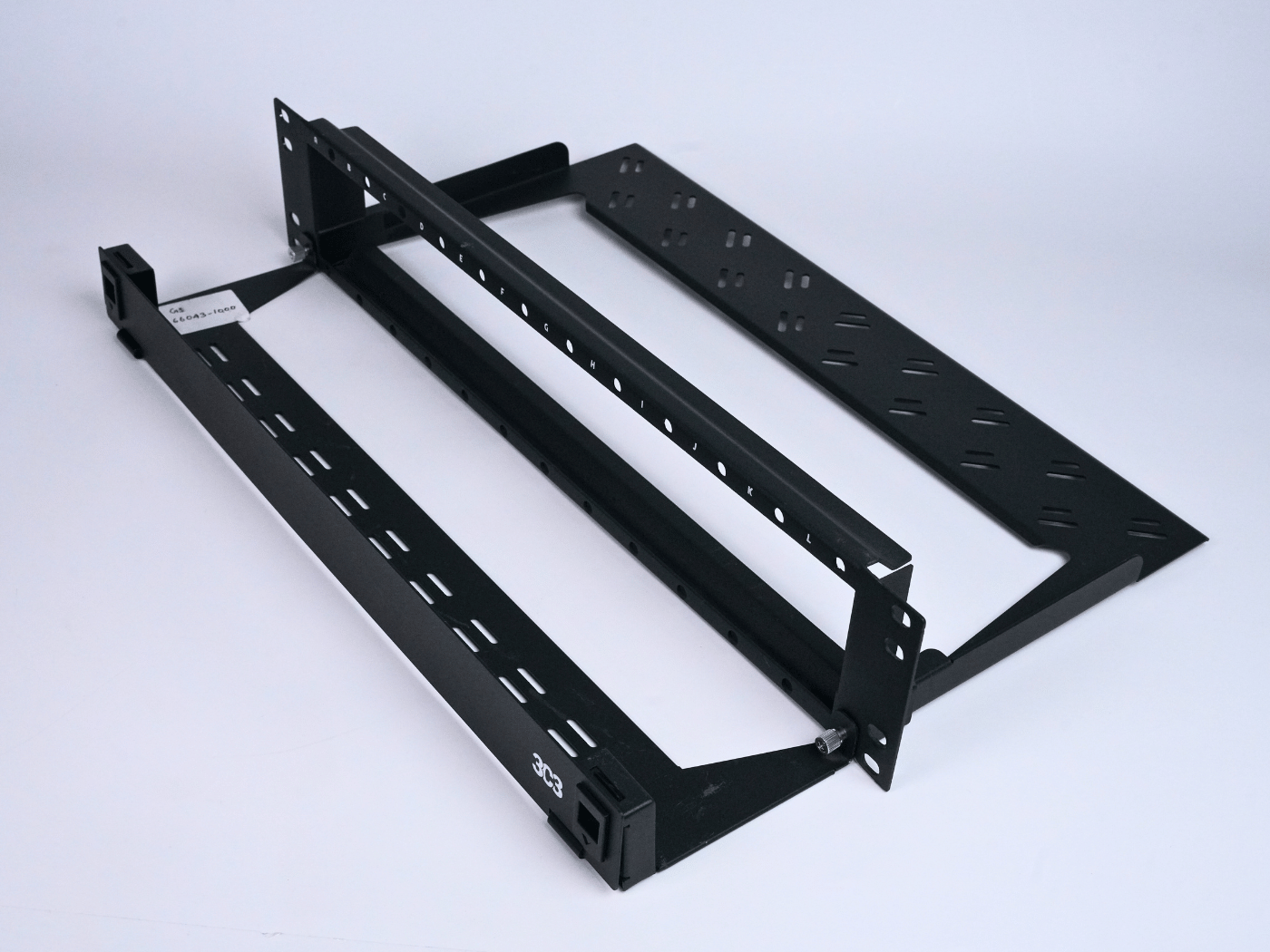

3C3® High Density Panel is specially designed to accommodate high density cabling in high end Data Center and Telecommunication central office environment. The shallow depth of High- Density Panel makes it suitable for low depth copper racking systems or Telecommunication ODFs. The 2U 19” 288 fiber,12 slots MPO Panel contains factory controlled and tested Modules that can be installed in it. Different types of cassettes are available to deliver optimum Performance and reliability. Integrated fiber management features are provided to secure trunk cables, separate patch cords and maintain safe bend radius during fiber routing.

Features

  • Complies to IEC61754-7, ANSI/TIA-604-5 FOCIS 5, ANSI/TIA 472.AAAD and ISO/IEC 11801
  • Modular design with high density special mini module upto24LC adapter ports and switch to MTP/MOP Connection
  • 1U patch panel capacity come up to 288F fully loaded with 12 modules.
  • Unique tool -free installation design for easy and fast assembly and installation
  • Factory pre-terminated and tested modules are available.
  • 19‘’ rack mount, the panel is made of cold rolled steel sheet, Front cable management is made of Acryllic Plate. Convenient for cable management

Specifications

Body Material: SPCC (Cold rolled steel sheet)

Operation Temperature: -20°C~+55°C

Storage Temperature: -20°C~+60°C
