Multi Mode Patch Cord

Partcode: 7B0D0-XXXX

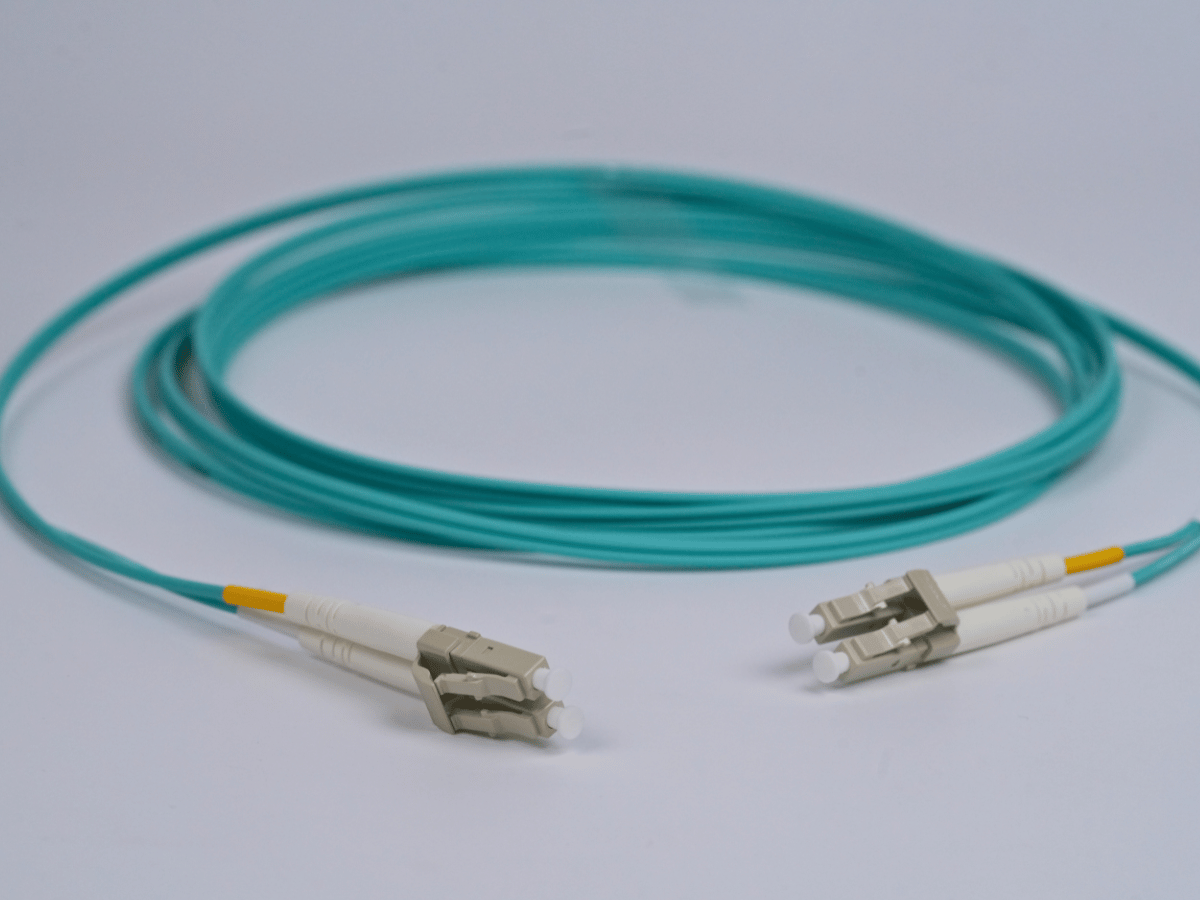

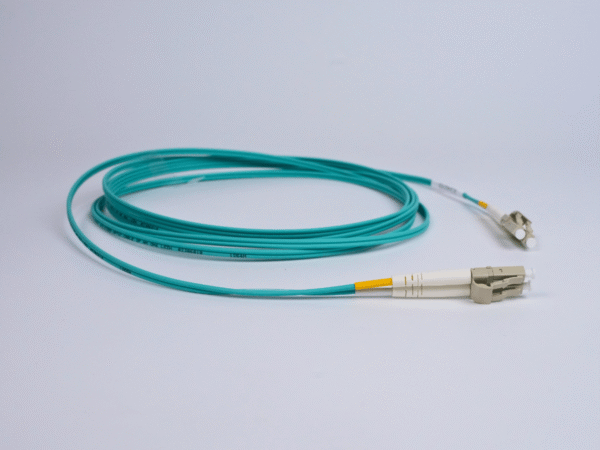

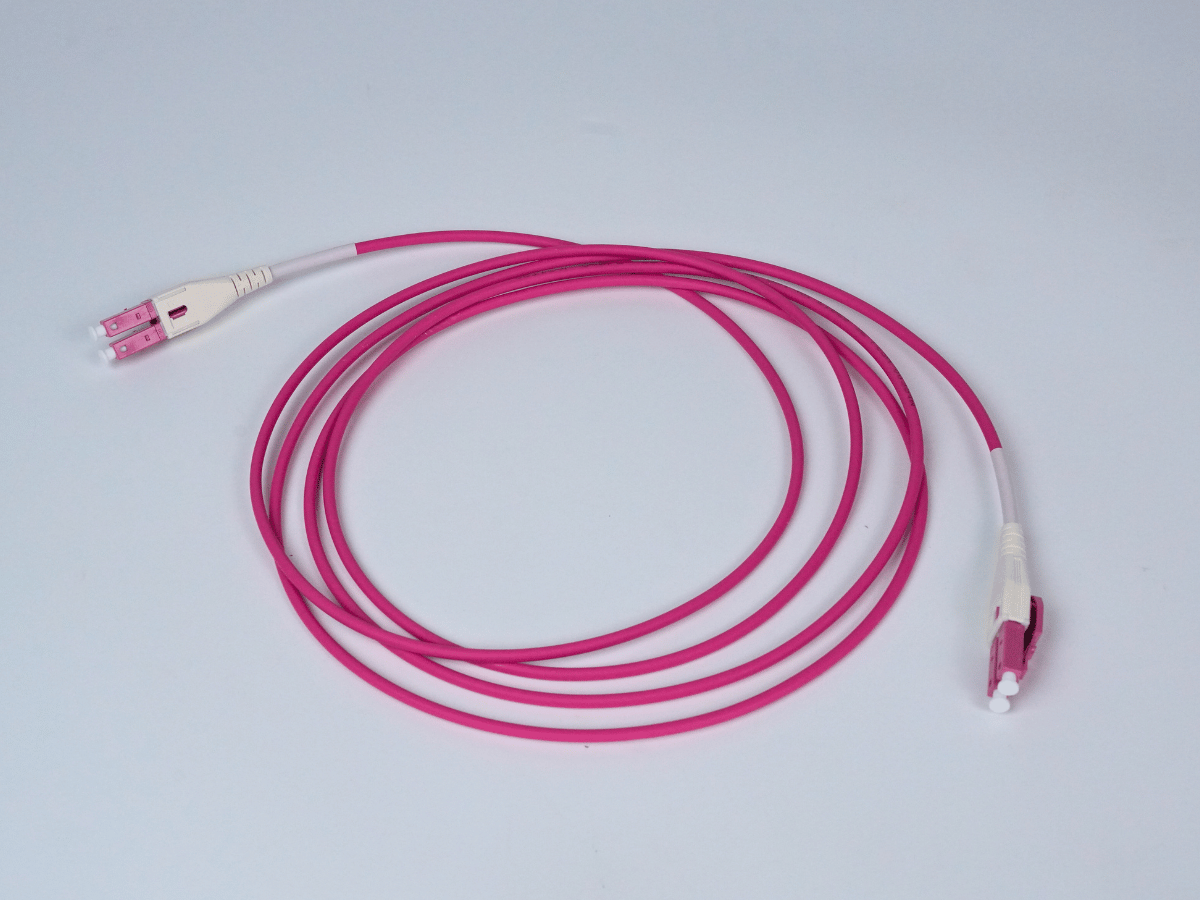

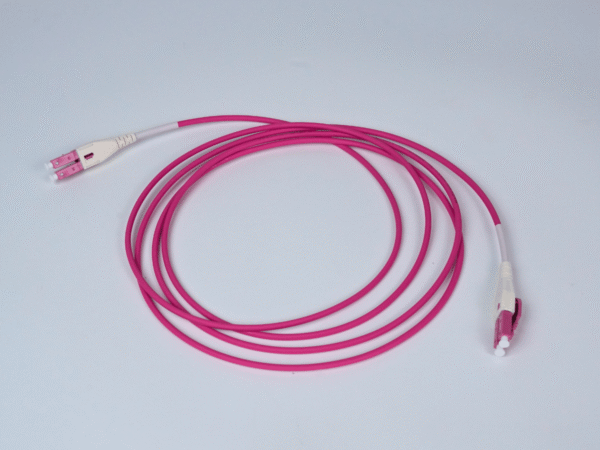

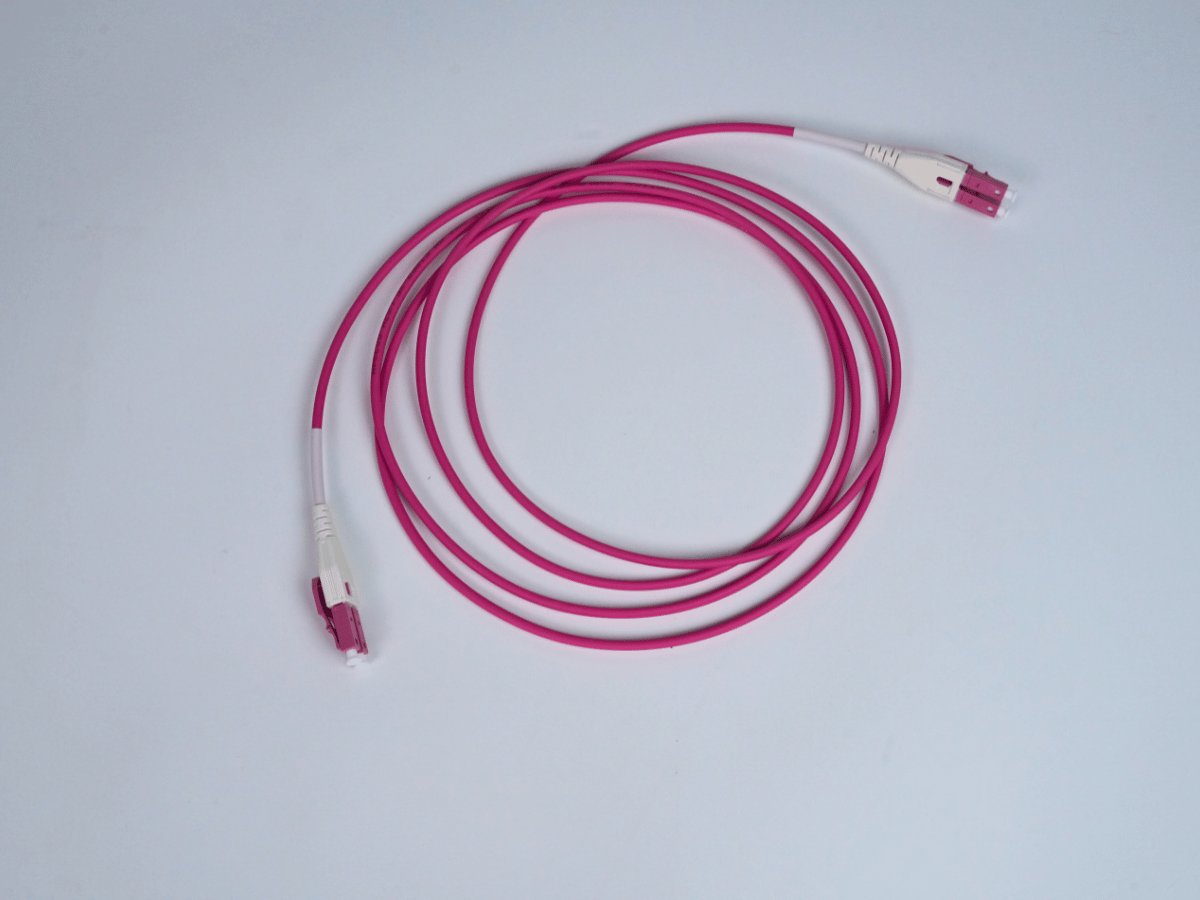

Description: High Link LCU to LCU Fiber Optic Patch Cord, Duplex, MM

Fiber optic patch cord comprises of two tight buffer fibers housed within a common outer jacket in OM2, OM3, OM4 Multi Mode variants. Both ends are terminated with high performance hybrid or single type connector comprising of SC, ST, FC, LC, MTRJ, E2000 connector in simplex and duplex.

Download Data Sheet

Features

  • Conformance to ANSI/TIA-568.3-D, IEC 61300-3-4, IEC 61300-3-6, IEC 60874-1
  • All Assemblies Comes with Factory test reports
  • Bend insensitive fibers.
  • LSZH jacket, meets IEC-60332 (LSZH) flame rating for standard safety compliant.
  • Available in UPC Connectors
  • Duplex and Simplex versions, Uniform and hybrid patch cord versions available.
  • Covered under 3C3® Performance Warranty

Specifications

Colored Coating Diameter : 250±15μm

Tight Buffer Diameter : 700±50μm

Strength Member : Aramid yarn

Cable Dimension : 1.80±0.10mm x4.00±0.20mm

Jacket Material : LSZH

Jacket Color : Aqua

Opertaing Temperature: −10ºC to + 60ºC

Storage Temperature: −40ºC to + 70ºC
