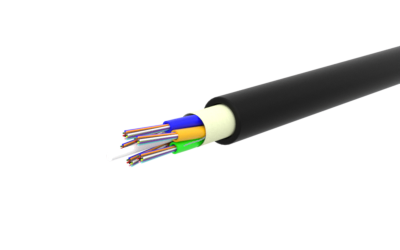

Multimode Indoor/ Outdoor Fiber Optic Cable (48F)

Partcode: 52C22-0XXX

Description: High Link Fiber Optic, Multi loose Tube Indoor/Outdoor Cable, Gel free, 6F/T, CSM FRP, Single Sheath Black LSZH, MM, 48cores

The Indoor/outdoor fiber optic cables are PBT Multi loose tube with colored fiber cores. Theconstructions are of dry water-blocking material with Non-Metallic Central Strength member. Thiscable has LSZH outer jacket makes it perfect for indoor/outdoor applications.

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.3-D, Telcordia GR-20, IEC 60794-2, ISO/IEC 11801, ISO/IEC 24702
  • LSZH jacket
  • Water proof layer & excellent moisture resistance provided
  • Excellent consistence performance
  • Covered under 3C3® Performance Warranty

Specifications

FibeFiber Count: 48

rs per loose Tube: 12

Outer sheath: LSZH

Nominal Cable diameter: 10.5±0.5mm

Drum length: 2km ± 5%

Operating Temperature: -40ºC~+70ºC

Storage Temperature: -40ºC~+70ºC
