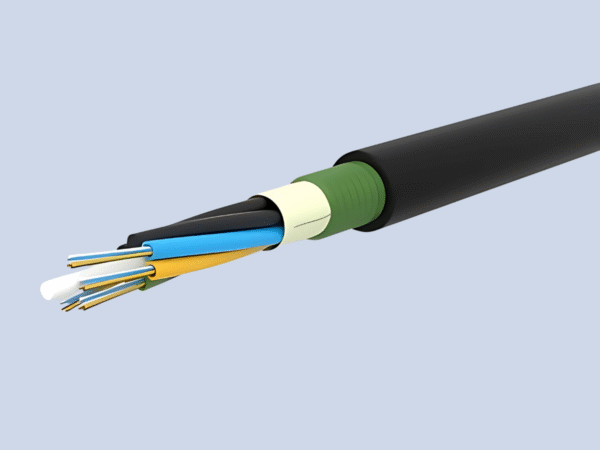

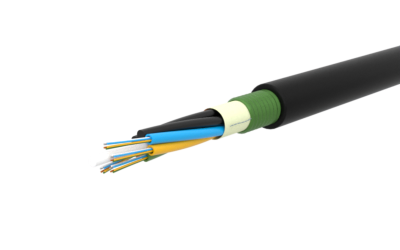

Multimode Outdoor Armoured Fiber Optic Cable,LSZH

Partcode: 53C32-0024

Description: High Link Fiber Optic, Armoured, Multi loose Tube Outdoor Cable, Gel filled, 6F/T, CSM FRP, Single Sheath LSZH, MM, 24cores

The Outdoor fiber optic cables are PBT Multi loose tube with colored fiber cores. The constructions are of water-blocking gel material with Non-Metallic Central Strength member & ECCS armoring. This cable has LSZH outer jacket and makes it perfect for outdoor applications

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.3-D, Telcordia GR-20, IEC 60794-2, ISO/IEC11801, ISO/IEC 24702
  • ECCS Armoring
  • Waterprooflayer & excellent moisture resistance provided
  • Excellent consistence performance
  • Covered under 3C3® Performance Warranty

Specifications

Fiber Count: 24

Fibers per loose Tube: 6

Outer sheath: LSZH

Nominal Cable diameter: 12.5±0.5mm

Drum length: 2km ± 5%

Operating Temperature: -40ºC~+70ºC

Storage Temperature: -40ºC~+70ºC
