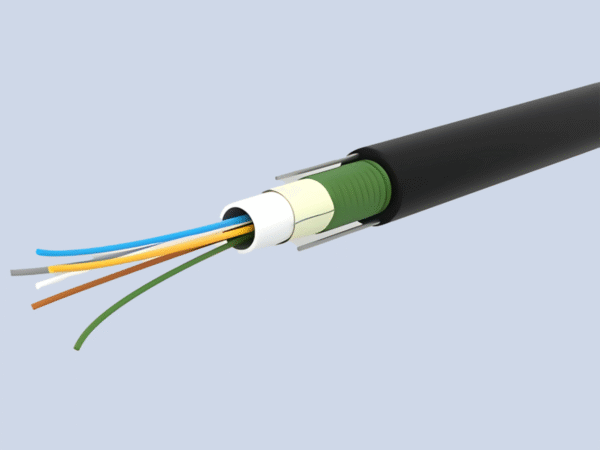

Multimode Uniloose tube Outdoor Armoured Fiber Optic Cable (6F~12F)

Multimode Uniloose tube Outdoor Armoured Fiber Optic Cable (6F~12F)

Partcode: 53C11-0XXX

Description: High Link Fiber Optic, Armoured, Uni loose Tube Outdoor Cable, Gel filled, Peripheral Steel rod Strength Member, Single Sheath Black HDPE, MM, 6cores

Multi-Mode Uniloose tube, single sheath ECCS tape armored optical fiber cable is suitable for duct and aerial applications. We supply Uniloose tube cable of 6 fiber cores. Fiber cable is perfectly suited for both gigabit Ethernet and 10 gigabit Ethernet campus and backbone applications.

Download Data Sheet

Features

  • Complies to ANSI/TIA-568.3-D, Telcordia GR-20, IEC 60794-2/60794-3-10, ISO/IEC 11801, ISO/IEC 24702
  • HDPE UV Resistance jacket
  • ECCS tape Armoring
  • Water proof layer & excellent moisture resistance provided
  • Excellent consistence performance
  • Covered under 3C3® Performance Warranty

Specifications

Fiber Count: 6/12

Fibers per loose Tube: 1

Outer sheath: HDPE

Nominal Cable diameter: 9±0.5mm

Drum length: 2km ± 5%

Operating Temperature: -40ºC~+70ºC

Storage Temperature: -40ºC~+70ºC
