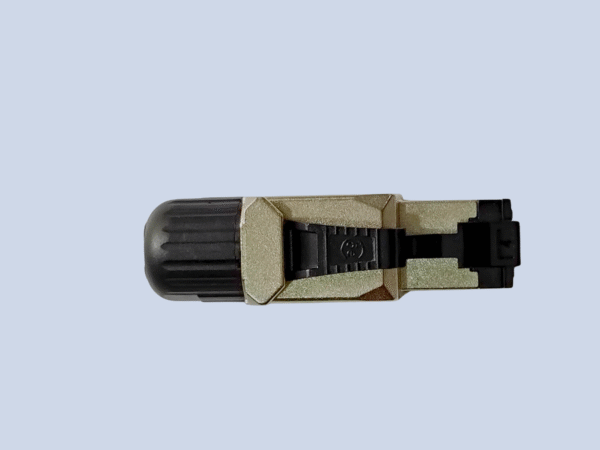

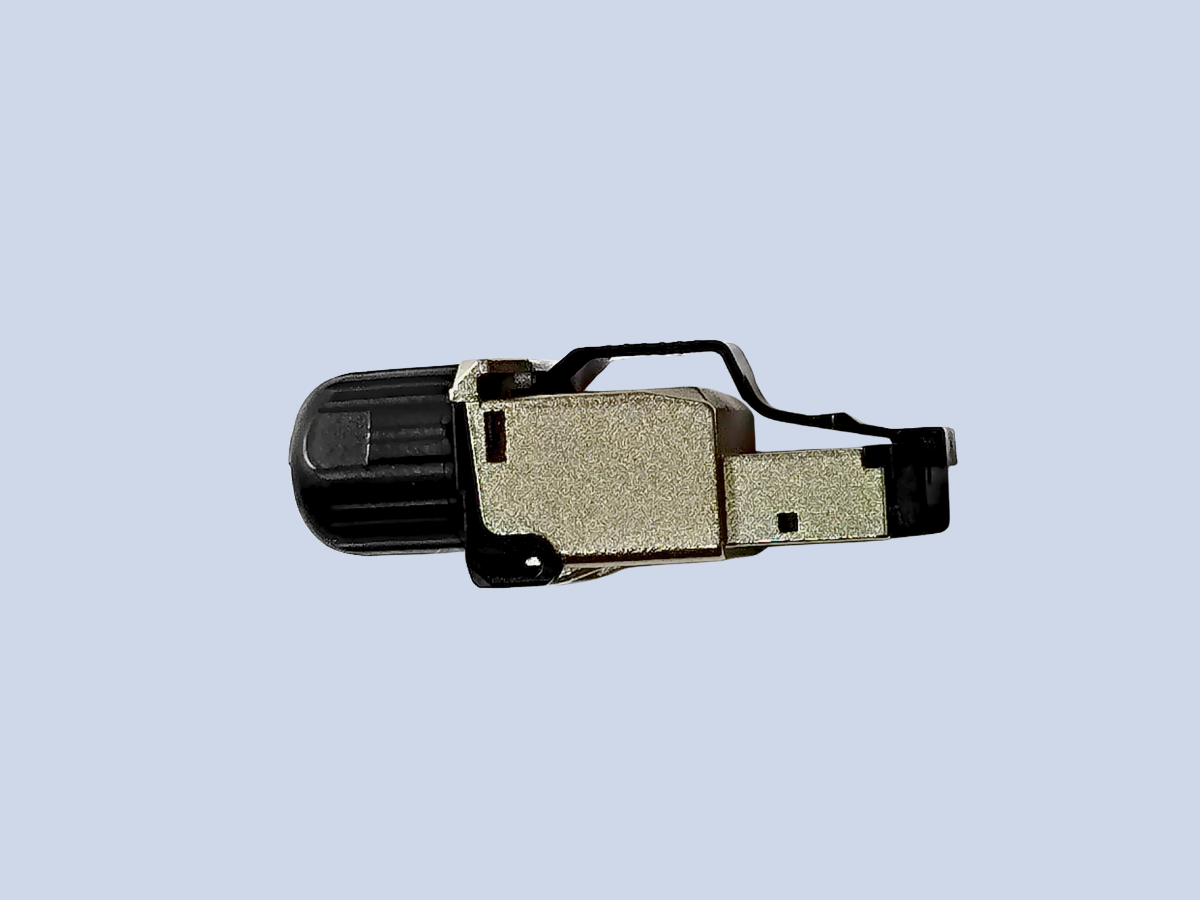

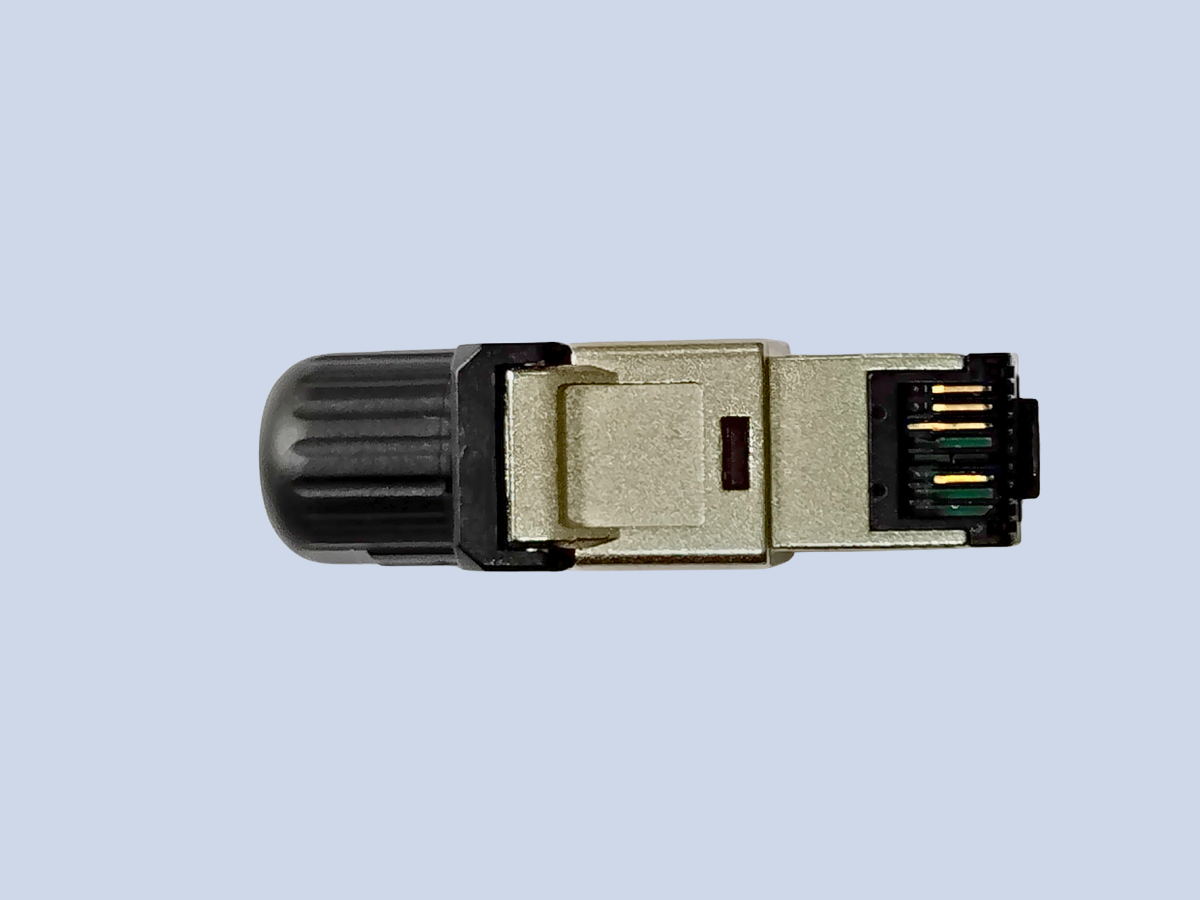

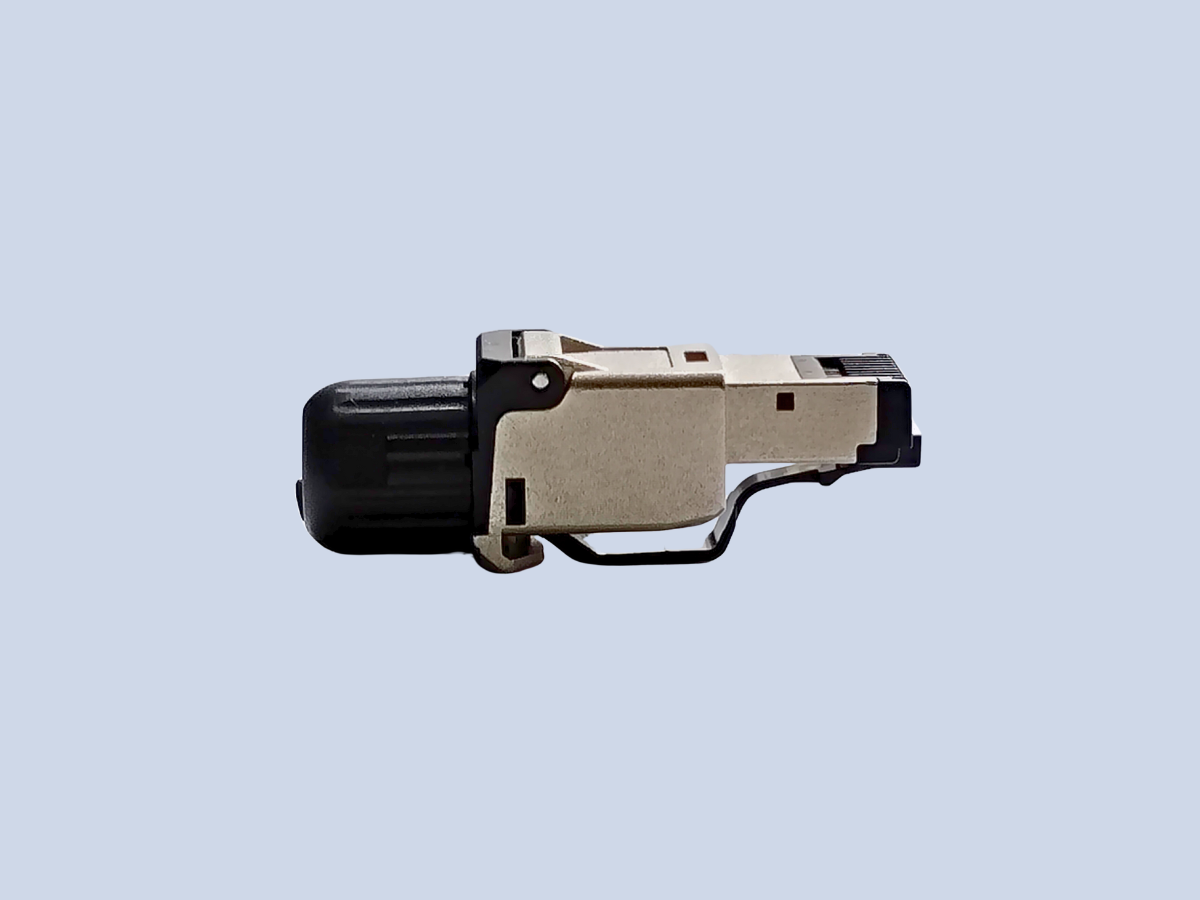

Profinet Field termination Plug

Partcode: 40630-0100

Description: Profinet Field termination Plug

Profinet Field Terminate Plug are designed to terminate Solid or Stranded conductor cable of wire ranging from 22~26AWG. This type of plug design accommodates large diameter cabling in the form factor of a standard RJ45 plug. It features tool-free installation using IDC technology, making it quick and easy to connect or disconnect devices in the field. Profinet FTP exceeds all Category 5e performance requirements to easily support Industrial applications.

Download Data Sheet

Features

  • Complies to ISO/IEC 11801, IEC 60603-7
  • Qualified Screened Class 5e Component
  • PoE rated connector.
  • Toolless design
  • Covered under 3C3® Performance Warranty

Specifications

Housing Material : Diecasting Zinc Alloy

Contact Housing & IDC Holder : Polycarbonate (PC), UL 94V-0

Plug Contact : T=0.35mm phosphor bronze

Compatibility : 22~26AWG Solid & Stranded Wire

Operating Temperature : -40°C to +70°C

Storage Temperature : -40°C to +70°C
