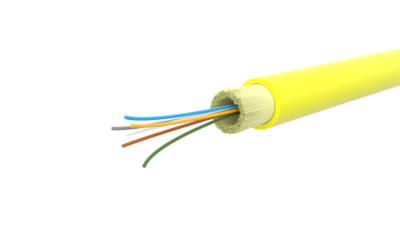

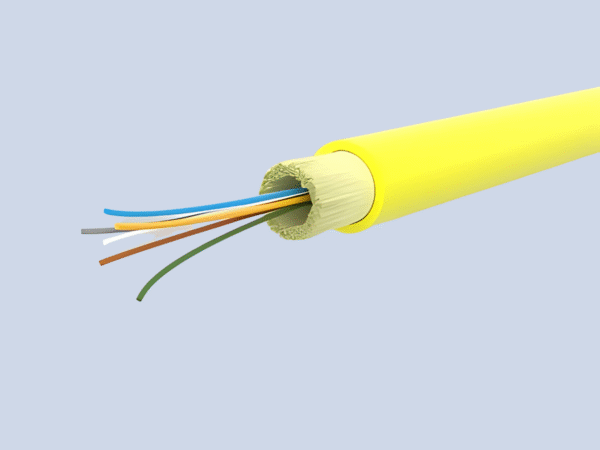

Single Mode Indoor Cable

Part Code: 51005-0XXX

Description: High Link Fiber Optic, Tight Buffered Indoor Cable, FR LSZH, OS2, Xcores

Indoor fiber optic cables are tight buffer design, usually it consists of aramid yarns distributed over- which is used to strength the cable structure and to resist high tension, FR-LSZH outer jacket makes it perfect for indoor applications.

Download Data Sheet

Features

  • Conformance to ANSI/TIA-568.3-D, ITU-T G652.D, Telcordia GR-20, IEC 60794-2
  • Flame retardant LSZH jacket
  • Excellent consistence performance
  • Covered under 3C3® Performance Warranty

Specifications

Fiber Count: 6/12/24

Tight Buffer Material: Flame retardant LSZH

Outer sheath: FRLSZH

Nominal Cable diameter: 6.5±0.5mm

Drum length: 2km ± 5%

Operating Temperature: -40ºC~+70ºC

Storage Temperature: -40ºC~+70ºC
