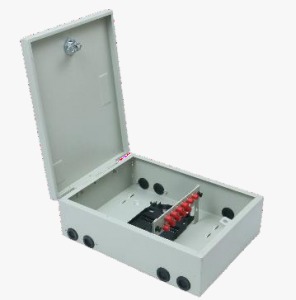

Wall mount Fiber panel 6-24F

Partcode: 61CD5-0XXX

Description: Fiber Panel Wall Mount, Single door, 24F Unloaded

Wall Mount Fiber Optic Patch Panel with lockable system are recommended for secured high density terminations allowing economical interconnection of fibers for indoor or wall space limitations. Loaded panel comes with adaptor plates, splice management and Pigtails.

Download Data Sheet

Features

  • Conformance to ANSI/TIA-568.3-D, Telcordia GR-326-CORE, Telcordia GR-1221-CORE, ISO/IEC 11801, IEC 61754 & IEC 61300 series
  • Space Saving with its compact & small design of enclosure
  • Front door design is easy for operation & Fibers expansion
  • Can Manage both splices and terminations
  • Can include adapter panels for maximum 24 fiber cores of LC/SC/ST/FC terminations
  • Snap-in locker design, easy to change adapter plates for flexible configuration & easy installation
  • 8 Nos of ø20mm cable entries at top and bottom
  • Lockable for added security
  • Dimension (H x W x D): (300 X 230 X 100) mm
  • Color: Light Grey
  • Covered under 3C3® Performance Warranty

Specifications

Panel material: SPCC (Cold rolled steel sheet)

Operating Temperature: -25ºC ~ +70ºC
