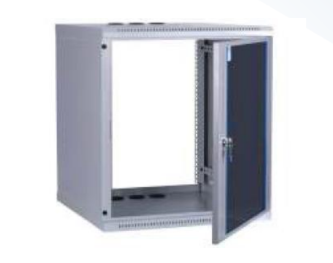

Wall mount Rack

Partcode: 43130-0009

Description: Wall Mount Rack

3C3® offers a versatile range of single section wall mount racks suitable for small secured network requirements. Typical networking equipment like Routers, Switches, Patch panel etc. are well accommodate in the rack. Wall mount racks are the ideal solution where the floor space is limited.

Download Data Sheet

Features

  • Conforms to DIN 41494 and ISO 9001-2015 Standards
  • Rack main body is made up of CRCA Steel (0.8mm -1mm)
  • Adjustable depth mounting slots
  • Available Height options are 6U, 9U, 12U and 15U
  • Available depth options are 400, 450, 500 and 600 mm
  • Adjustable 19” equipment mounting angles with U marking provide better mounting flexibility
  • Top and Bottom panels are with ventilation and cable entry.
  • Provision has been made to mount exhaust fans on the top of the rack for the all models
  • Powder coated finish with Seven Tank pre-treatment process

Specifications

Construction : Welded

Static Load : Up to 35 kgs (6U ~ 15U)”
